Cruise Control Schematics
WARNING:
This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

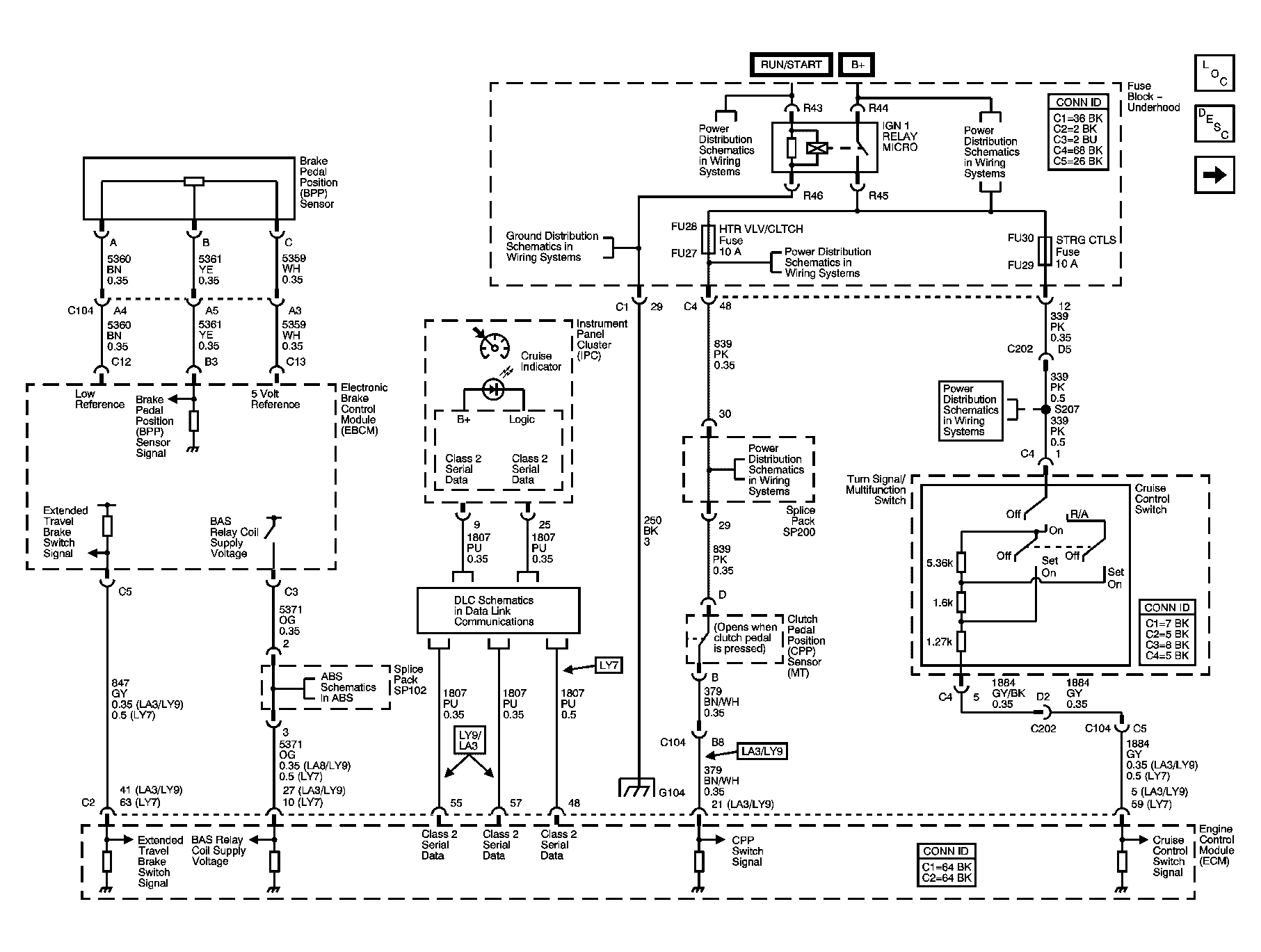

Fig 1: Cruise Control System - 2.6L/3.2L/3.6L (LY9/LA3/LY7)
Courtesy of GENERAL MOTORS CORP.

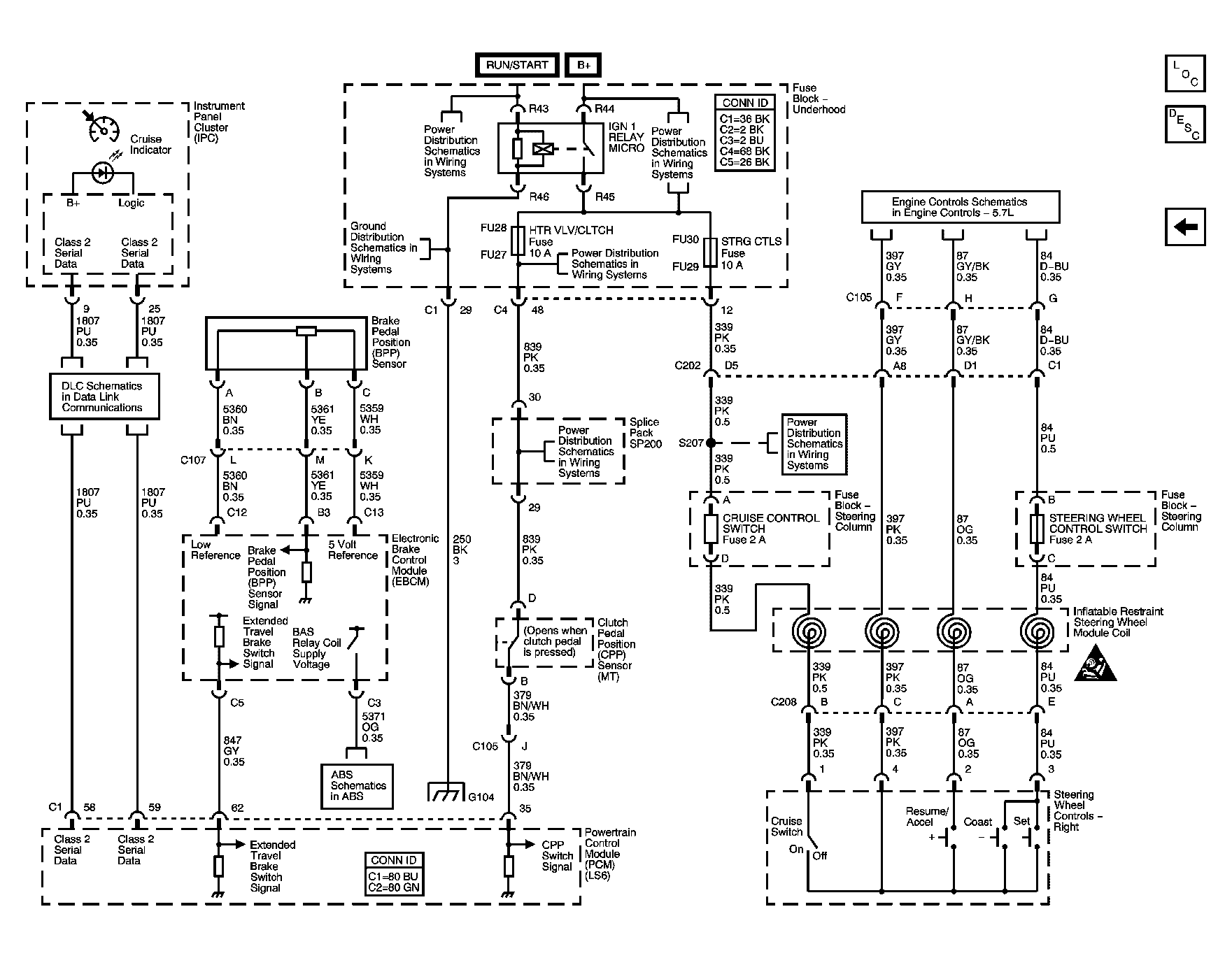

Fig 2: Cruise Control System - 5.7L (LS6)
Courtesy of GENERAL MOTORS CORP.
