Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to Fastener Notice in Cautions and Notices.

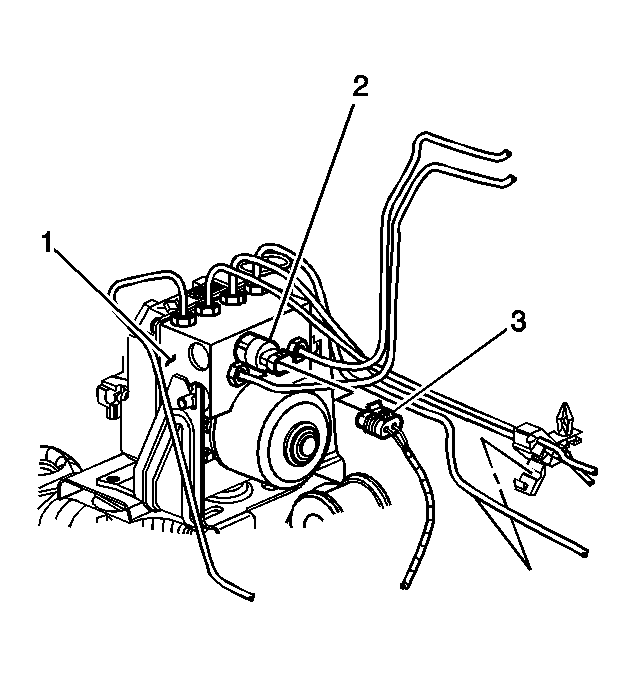

Fig 1: Identifying Electronic Brake Control Module, Brake Fluid Pressure Sensor & Brake Fluid Pressure Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the brake fluid pressure sensor (2) to the EBCM (1).
Tighten: Tighten the brake fluid pressure sensor to 17 N.m (13 lb ft).
Connect the brake fluid pressure sensor electrical connector (3) to the brake fluid pressure sensor (2).
Fill and bleed the hydraulic brake system. Refer to Master Cylinder Reservoir Filling and Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) in Hydraulic Brakes.
Perform the Auto Bleed Procedure. Refer to ABS Automated Bleed Procedure .
Perform the ABS Diagnostic System Check. Refer to Diagnostic System Check - ABS .
