Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Connect the yaw rate sensor/lateral accelerometer sensor electrical connector.

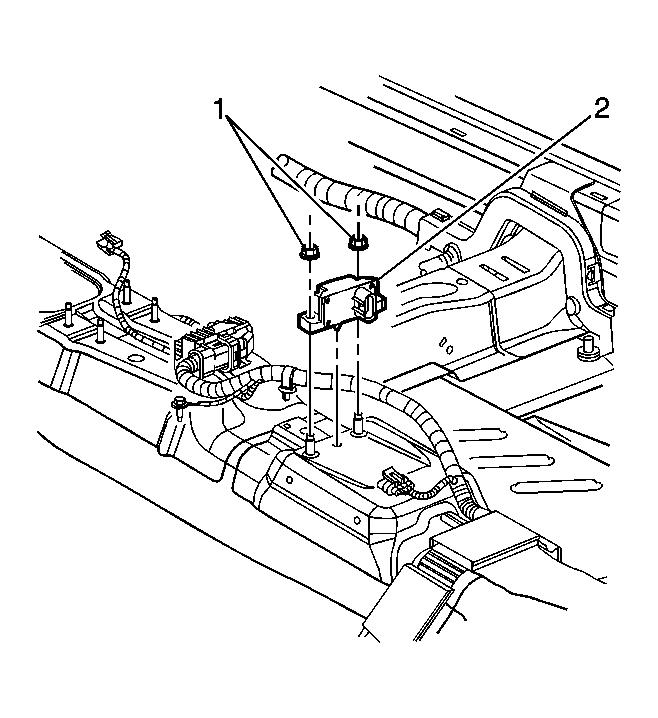

Fig 1: Removing & Installing Yaw Rate Sensor/Lateral Accelerometer

Courtesy of GENERAL MOTORS CORP.

Install the yaw rate sensor/lateral accelerometer sensor (2) to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the yaw rate sensor/lateral accelerometer sensor mounting nuts (1) to the mounting studs.
Tighten: Tighten the yaw rate sensor/lateral accelerometer sensor mounting nuts to 9 N.m (80 lb in).
Install the center console to the vehicle. Refer to Console Replacement - Front Floor in Instrument Panel, Gages, and Console.
Perform the ABS Diagnostic System Check. Refer to Diagnostic System Check - ABS .
