Engine Controls Connector End Views
WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

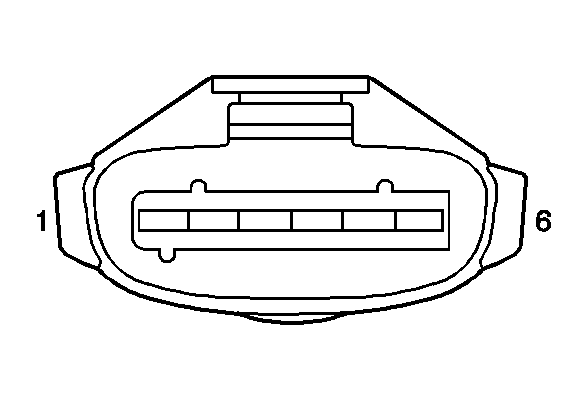

Accelerator Pedal Position (APP) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PU | 1272 | Low Reference |
| B | L-BU | 1162 | APP Sensor 2 Signal |
| C | TN | 1274 | 5-Volt Reference |
| D | BN | 1271 | Low Reference |
| E | D-BU | 1161 | APP Sensor 1 Signal |
| F | WH/BK | 1164 | 5-Volt Reference |

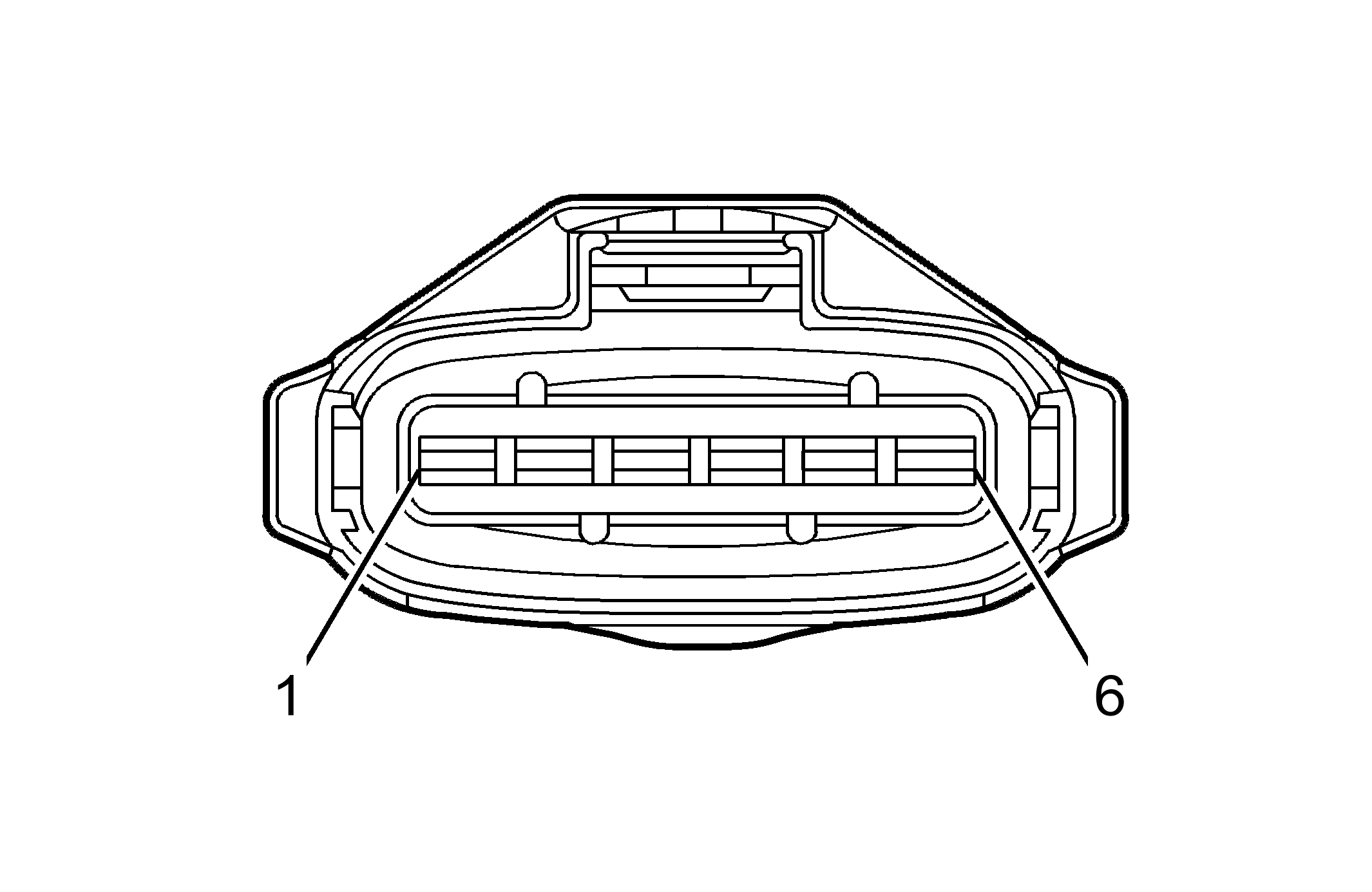

Camshaft Position (CMP) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PK/BK | 632 | Low Reference |
| 2 | BN/WH | 633 | CMP Sensor Signal |
| 3 | PK/BK | 5292 | Ignition 1 Voltage |

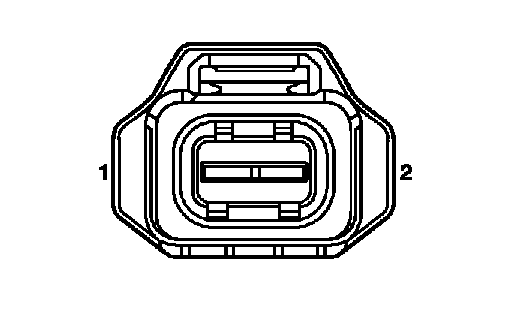

Crankshaft Position (CKP) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | WH/BK | 5039 | CKP Sensor High |
| 2 | PU/WH | 5024 | CKP Sensor Low |
| 3 | BK | 1705 | Shielded Ground |

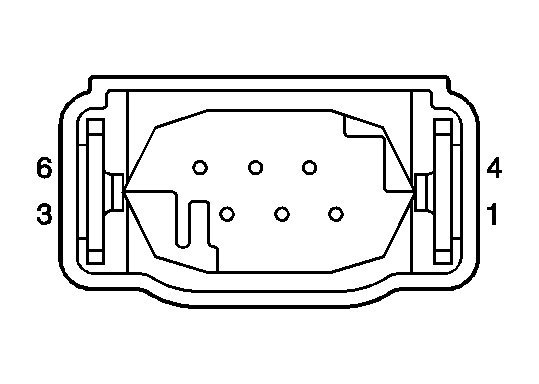

Engine Coolant Temperature (ECT) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | YE | 410 | ECT Sensor Signal |
| 2 | TN | 2761 | Low Reference |

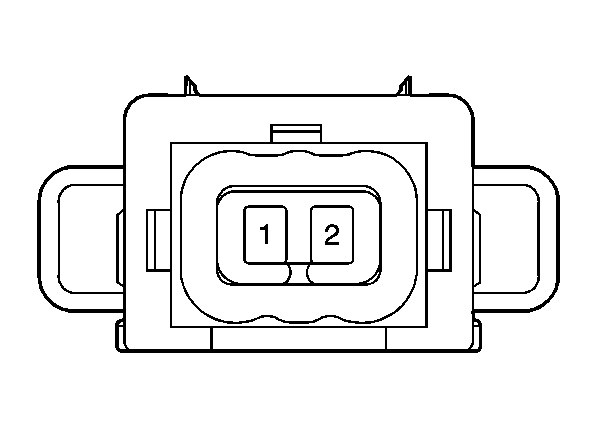

Engine Oil Pressure (EOP) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | TN/BK | 231 | Oil Pressure Switch Signal |

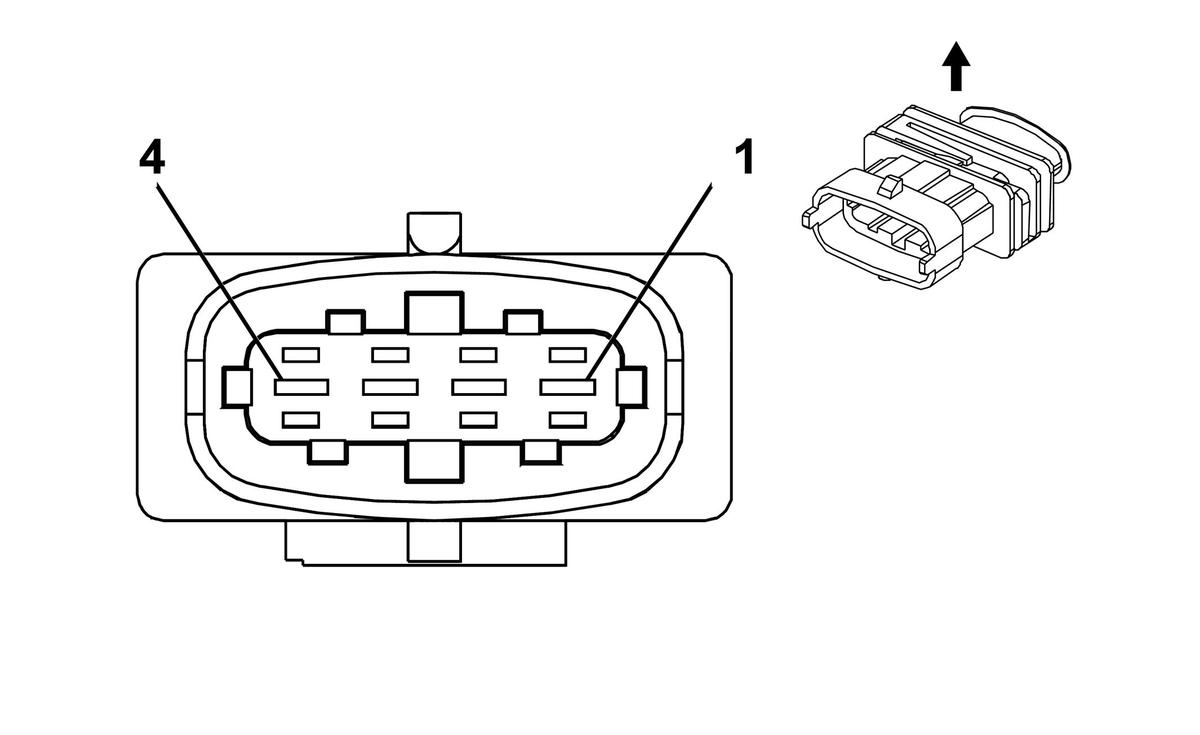

Evaporative Emissions (EVAP) Canister Purge Solenoid Valve Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PK/BK | 5705 | Ignition 1 Voltage |
| 2 | D-GN/WH | 428 | EVAP Canister Purge Solenoid Control |

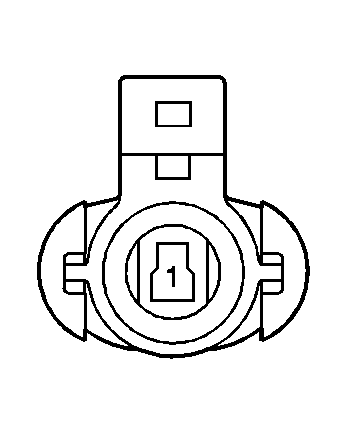

Evaporative Emissions (EVAP) Canister Vent Solenoid Valve Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PK | 1539 | Ignition 1 Voltage |
| B | WH | 1310 | EVAP Canister Vent Solenoid Control |
Fuel Injector 1 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | RD/D-BU | 5291 | Ignition 1 Voltage |
| 2 | TN/YE | 1744 | Fuel Injector 1 Control |
Fuel Injector 2 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | RD/D-BU | 5291 | Ignition 1 Voltage |
| 2 | TN/L-GN | 1745 | Fuel Injector 2 Control |
Fuel Injector 3 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | RD/D-BU | 5291 | Ignition 1 Voltage |
| 2 | TN/D-BU | 1746 | Fuel Injector 3 Control |
Fuel Injector 4 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | RD/D-BU | 5291 | Ignition 1 Voltage |
| 2 | TN/RD | 844 | Fuel Injector 4 Control |
Fuel Injector 5 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | RD/D-BU | 5291 | Ignition 1 Voltage |
| 2 | TN/BK | 845 | Fuel Injector 5 Control |
Fuel Injector 6 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | RD/D-BU | 5291 | Ignition 1 Voltage |
| 2 | TN/WH | 846 | Fuel Injector 6 Control |
Fuel Pump and Sender Assembly Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | L-BU | 1937 | Fuel Level Sensor Signal - Primary |
| B | GY | 120 | Fuel Pump Supply Voltage |
| C | BK | 1050 | Ground |
| D | TN | 2759 | Low Reference |
Fuel Tank Pressure (FTP) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TN | 2759 | Low Reference |
| B | D-GN | 890 | Fuel Tank Pressure Sensor Signal |
| C | GY | 2709 | 5-Volt Reference |
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PK/BK | 5293 | Ignition 1 Voltage |
| 2 | L-BU | 5038 | HO2S Heater Low Control - Bank 1 Sensor 1 |
| 3 | TN/WH | 1653 | HO2S Low Signal - Bank 1 Sensor 1 |
| 4 | PU/WH | 1665 | HO2S High Signal - Bank 1 Sensor 1 |
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PK/BK | 5294 | Ignition 1 Voltage |
| 2 | PU | 5035 | HO2S Heater Low Control - Bank 1 Sensor 2 |
| 3 | TN/WH | 1669 | HO2S Low Signal - Bank 1 Sensor 2 |
| 4 | PU/WH | 1668 | HO2S High Signal - Bank 1 Sensor 2 |
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PK/BK | 5293 | Ignition 1 Voltage |
| 2 | PU/WH | 5037 | HO2S Heater Low Control - Bank 2 Sensor 1 |
| 3 | TN | 1667 | HO2S Low Signal - Bank 2 Sensor 1 |
| 4 | PU | 1666 | HO2S High Signal - Bank 2 Sensor 1 |
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PK/BK | 5294 | Ignition 1 Voltage |
| 2 | YE | 5036 | HO2S Heater Low Control - Bank 2 Sensor 2 |
| 3 | TN | 1671 | HO2S Low Signal - Bank 2 Sensor 2 |
| 4 | PU | 1670 | HO2S High Signal - Bank 2 Sensor 2 |
Ignition Coil Bank 1 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | BK/WH | 1451 | Ground |
| 2 | PK | 739 | Ignition 1 Voltage |
| 3 | D-GN | 2125 | IC 5 Control |
| 4 | L-BU | 2123 | IC 3 Control |
| 5 | PU | 2121 | IC 1 Control |
| 6 | - | - | Not Used |
Ignition Coil Bank 2 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | BK/WH | 1451 | Ground |
| 2 | PK | 739 | Ignition 1 Voltage |
| 3 | OG/WH | 2122 | IC 2 Control |
| 4 | D-GN/WH | 2124 | IC 4 Control |
| 5 | L-BU/WH | 2126 | IC 6 Control |
| 6 | - | - | Not Used |
Intake Manifold Runner Control (IMRC) Solenoid Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | L-BU/WH | 5041 | IMRC Solenoid Control |
| 2 | PK/BK | 5705 | Ignition 1 Voltage |
Intake Manifold Tuning Valve (IMTV) Solenoid
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PU/BK | 5042 | IMTV Solenoid Control |
| 2 | PK/BK | 5705 | Ignition 1 Voltage |
Knock Sensor (KS) Bank 1 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | D-BU | 496 | Knock Sensor 1 Signal |
| 2 | GY | 1716 | Low Reference |
Knock Sensor (KS) Bank 2 Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | L-BU | 1876 | Knock Sensor 2 Signal |
| 2 | TN | 407 | Low Reference |
Mass Air Flow (MAF) Sensor Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | TN | 472 | IAT Sensor Signal |
| 2 | PK/BK | 5705 | Ignition 1 Voltage |
| 3 | TN | 2761 | Low Reference |
| 4 | TN | 2760 | 5-Volt Reference |
| 5 | YE | 492 | MAF Sensor Signal |
Throttle Body Assembly Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | YE | 581 | TAC Motor Control - 1 |
| 2 | TN | 2752 | Low Reference |
| 3 | GY | 2701 | 5-Volt Reference |
| 4 | BN | 582 | TAC Motor Control - 2 |
| 5 | PU | 486 | TP Sensor 2 Signal |
| 6 | D-GN | 485 | TP Sensor 1 Signal |
