Power Seat Systems Component Views

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

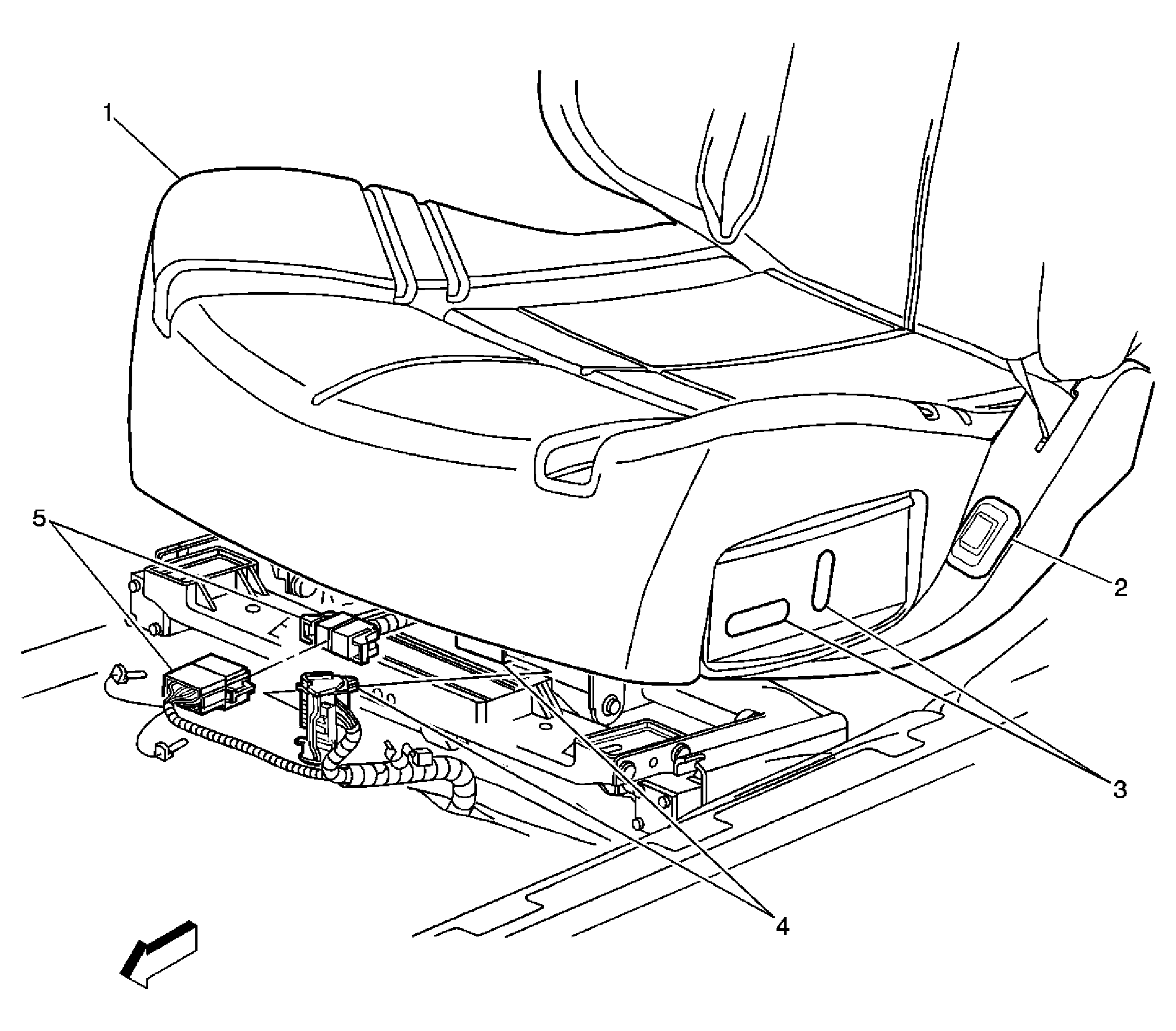

Fig 1: Power Seat Switches and Inline Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Seat Cushion
2	Lumbar Adjuster Switch - Driver (AL2) (Passenger Similar)
3	Seat Adjuster Switch - Driver (Passenger Similar)
4	C300 (C307 Similar)
5	C301 (C306 Similar)

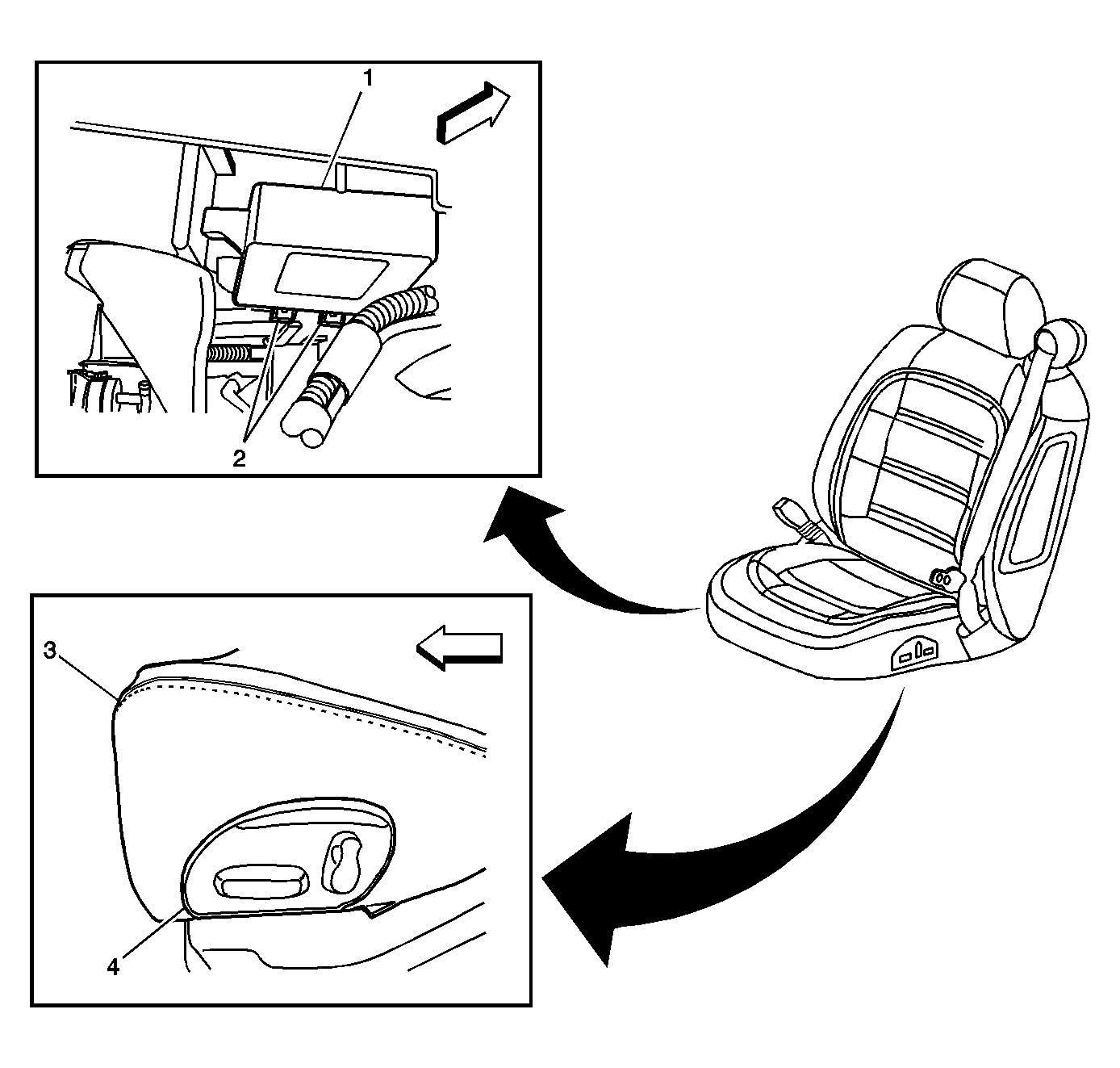

Fig 2: Heated Seat Module and Seat Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Module - Driver (KA1) (Front Passenger Similar)
2	Heated Seat Module Connectors
3	Driver Seat
4	Seat Adjuster Switch - Driver (Front Passenger Similar)

Fig 3: Heated Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Front Passenger Seat Back (Driver Similar)
2	Heated Seat Element - Front Passenger Seat Cushion Front and Rear and Heated Seat Thermistor - Front Passenger (Under Seat Cover) (Driver Similar)
3	Seat Cover, Partially Removed

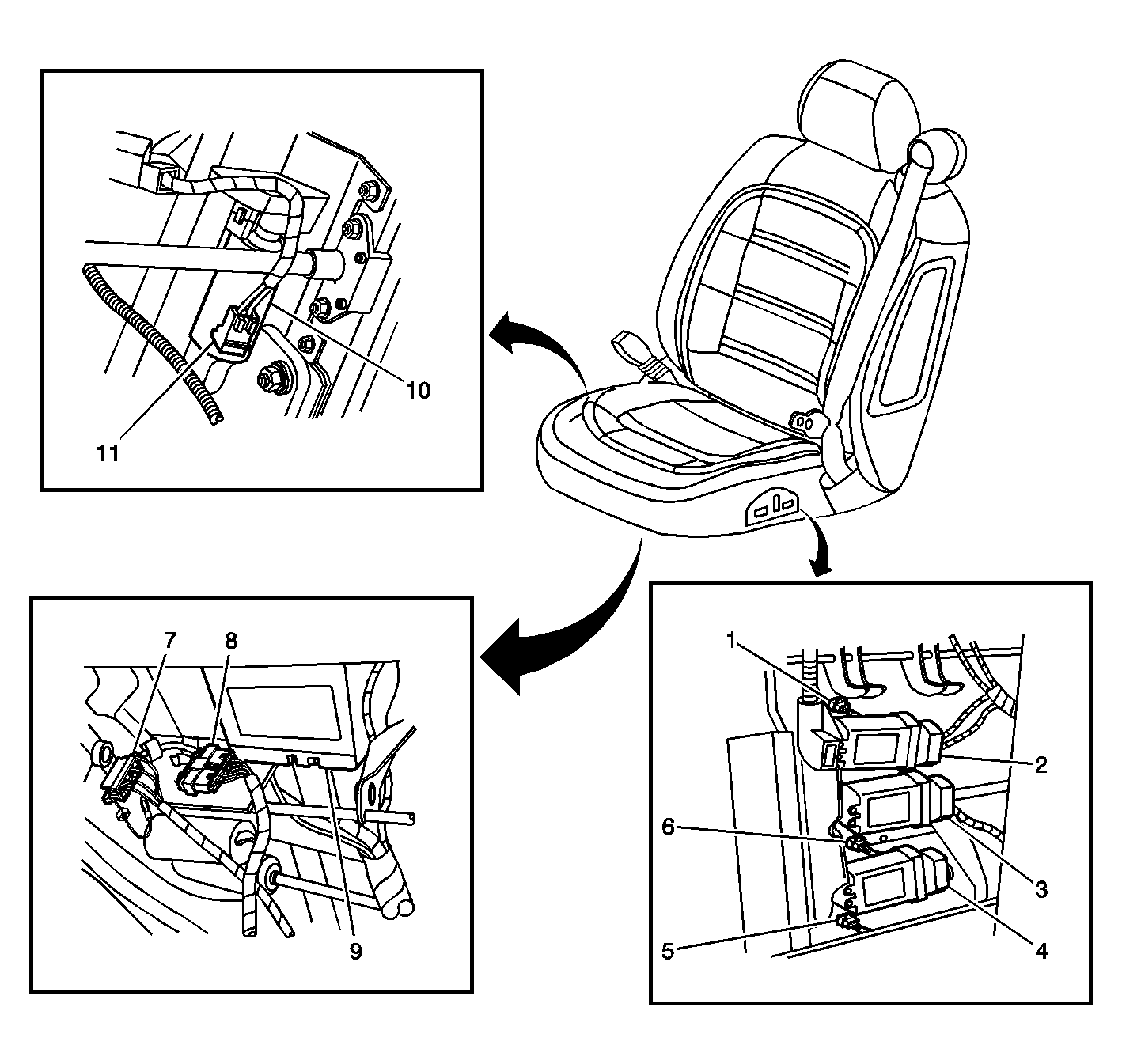

Fig 4: Seat Motors and MSM

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Front Vertical Motor - Driver Connector (Passenger Similar)
2	Seat Front Vertical Motor - Driver (Passenger Similar)
3	Seat Horizontal Motor - Driver, Passenger Similar
4	Seat Rear Vertical Motor - Driver, Passenger Similar
5	Seat Rear Vertical Motor - Driver Connector, Passenger Similar
6	Horizontal Motor Connector - Driver Seat, Passenger Similar
7	C301
8	C300
9	Memory Seat Module (MSM)
10	Seat Recline Motor
11	Seat Recline Motor Connector

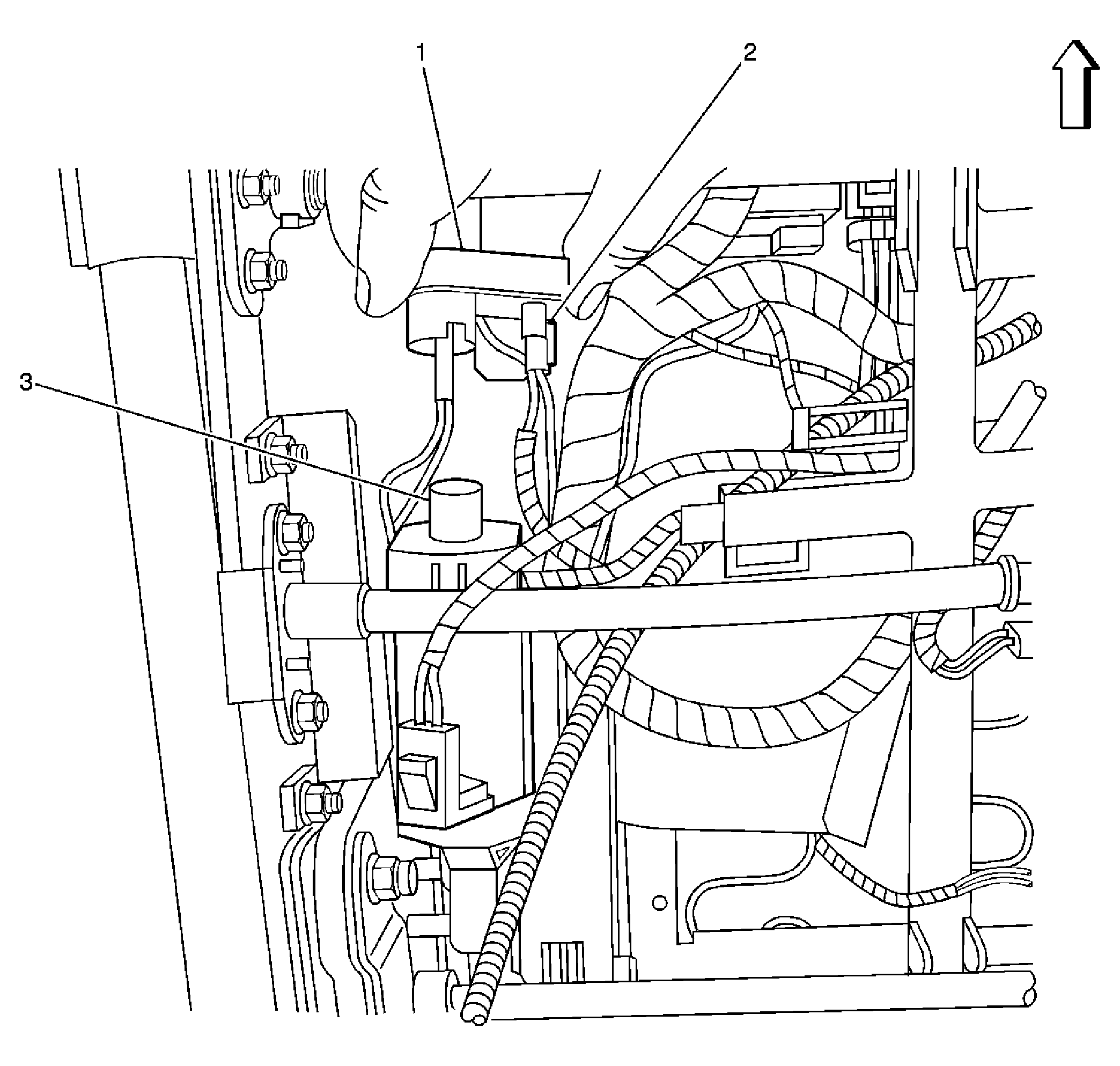

Fig 5: Seat Recline Motor and Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Recline Position Sensor - Driver (w/A45) (Passenger Similar)
2	Seat Recline Position Sensor - Driver Connector (Passenger Similar)
3	Seat Recline Motor - Driver (Passenger Similar)

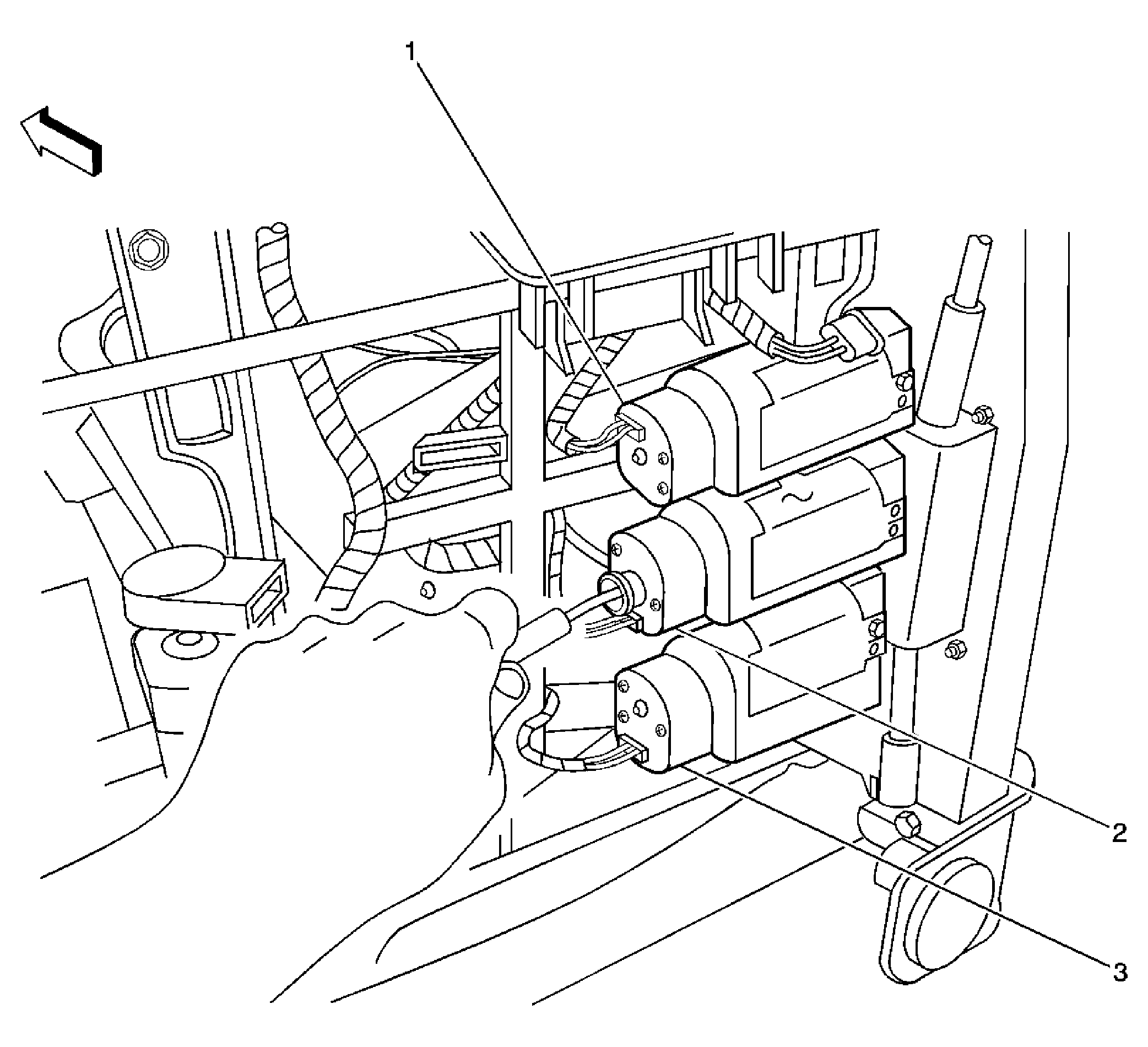

Fig 6: Power Seat Position Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Front Vertical Position Sensor - Driver
2	Seat Horizontal Position Sensor - Driver
3	Seat Rear Vertical Position Sensor - Driver

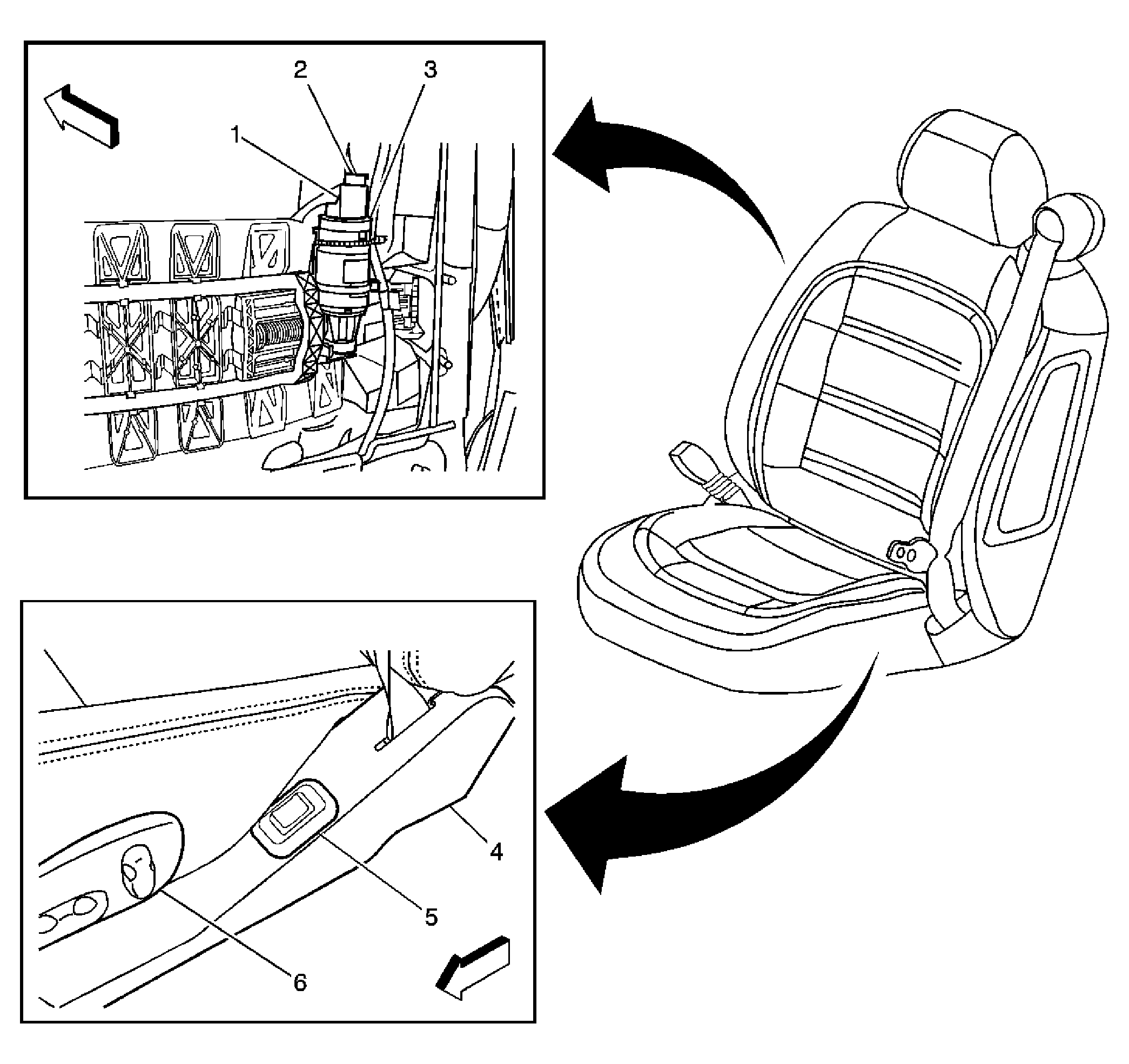

Fig 7: Power Lumbar Components (AL2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lumbar Horizontal Position Sensor - Driver (AL2) (Passenger Similar)
2	Lumbar Horizontal Motor - Driver Connector (Passenger Similar)
3	Lumbar Horizontal Motor - Driver (Passenger Similar)
4	Seat Track Trim Panel (Passenger Similar)
5	Lumbar Adjuster Switch - Driver (Passenger Similar)
6	Seat Adjuster Switch - Driver (Passenger Similar)

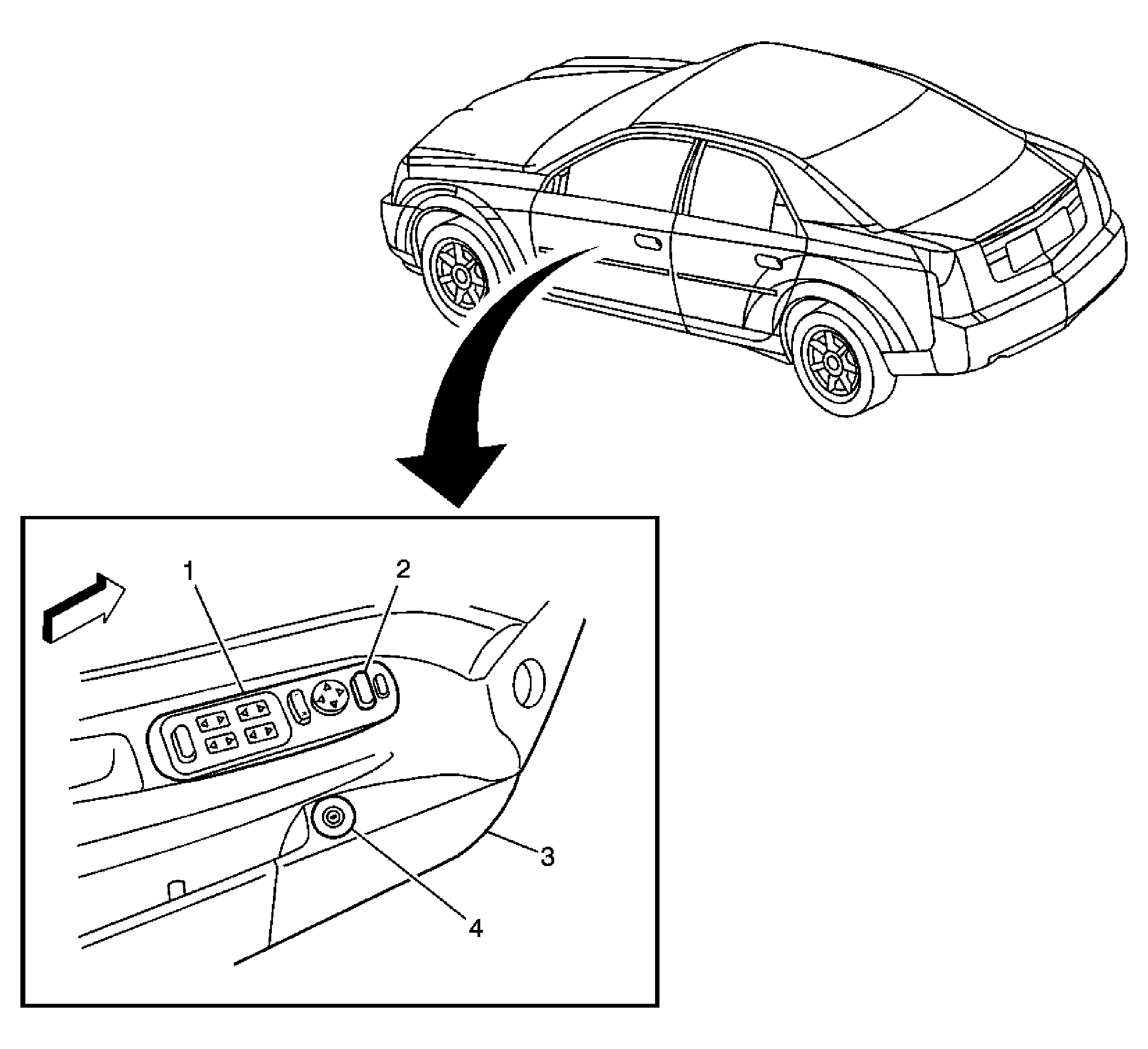

Fig 8: Driver Door Switches

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door Switch Assembly (DDSA) (LHD) (RHD Similar)
2	Seat Memory Switch
3	Front Passenger Door (LHD) (RHD Similar)
4	Rear Compartment Lid Release Switch (LHD) (RHD) Similar
