Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

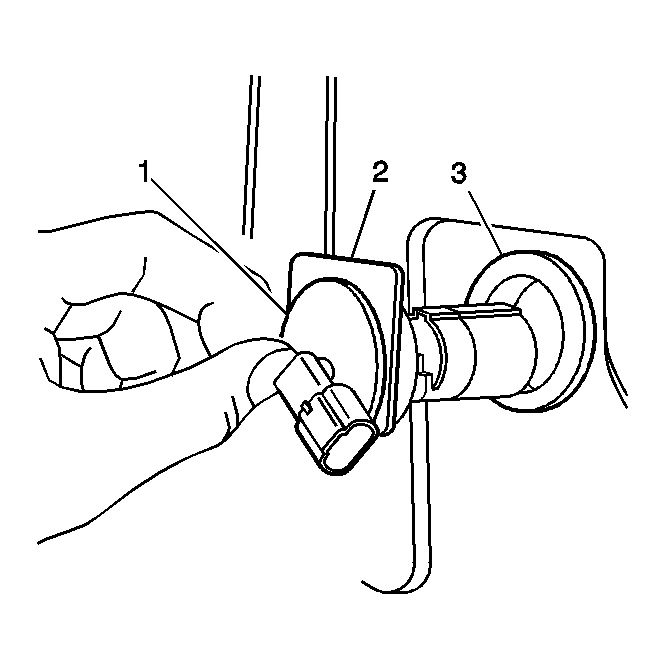

Fig 1: Removing & Installing Washer Solvent Container Level Sensor

Courtesy of GENERAL MOTORS CORP.

Install the new washer solvent level sensor switch grommet (3) into the container.
Install the washer solvent level sensor switch (1) into the washer solvent container.

IMPORTANT: The square side (2) of the level sensor switch must point upward upon installation.

Apply equal inward pressure in order to seat the level sensor switch to the grommet.

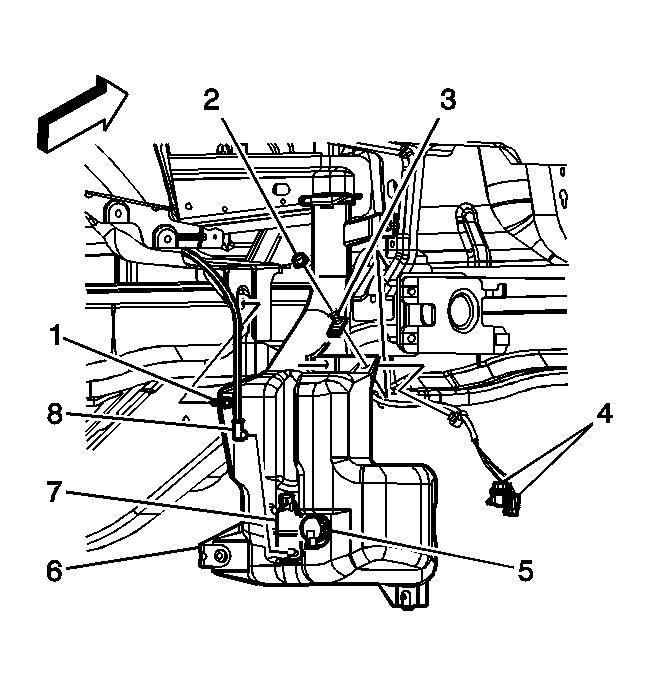

Fig 2: Identifying Washer Solvent Container

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector (4) to the washer solvent level sensor switch.
Install the lower air deflector. Refer to Air Deflector Replacement - Front in Body Front End.
Fill the washer solvent container with washer solvent.
