Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

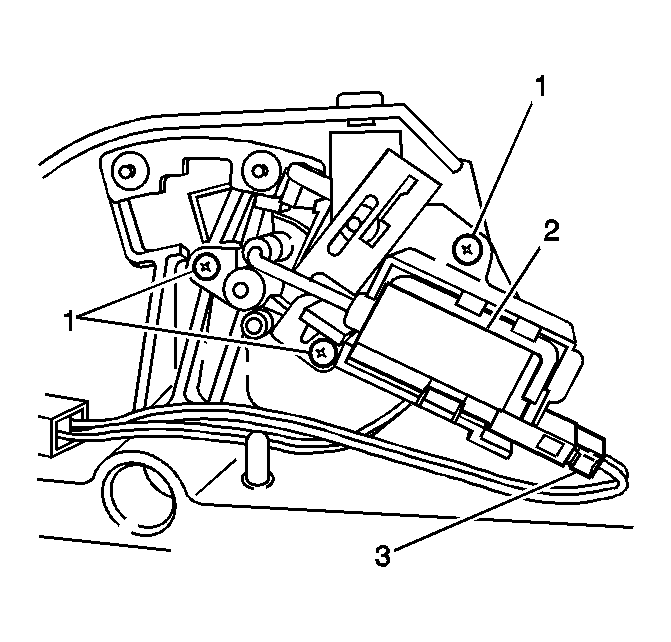

Fig 1: Installing Shift Lock Actuator To Shift Control Assembly

Courtesy of GENERAL MOTORS CORP.

Install the shift lock actuator (2) to the shift control assembly.
Install the three shift lock actuator attaching screws (1).

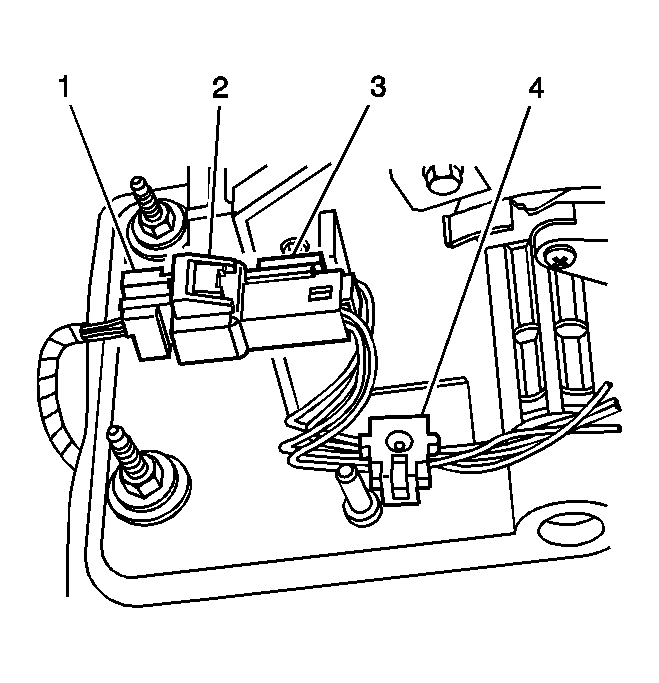

Fig 2: Connecting Wiring Harness Connector

Courtesy of GENERAL MOTORS CORP.

Slide the pigtail connector (2) onto the retainer (3).
Connect the wiring harness connector (1) to the shift lock control pigtail connector (2).
Install the pigtail harness into the wire retainer (4).
Install the center console assembly. Refer to Console Replacement - Front Floor in Instrument Panel, Gages and Console.
Install the shift control boot. Refer to Floor Shift Control Boot Replacement .
