Entertainment Connector End Views

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Bose® Signal Processor Terminal Identification - Coupe

GM73156Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1210088
  • 24-way F Micro-Pack 100 Series (GRY)
Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 BRN/WHT 1999 Left Rear Low Level Audio Signal (-)
A3 BLK 1725 Audio Signal -LH Sub Woofer
A4 LT BLU 1960 Front Center Speaker Output (-)
A5 -A7 - - Not Used
A8 DK GRN 145 Antenna Relay Coil Supply Voltage
A9 YEL 1726 Audio Signal -RH Sub Woofer
A10 - - Not Used
A11 LT GRN 512 Right Front Low Level Audio Signal (+)
A12 ORN 40 Battery Positive Voltage
B1 BLK 1051 Ground
B2 DK GRN 1947 Left Front Low Level Audio Signal (-)
B3 YEL 1860 Front Center Speaker Output (+)
B4 BARE 514 Ground
B5 TAN/BLK 511 Left Front Low Level Audio Signal (+)
B6 BRN 599 Left Rear Low Level Audio Signal (+)
B7 LT GRN/BLK 512 Right Front Low Level Audio Signal (+)
B8 DK BLU 546 Right Rear Low Level Audio Signal (+)
B9 BARE 514 Ground
B10 BLK 1946 Right Rear Low Level Audio Signal (-)
B11 TAN 511 Left Front Low Level Audio Signal (+)
B12 LT GRN 1948 Right Front Low Level Audio Signal (-)
Bose® Signal Processor Terminal Identification -Hardtop/Convertible

GM73156Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110206
  • 24-way F Micro-Pack 100 Series (BLU)
Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 BRN/WHT 1999 Audio Signal -Conditioned -LH Rear
A3 BLK 1725 Audio Signal -LH Sub Woofer
A4 LT BLU 1960 Front Center Speaker Output (-)
A5 -A7 - - Not Used
A8 DK GRN 145 Antenna Relay Coil Supply Voltage
A9 YEL 1726 Audio Signal -RH Sub Woofer
A10 - - Not Used
A11 LT GRN 512 Right Front Low Level Audio Signal (+)
A12 ORN 40 Battery Positive Voltage
B1 BLK 1051 Ground
B2 DK GRN 1947 Left Front Low Level Audio Signal (-)
B3 YEL 1860 Front Center Speaker Output (+)
B4 BARE 514 Ground
B5 TAN/BLK 511 Left Front Low Level Audio Signal (+)
B6 BRN 599 Left Rear Low Level Audio Signal (+)
B7 LT GRN/BLK 512 Right Front Low Level Audio Signal (+)
B8 DK BLU 546 Right Rear Low Level Audio Signal (+)
B9 BARE 514 Ground
B10 BLK 1946 Right Rear Low Level Audio Signal (-)
B11 TAN 511 Left Front Low Level Audio Signal (+)
B12 LT GRN 1948 Right Front Low Level Audio Signal (-)
Front Window Antenna Terminal Identification

GM365953Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092133
  • 1-way F Metri-Pack 630 Series Self Lock (BLK)
Pin Wire Color Circuit No. Function
A BLK - Front Windshield Antenna Signal

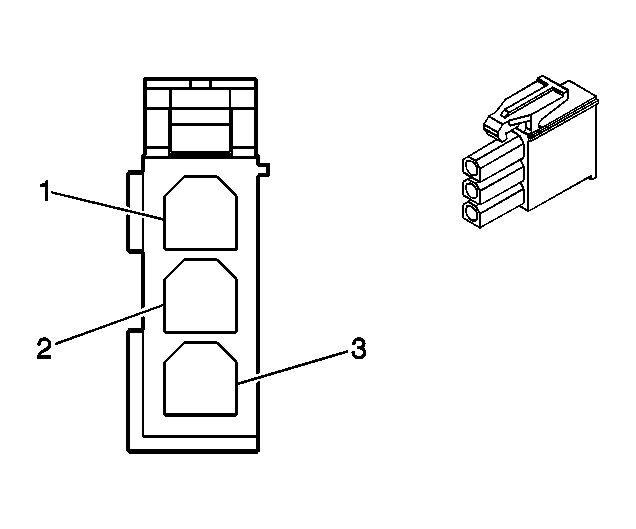

Radio Antenna Module Terminal Identification C1 -Coupe

GM258666Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186246
  • 3-way F Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 DK GRN 145 Antenna Relay Coil Supply Voltage
3 PNK 314 Radio On Signal
Radio Antenna Module Terminal Identification C2 -Coupe

GM1204333Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 10774586
  • 2-way F Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function
1 DK GRN 900 Rear Windshield Antenna Signal
2 DK GRN 900 Rear Windshield Antenna Signal
Radio Terminal Identification C1

GM62435Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047531
  • 10-way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
1 GRY 118 Left Front Speaker Output (-)
2 TAN 201 Left Front Speaker Output (+)
3 DK GRN 117 Right Front Speaker Output (-)
4 LT GRN 200 Right Front Speaker Output (+)
5 BLK/WHT 351 Ground
6 PNK 314 Radio On Signal
7 - - Not Used
8 DK GRN 145 Antenna Relay Coil Supply Voltage
9 - - Not Used
10 ORN 440 Battery Positive Voltage

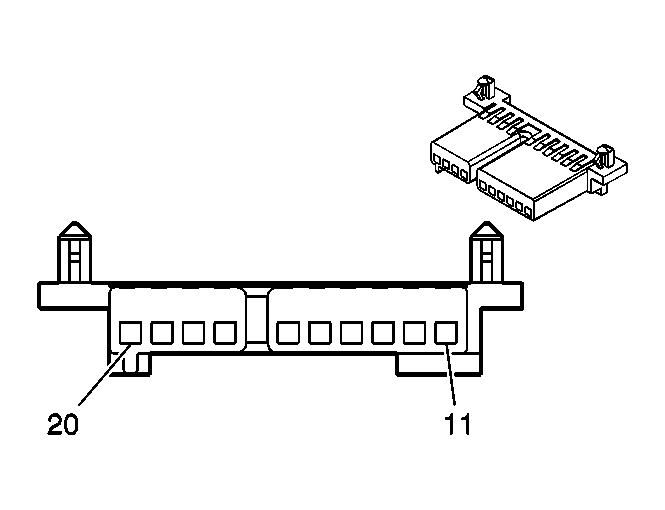

Radio Terminal Identification C2

GM62477Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065785
  • 10-way F Micro-Pack 100 Series (GRY)
Pin Wire Color Circuit No. Function
11 BRN/WHT 367 Remote Radio Left Audio Signal With UZ6
12 DK GRN/WHT 368 Remote Radio Right Audio Signal With UZ6
13 BLK/WHT 372 Remote Radio Audio Output (-) With UZ6
14 - - Not Used
15 DK GRN 835 Entertainment and Comfort Serial Data
16 ORN 1044 Radio Class 2 Serial Data
17 LT BLU 115 Right Rear Speaker Output (-)
18 DK BLU 46 Right Rear Speaker Output (+)
19 YEL 116 Left Rear Speaker Output (-)
20 BRN 199 Left Rear Speaker Output (+)

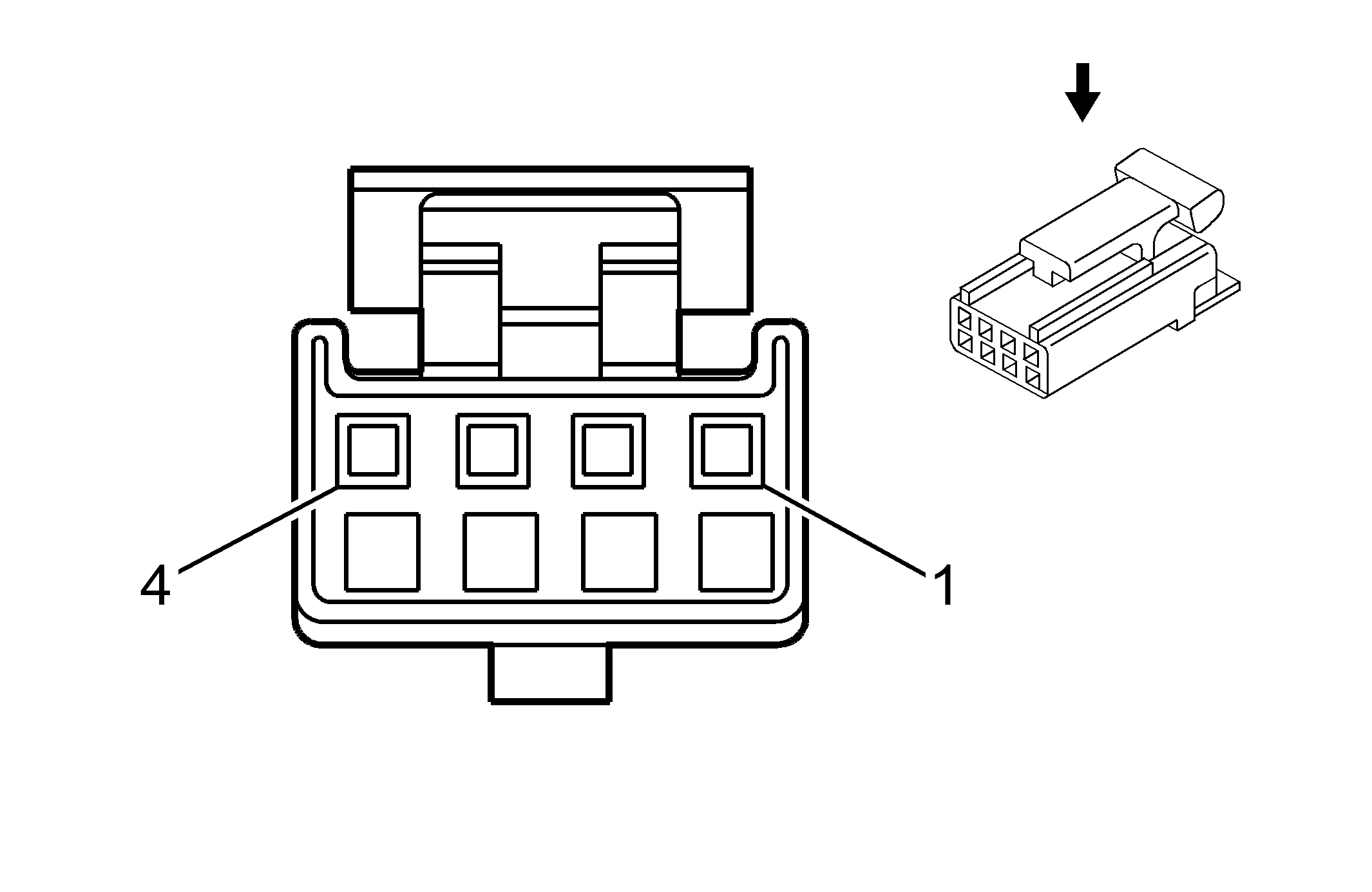

Radio Terminal Identification C3

GM535620Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12066189
  • 4-way F Micro-Pack 100 Series (NAT)
Pin Wire Color Circuit No. Function
1 DK GRN 1947 Left Front Low Level Audio Signal (-)
2 LT GRN 1948 Right Front Low Level Audio Signal (-)
3 BRN/WHT 1999 Left Rear Low Level Audio Signal (-)
4 BLK 1946 Right Rear Low Level Audio Signal (-)

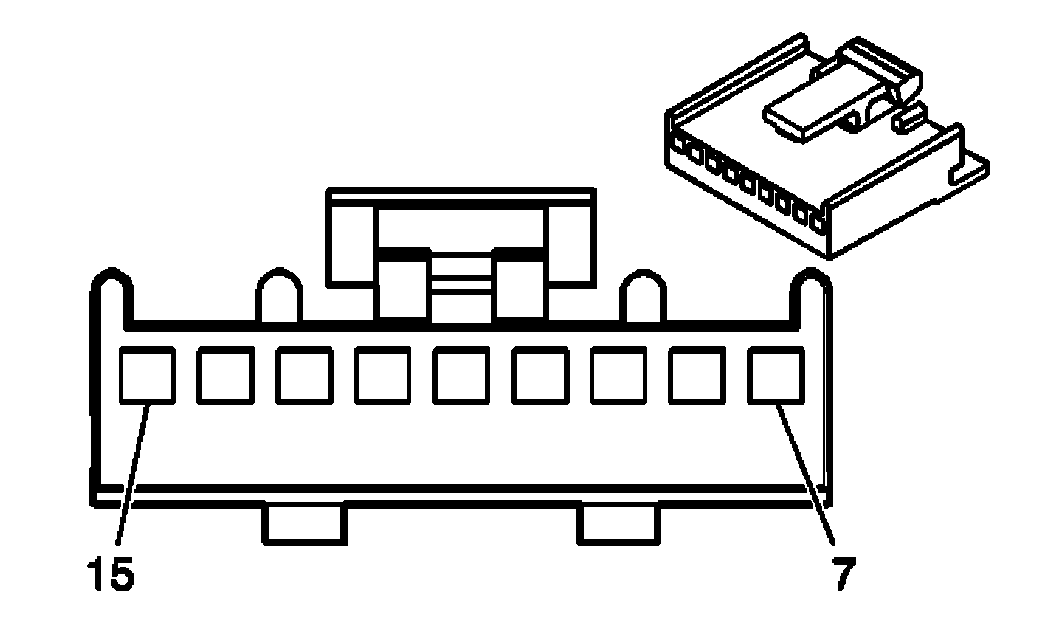

Radio Terminal Identification C4

GM62467Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12066130
  • 9-way F Micro-Pack 100 Series (NAT)
Pin Wire Color Circuit No. Function
7 YEL 1860 Front Center Speaker Output (+)
8 BARE 2011 Drain Wire
9 TAN/BLK 511 Left Front Low Level Audio Signal (+)
10 LT GRN/BLK 512 Right Front Low Level Audio Signal (+)
11 BRN 599 Left Rear Low Level Audio Signal (+)
12 DK BLU 546 Right Rear Low Level Audio Signal (+)
13 LT BLU 1960 Front Center Speaker Output (-)
14 BARE 2012 Drain Wire
15 BLK 1051 Ground
Radio Power Antenna Terminal Identification -Convertible

GM287973Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047782
  • 3-way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 40 Battery Positive Voltage
B DK GRN 145 Antenna Relay Coil Supply Voltage
C BLK 150 Ground
Remote Playback Device Terminal Identification -CD Changer

GM62435Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047531
  • 10-way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
1 BRN/WHT 367 Remote Radio Left Audio Signal
2 DK GRN/WHT 368 Remote Radio Right Audio Signal
3 BLK/WHT 372 Remote Radio Audio Output (-)
4 BARE 514 Ground
5 ORN 440 Battery Positive Voltage
6 - - Not Used
7 BLK/WHT 351 Ground
8 -9 - - Not Used
10 DK GRN 835 Entertainment and Comfort Serial Data
Remote Playback Device Terminal Identification - CD Changer - Dealer Installed

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 440 Battery Positive Voltage
B DK GRN 835 Entertainment and Comfort Serial Data
C BLK/WHT 351 Ground
Speaker Terminal Identification -LF Door

GM62439Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065398
  • 8-way F Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function
A ORN 360 Speaker Supply Voltage
B BLK/WHT 351 Ground
C BLK 1725 Audio Signal -LH Sub Woofer
D TAN 201 Battery Positive Voltage
E GRY 118 Left Front Speaker Output (-)
F TAN 511 Left Front Low Level Audio Signal (+)
G BLK/WHT 351 Ground
H ORN 360 Speaker Supply Voltage
Speaker Terminal Identification - LR

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A YEL 116 Left Rear Speaker Output (-)
B BRN 199 Rear Speaker Output (+)
Speaker Terminal Identification - RF Door

GM62439Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065398
  • 8-Way F Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function
A ORN 360 Speaker Supply Voltage
B BLK/WHT 351 Ground
C ORN/BLK 1726 Audio Signal -RH Sub Woofer
D LT GRN 200 Right Front Speaker Output (+)
E DK GRN 117 Right Front Speaker Output (-)
F LT GRN 512 Right Front Low Level Audio Signal (+)
G BLK/WHT 351 Ground
H ORN 360 Speaker Supply Voltage
Speaker Terminal Identification - RR

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A LT BLU 115 Right Rear Speaker Output (-)
B DK BLU 46 Right Rear Speaker Output (+)
