Inserting Magazine

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Slide the door on the remote CD changer open completely until it locks with a click.

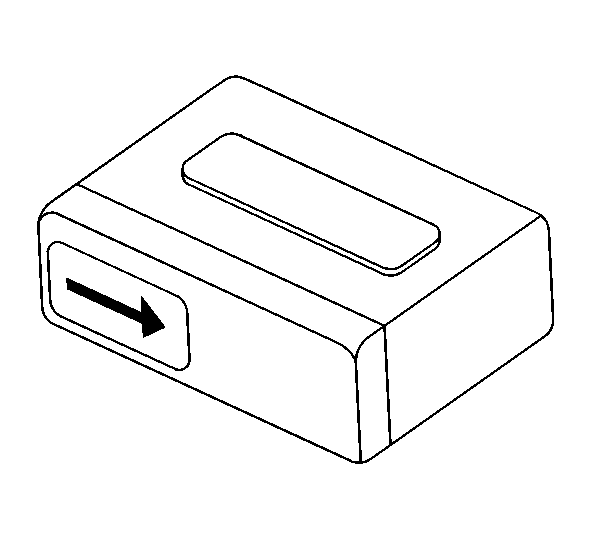

Fig 1: Sliding Door On Remote CD Changer To Lock
Courtesy of GENERAL MOTORS CORP.

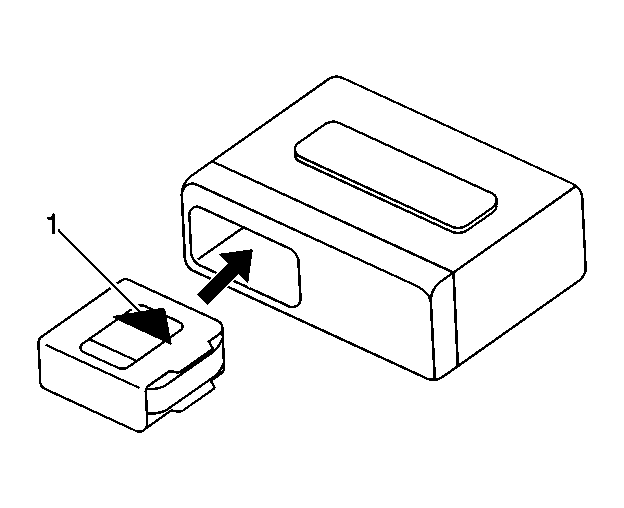

Fig 2: Inserting The CD Changer In The Player

Courtesy of GENERAL MOTORS CORP.

IMPORTANT:

You must load the magazine with discs before inserting into player.
You must insert the magazine in the direction of the arrow (1). Be sure the arrow (1) is facing upward.
Completely remove the label on the magazine if it is coming off or if it is wrinkled. A damaged label may in -turn damage the eject mechanism. The eject mechanism may not eject the magazine.

Insert the magazine into the player in the direction of the arrow (1) on top of the magazine.

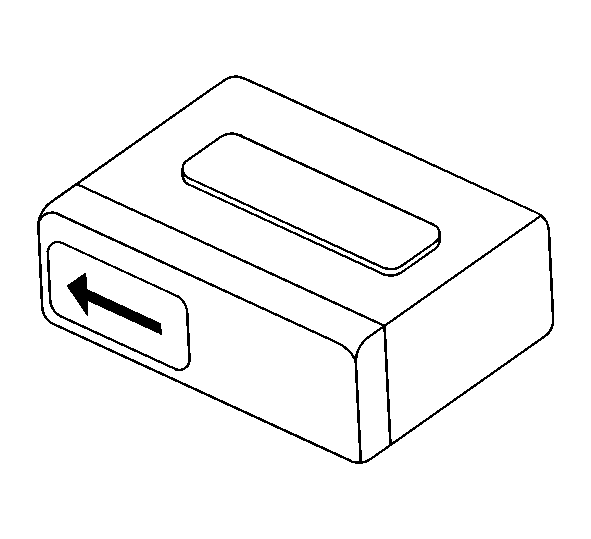

Fig 3: Sliding Door To Lock It In Place

Courtesy of GENERAL MOTORS CORP.

Slide the door all the way to the left to close. The player begins checking for discs in the magazine once the door is closed. This continues for up to 1 -1/2 minutes depending on the number of discs loaded.

An error will occur and the changer will not operate if the door is left partially open.

To eject the magazine from the changer, refer to Radio/Audio System Operation - Compact Disc Player.
