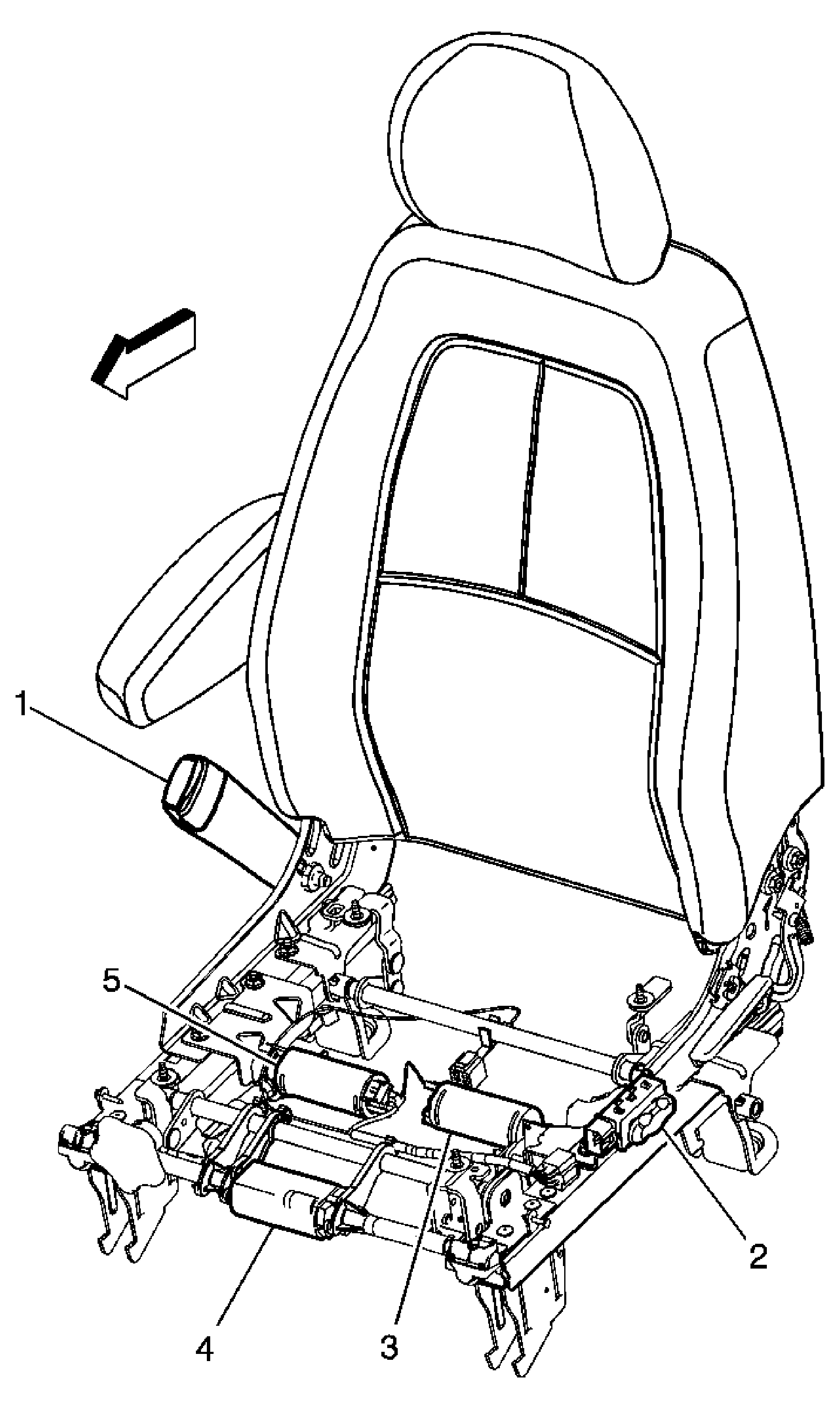

Power Seat Component Views
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Seat Belt Switch - Driver |
| 2 |
Seat Adjuster Switch - Driver |
| 3 |
Seat Recline Motor - Driver |
| 4 |
Seat Horizontal Motor - Driver |
| 5 |
Seat Vertical Motor - Driver |
