Automatic Transmission Output Shaft Speed (AT OSS) Sensor Connector End View

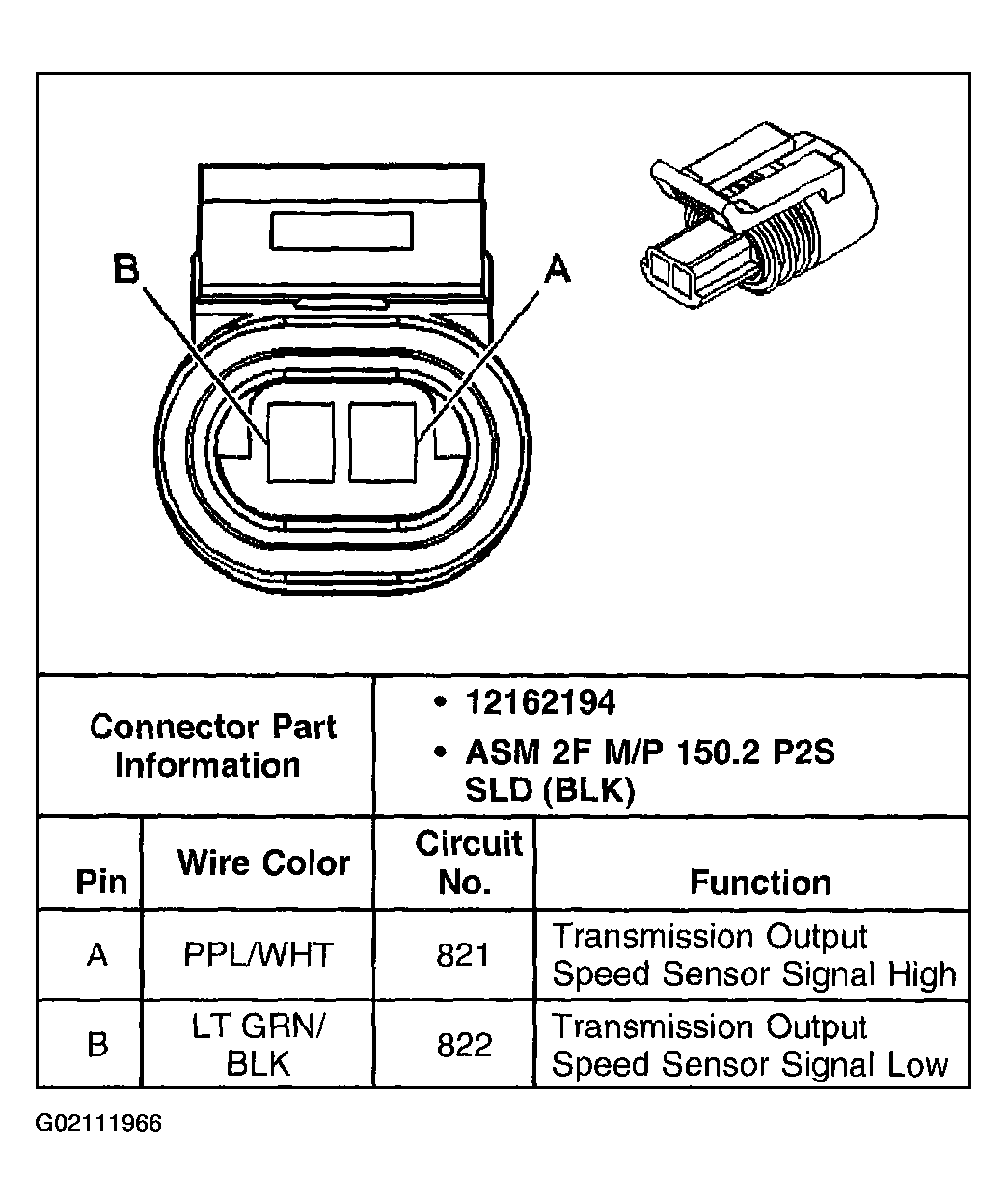

Fig 1: Automatic Transmission Output Shaft Speed (AT OSS) Sensor Connector End View
G02111966Courtesy of GENERAL MOTORS CORP.
