Camshaft Position (CMP) Sensor Connector End View

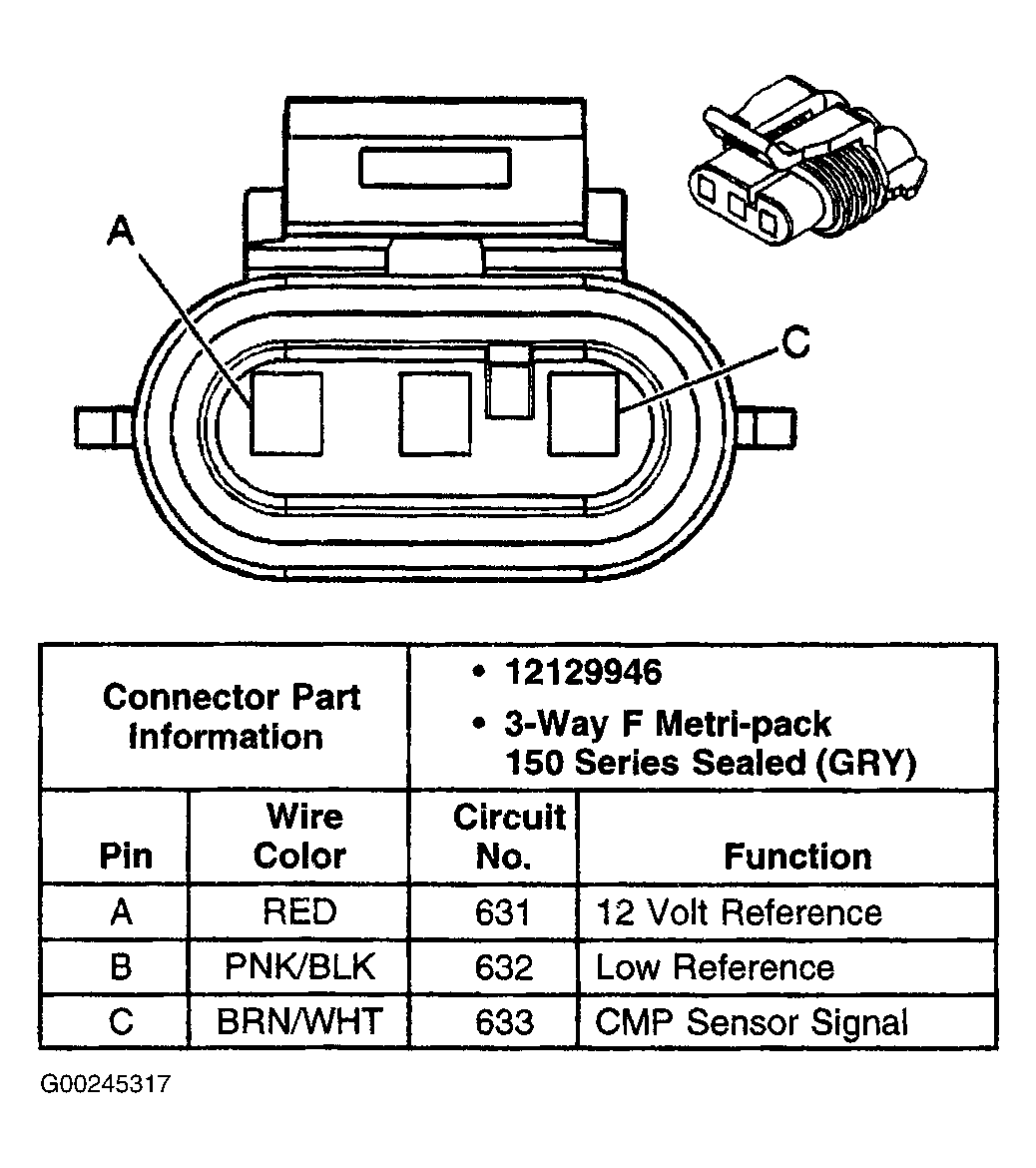

Fig 1: Camshaft Position (CMP) Sensor Connector End View
G00245317Courtesy of GENERAL MOTORS CORP.
