Engine Coolant Temperature (ECT) Sensor Connector End View

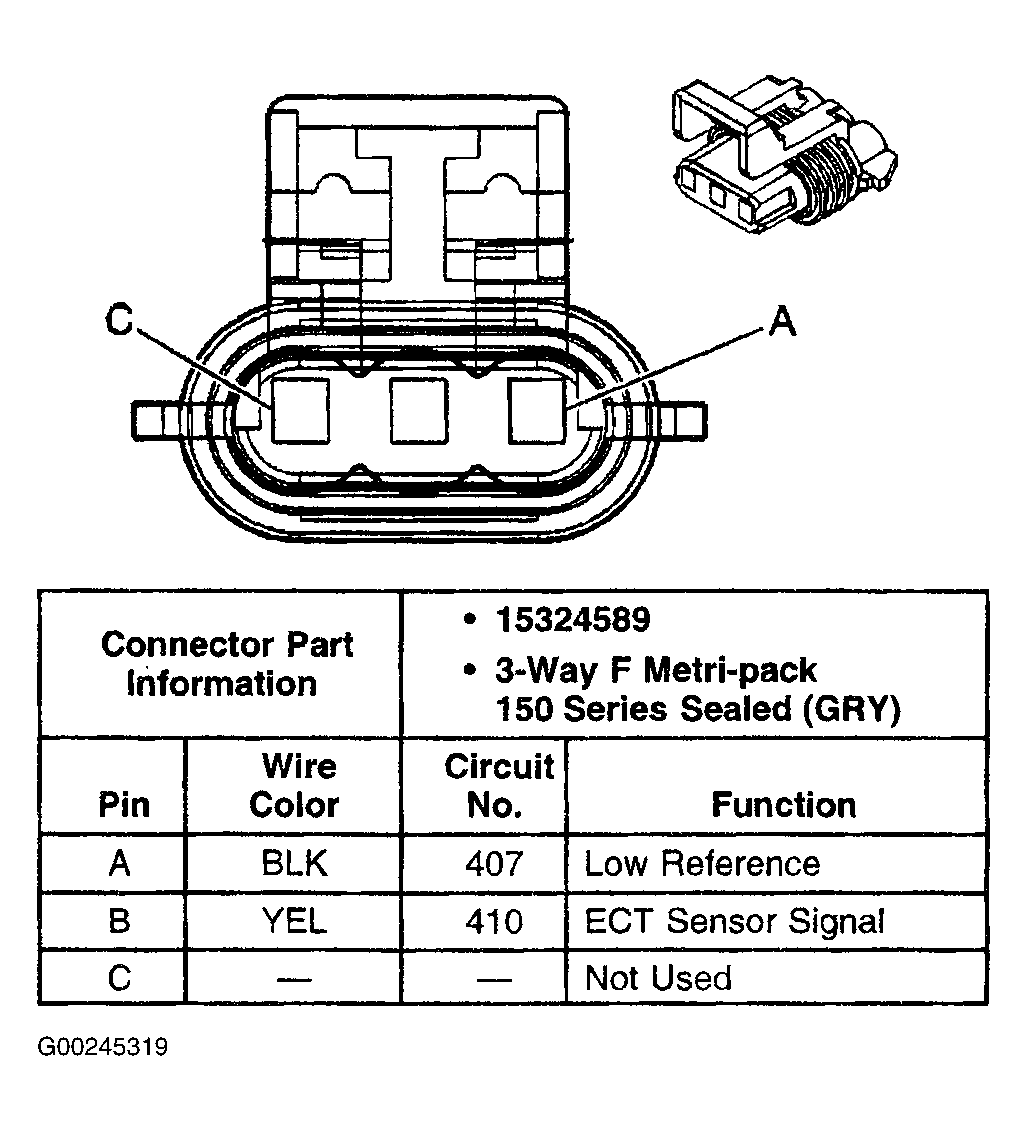

Fig 1: Engine Coolant Temperature (ECT) Sensor Connector End View
G00245319Courtesy of GENERAL MOTORS CORP.


Fig 1: Engine Coolant Temperature (ECT) Sensor Connector End View
G02117630Courtesy of GENERAL MOTORS CORP.
