Front Passenger Door Module (Heated Seat Switch - Front Passenger) Connector End View

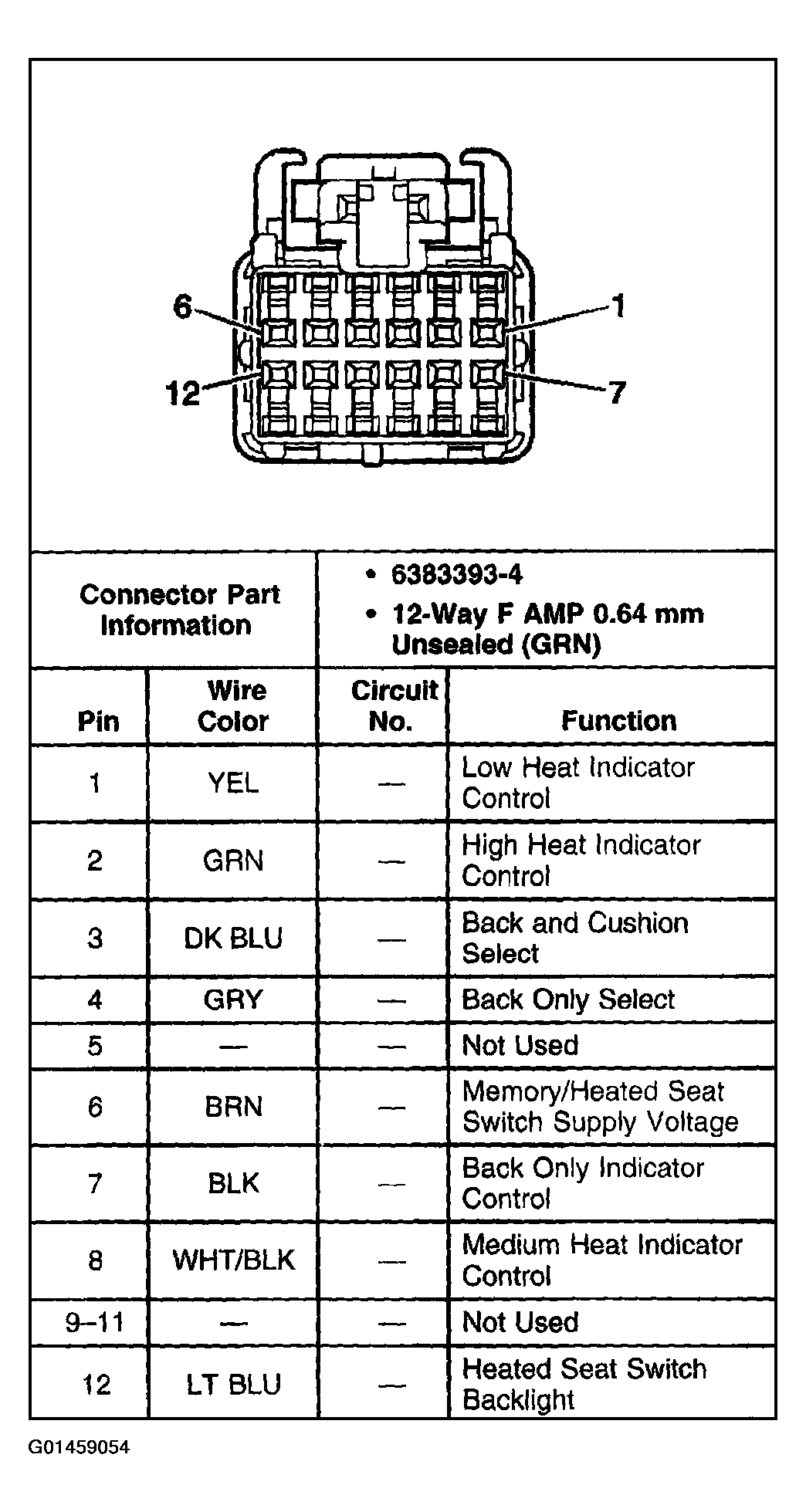

Fig 1: Front Passenger Door Module (Heated Seat Switch - Front Passenger) Connector End View
G01459054Courtesy of GENERAL MOTORS CORP.
