Fuel Injector 2 Connector End View

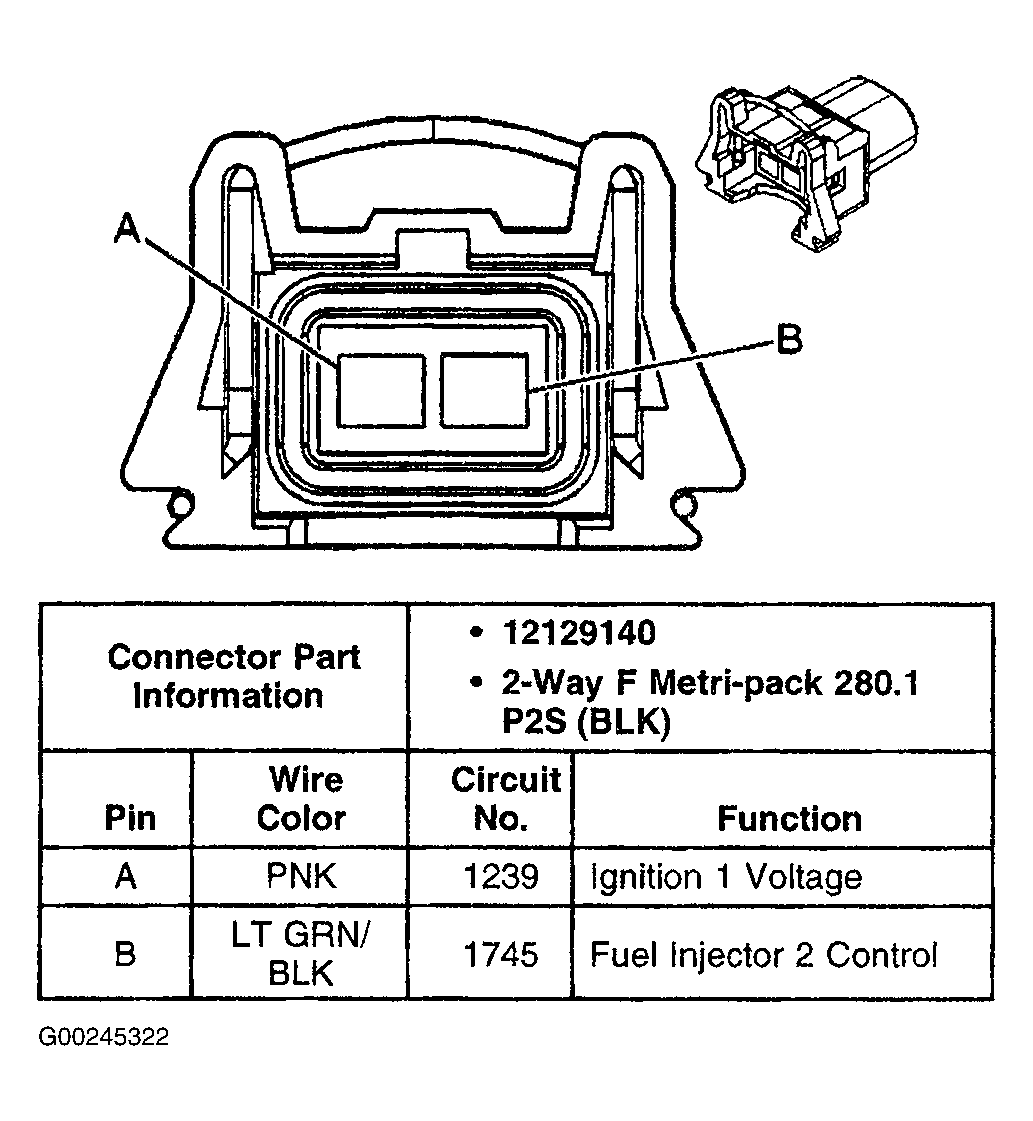

Fig 1: Fuel Injector 2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
