Fuel Pump & Sender Assembly Connector End View - Primary

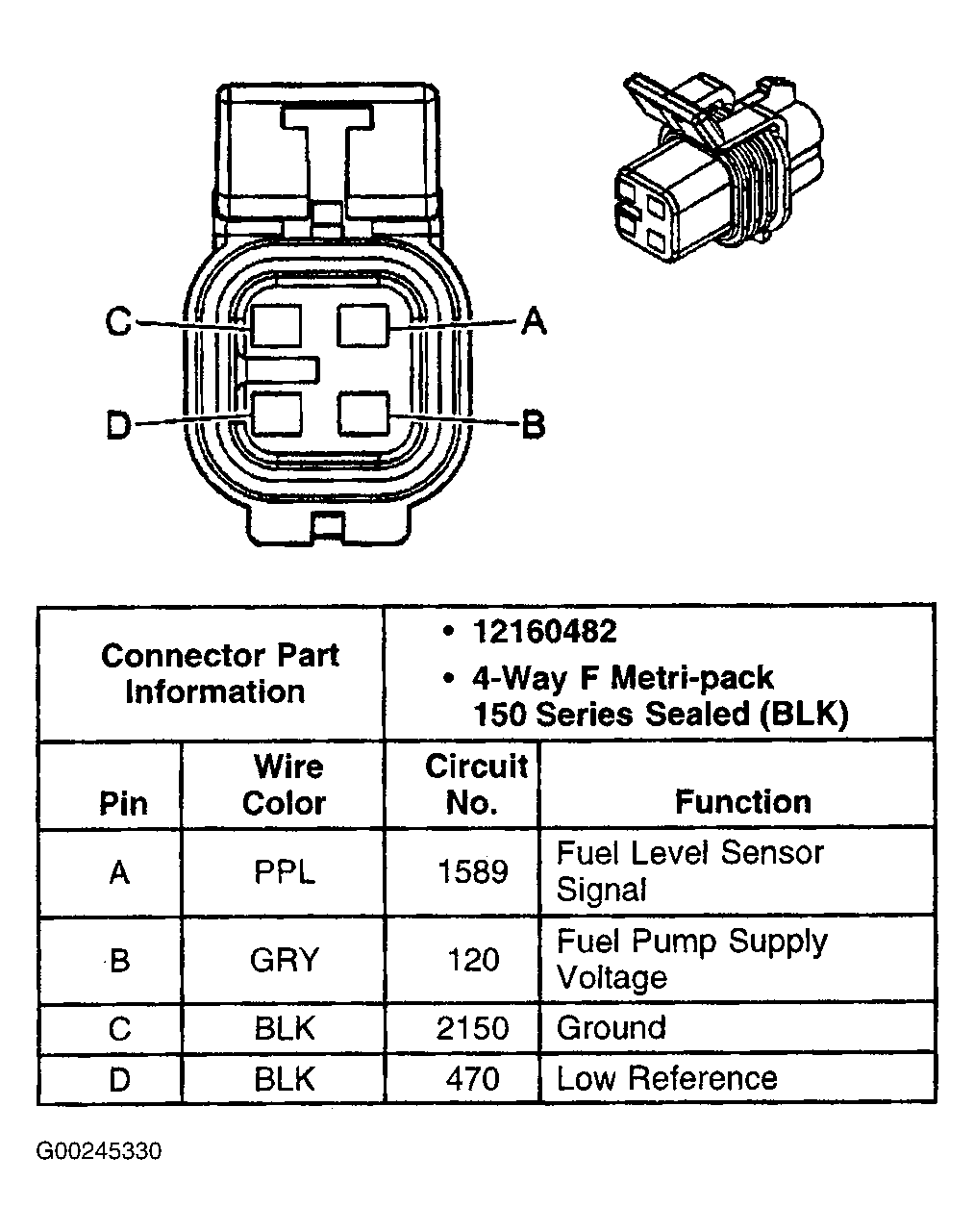

Fig 1: Fuel Pump & Sender Assembly Connector End View - Primary
G00245330Courtesy of GENERAL MOTORS CORP.
