Seat Front Vertical Motor Position Sensor - Driver Connector End View

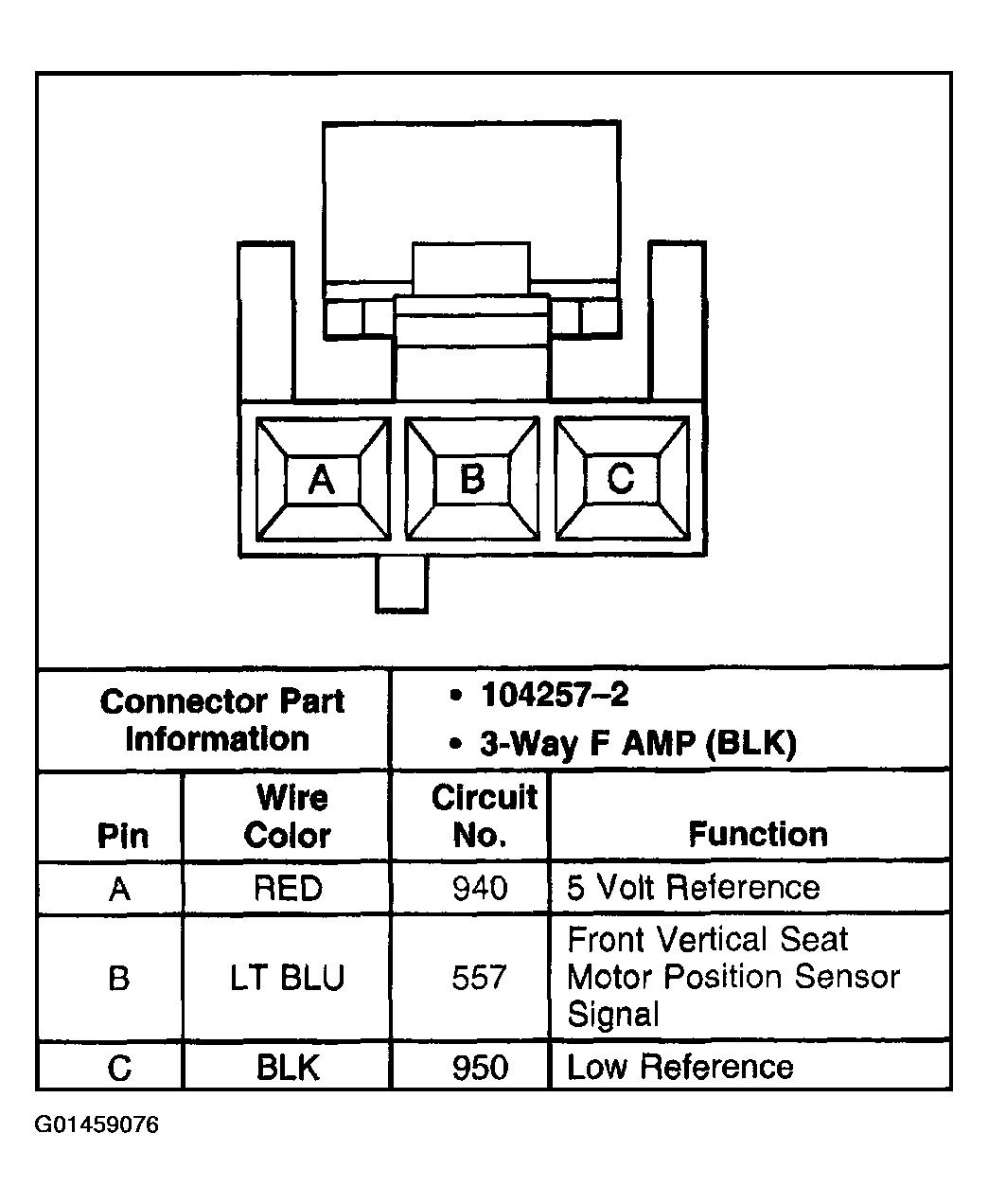

Fig 1: Seat Front Vertical Motor Position Sensor - Driver Connector End View
G01459076Courtesy of GENERAL MOTORS CORP.
