Traction Control Switch (w/o JL4) Connector End View

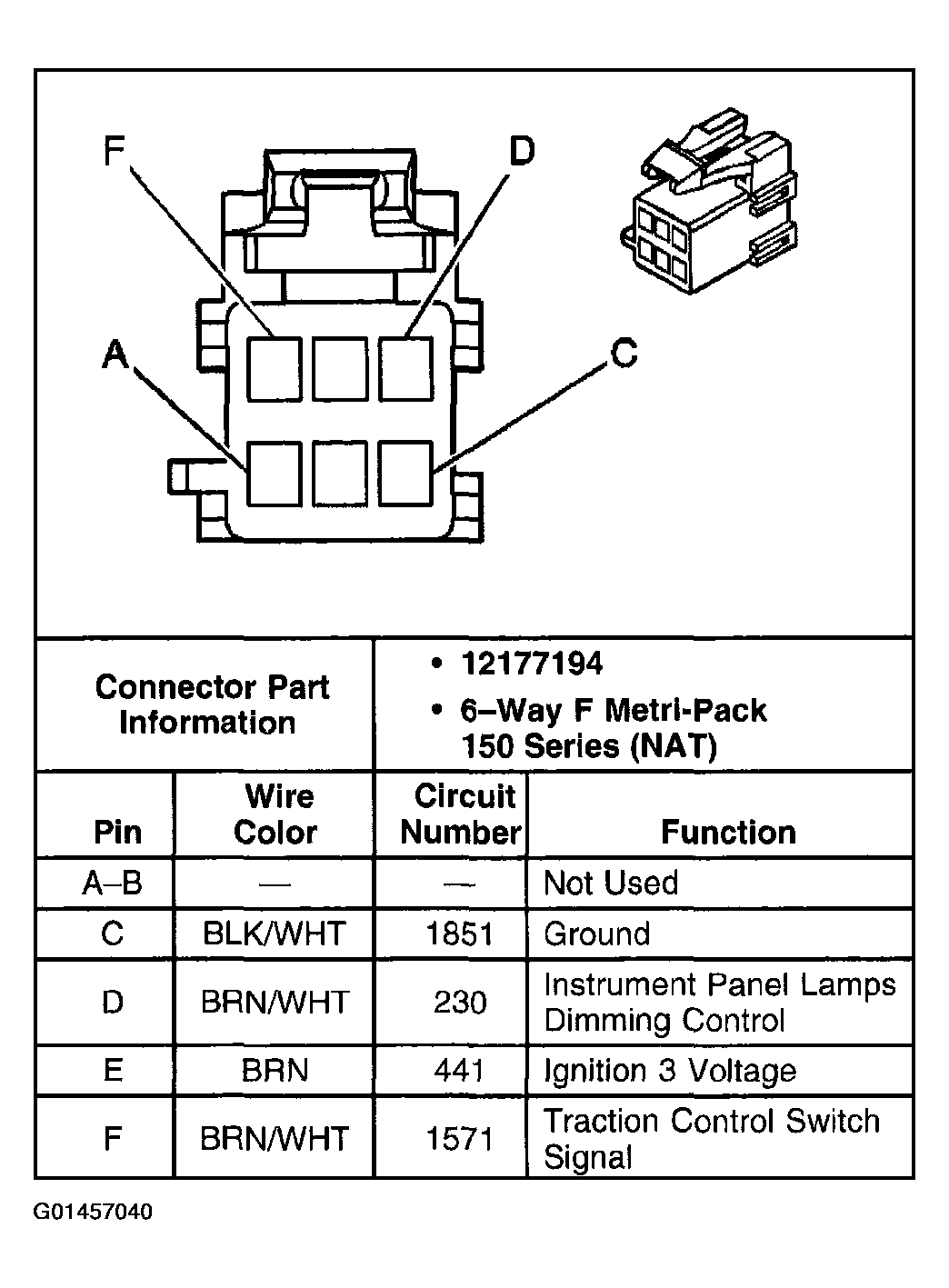

Fig 1: Traction Control Switch (w/o JL4) Connector End View
G01457040Courtesy of GENERAL MOTORS CORP.
