Seat Belt Connector End Views

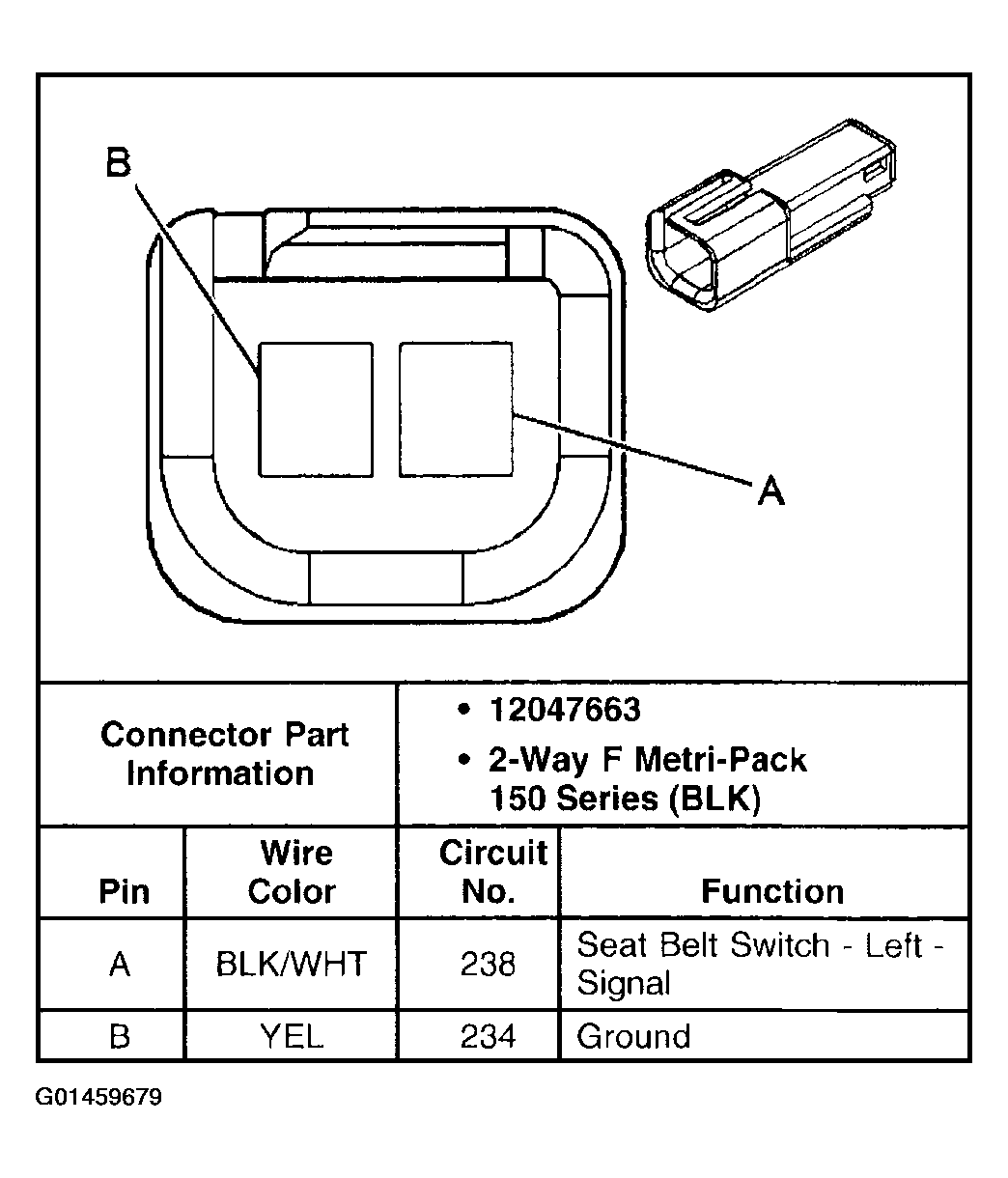

Fig 1: Identifying Seat Belt Switch - Driver
G01459679Courtesy of GENERAL MOTORS CORP.

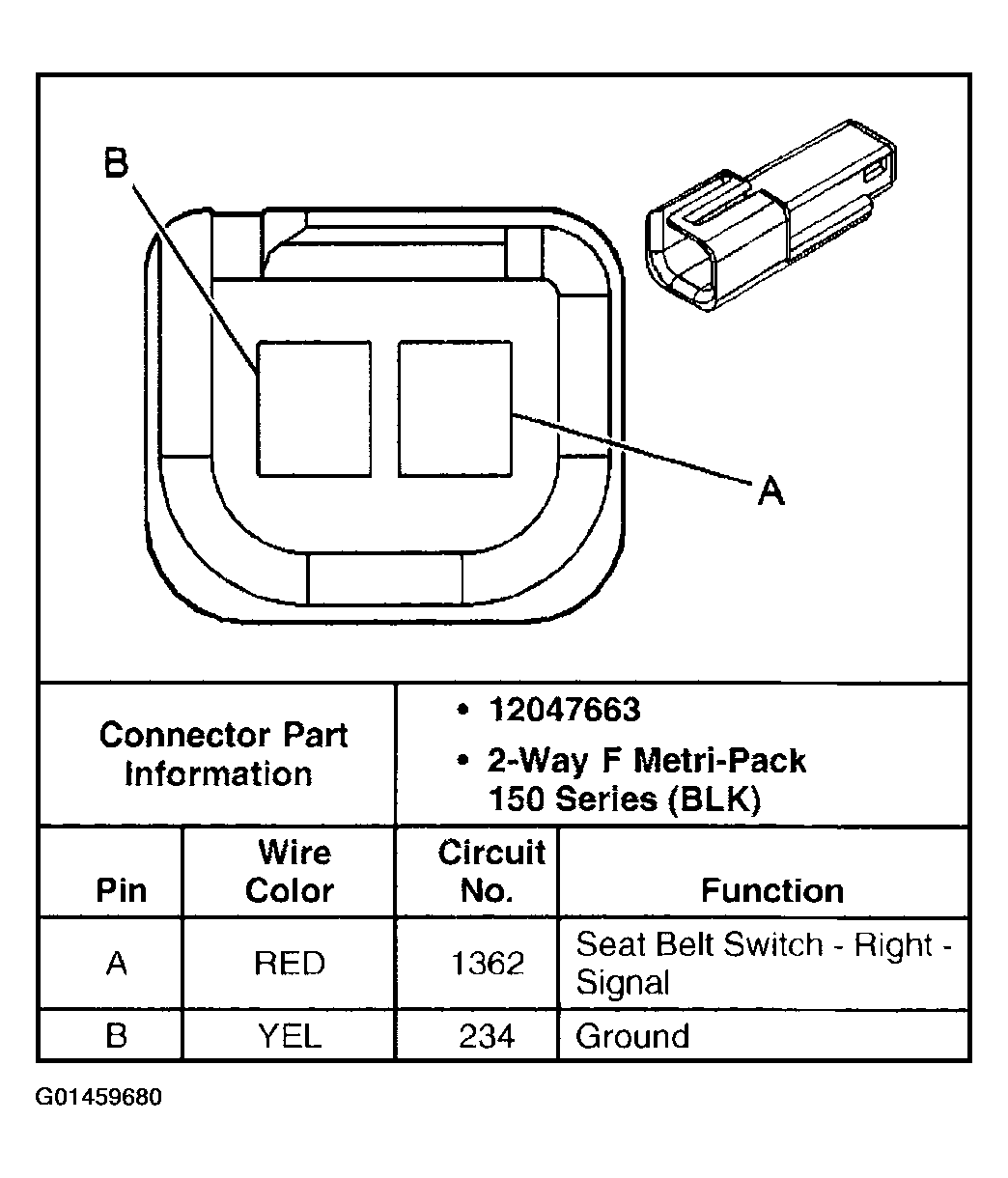

Fig 2: Identifying Seat Belt Switch - Front Passenger
G01459680Courtesy of GENERAL MOTORS CORP.
