Installation Procedure

Important:  Make sure the O-ring is seated in the O-ring groove.

1. Install the O-ring seal (1) to the steering gear.

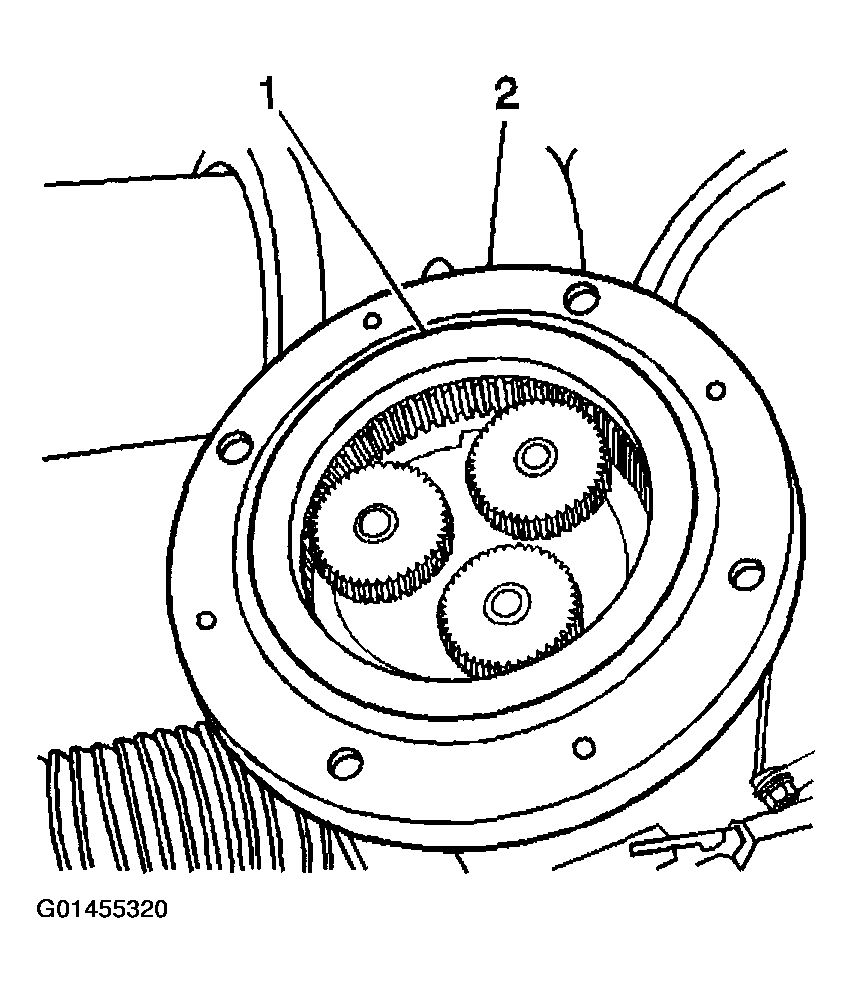

   Fig 1: Installing O-Ring Seal To Steering Gear

   Courtesy of GENERAL MOTORS CORP.
2. Install the steering gear motor (2) to the vehicle.
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
3. Install the bolts (1) retaining the steering gear motor (2) to the steering gear.

   Tighten

   Tighten the 6 mm (0.24 in) steering gear motor retaining bolts to 10 N.m (89 lb in).

   Tighten

   Tighten the 4 mm (0.16 in) steering gear motor retaining bolts to 4 N.m (35 lb in).

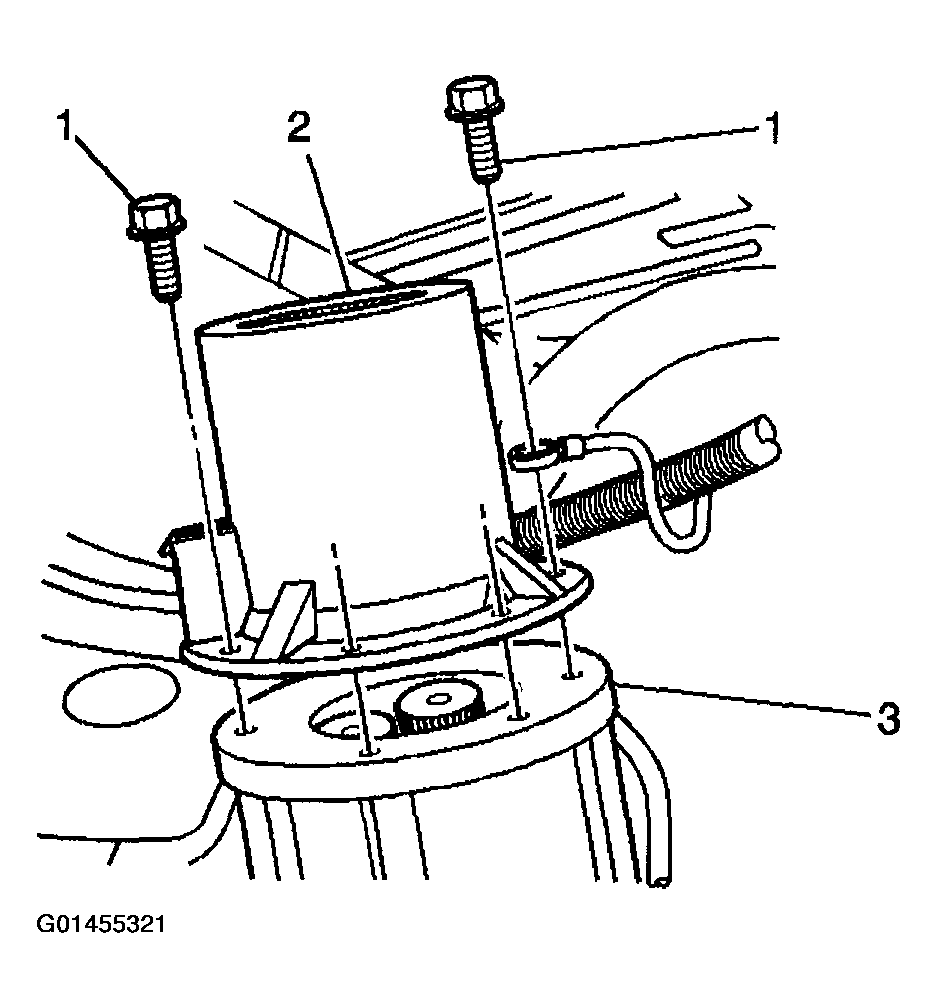

   Fig 2: Installing Bolts Retaining Steering Gear Motor

   Courtesy of GENERAL MOTORS CORP.

   Important:  Route the wiring harness in the same location as the wiring was removed.

4. Connect the electrical connectors to the control module (2).

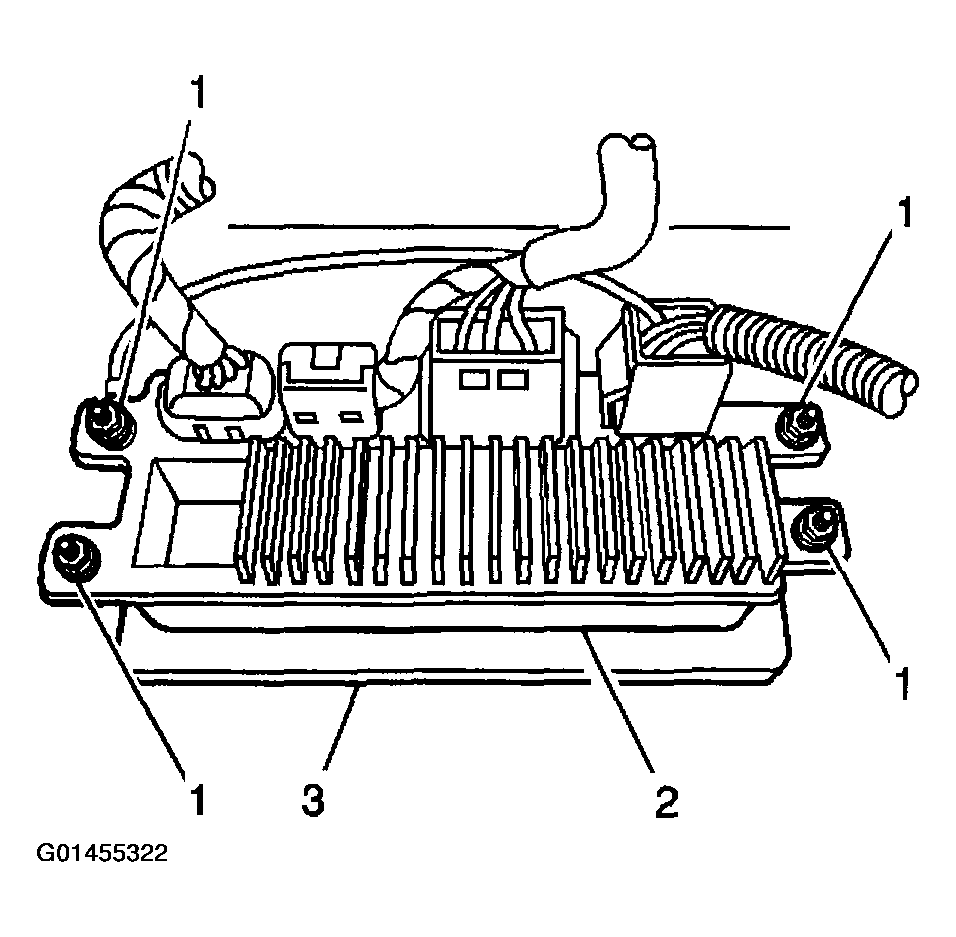

   Fig 3: Connecting Wiring Harness From Control Module

   Courtesy of GENERAL MOTORS CORP.
5. Connect the electrical connector (1) to the rear position sensor.
6. Connect the wire harness retaining clips.

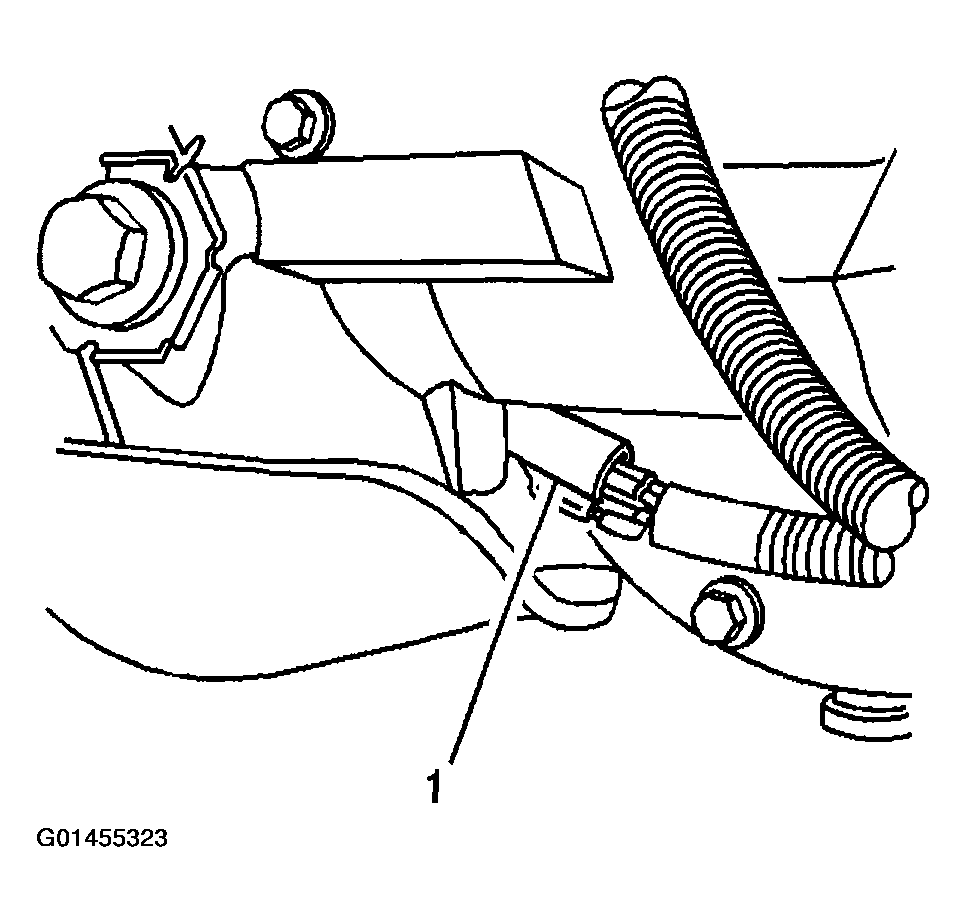

   Fig 4: Connecting Electrical Connector From Rear Position Sensor

   Courtesy of GENERAL MOTORS CORP.
7. Install the spare tire to the vehicle.
8. Lower the vehicle.

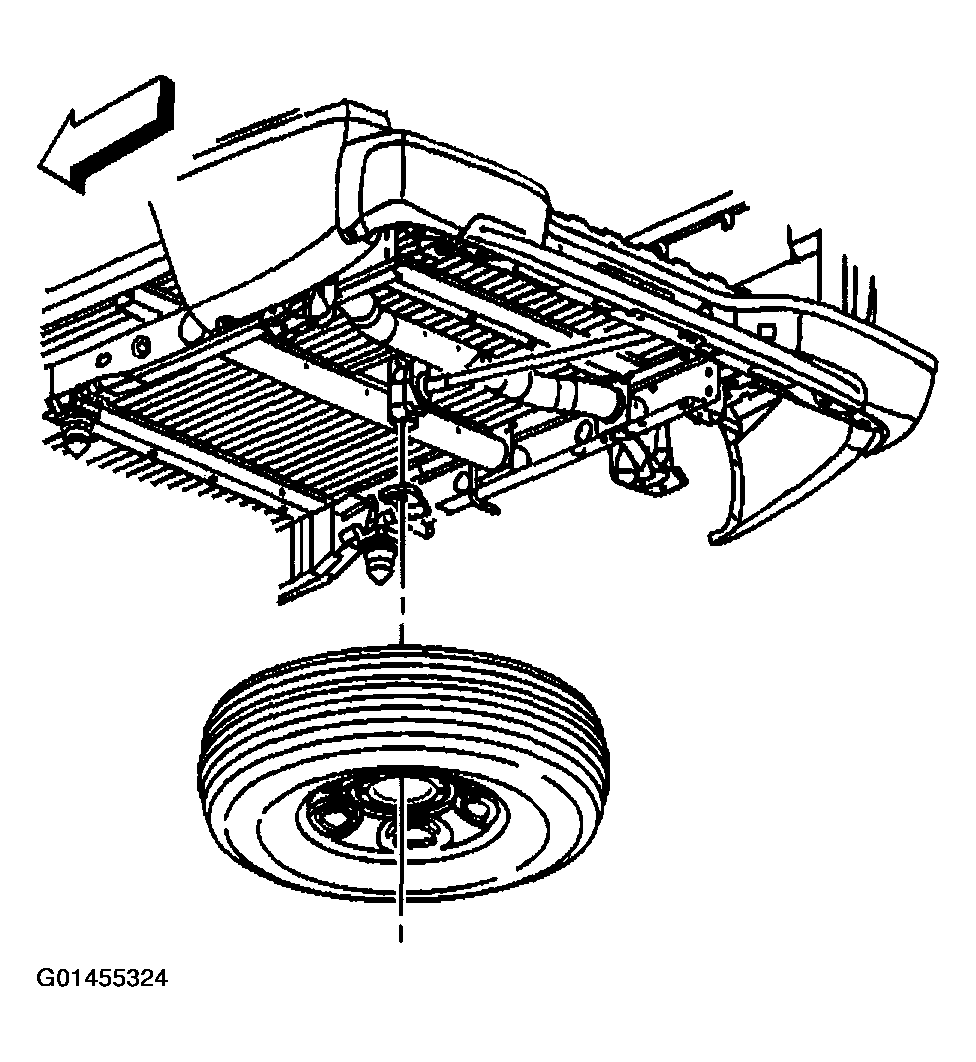

   Fig 5: Installing Spare Tire

   Courtesy of GENERAL MOTORS CORP.
