Power Steering Pump Disassembled View (Regular)

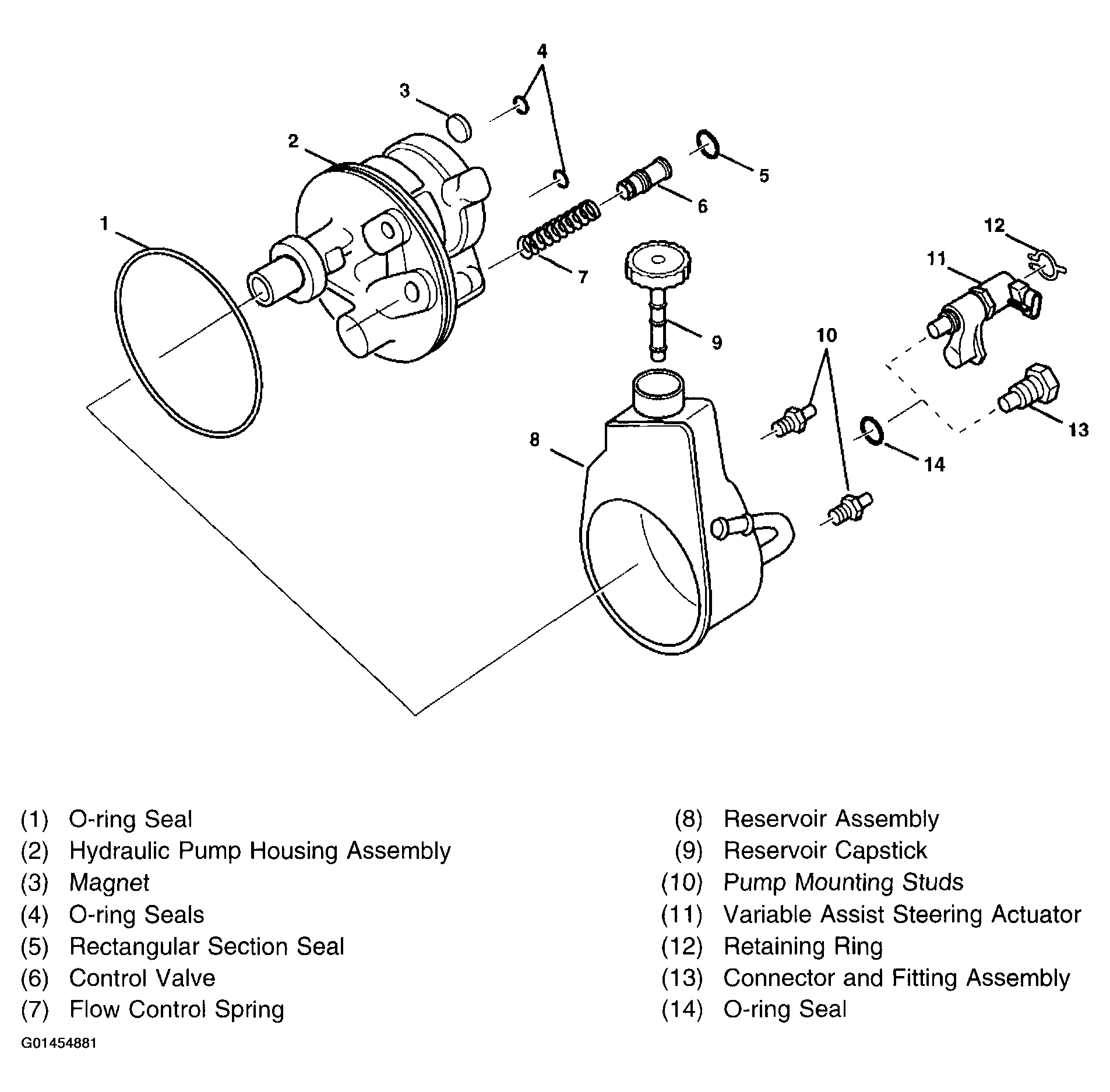

Fig 1: Exploded View Of Power Steering Pump Components (Regular)
G01454881Courtesy of GENERAL MOTORS CORP.
