Assembly Procedure

  1. Install the flow control spring (4) if removed from the pump housing (1).
  2. Lubricate the new rectangular section seal (2) with power steering fluid.
  3. Install the rectangular section seal (2) onto the control valve assembly (3).
  4. Install the control valve assembly (3).

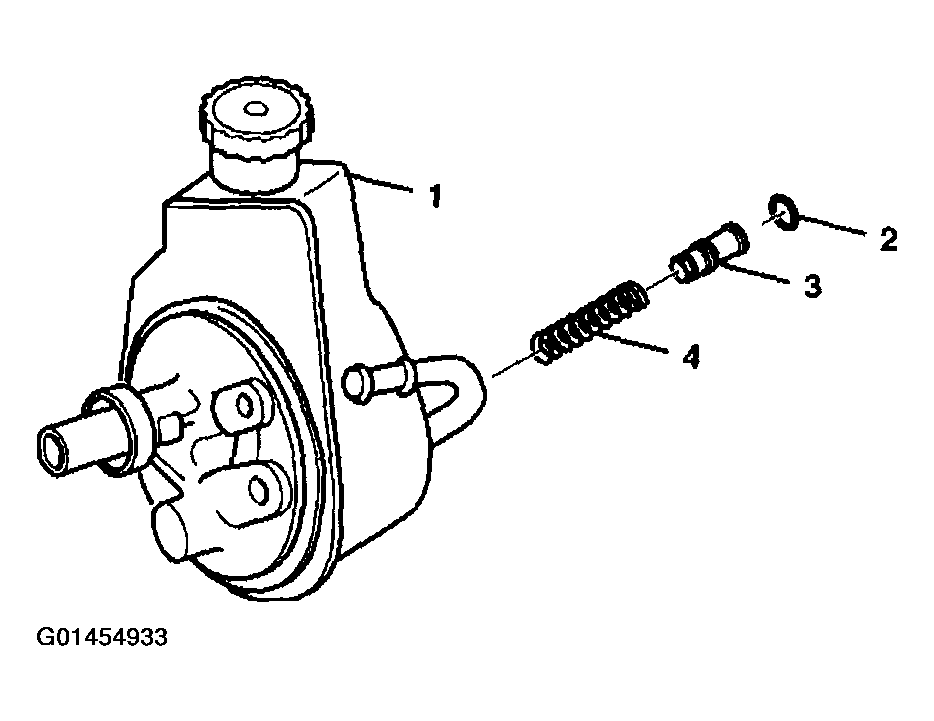

    Fig 1: Installing Control Valve Assembly
    G01454933Courtesy of GENERAL MOTORS CORP.
