Automatic Level Control Suspension Component Views

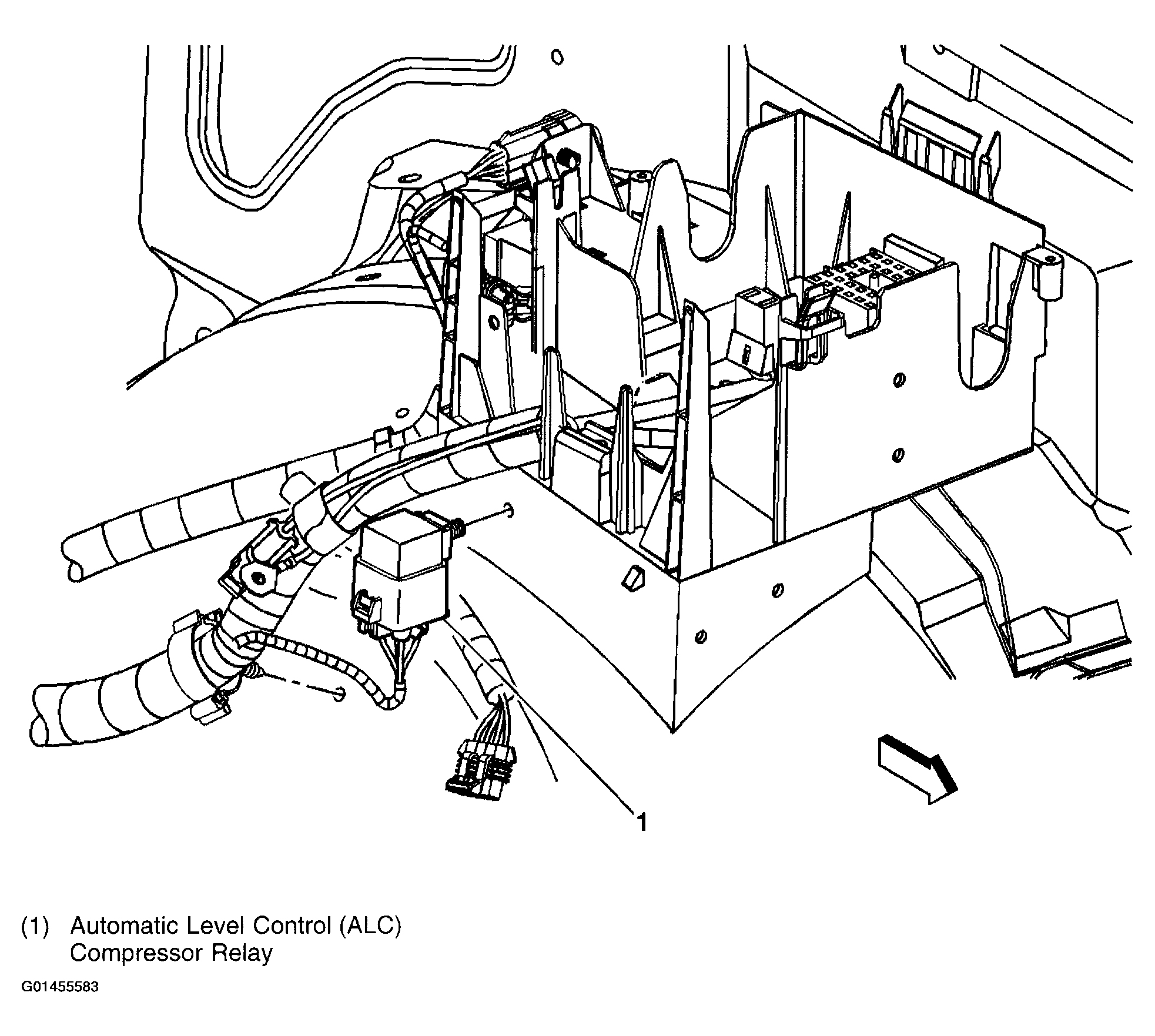

Fig 1: Locating Component Views Of Automatic Level Control Compressor Relay
Courtesy of GENERAL MOTORS CORP.

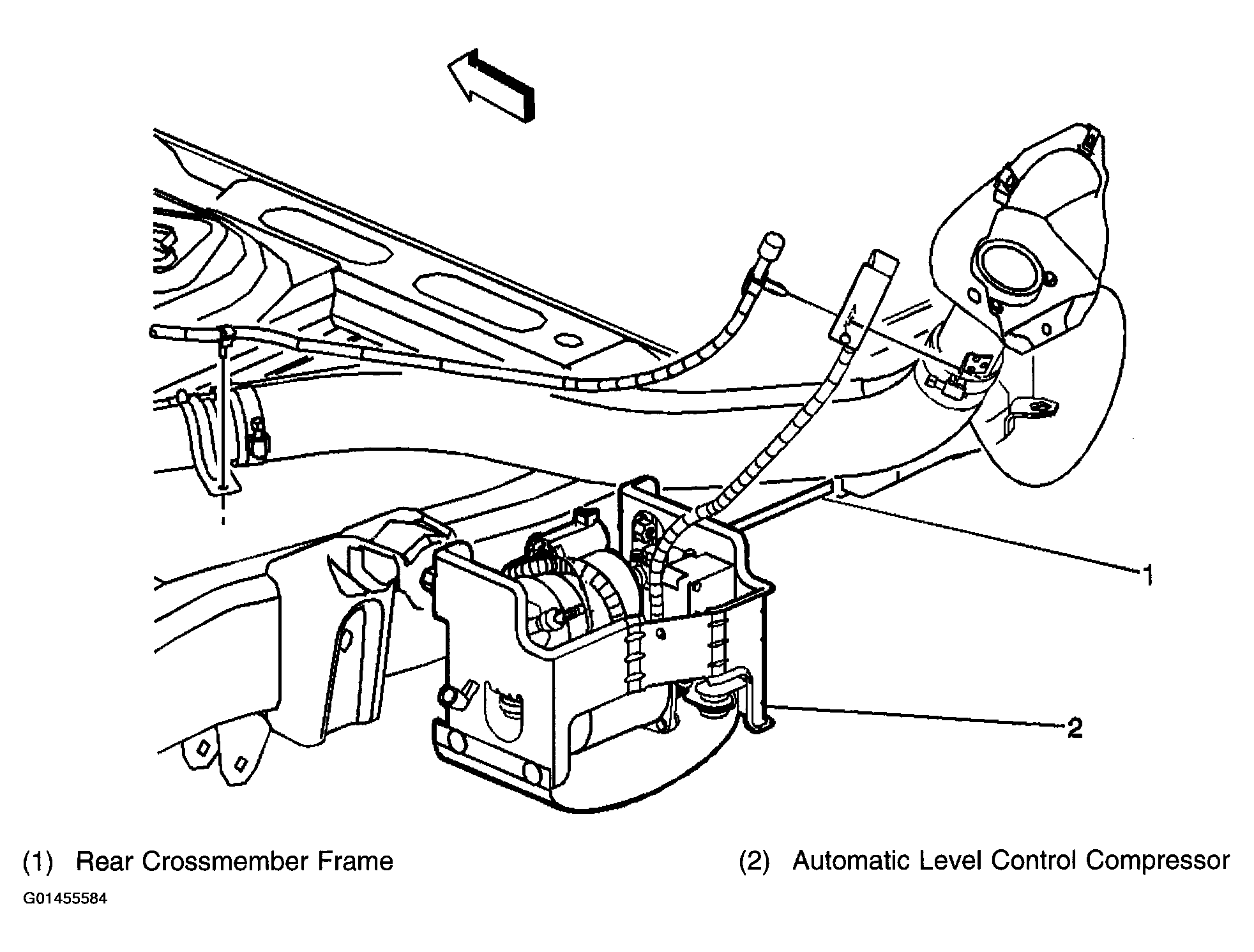

Fig 2: Locating Rear Suspension Components - ALC
Courtesy of GENERAL MOTORS CORP.
