Junction Block-Rear Lamps

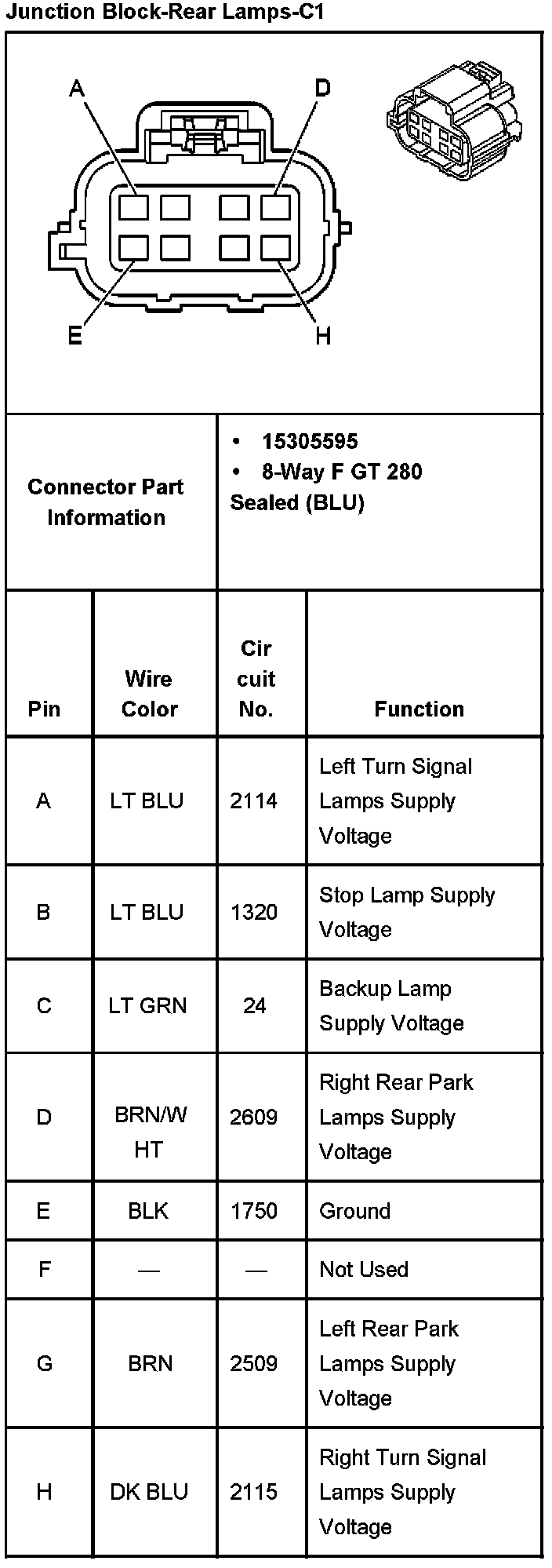

Junction Block-Rear Lamps-C1:

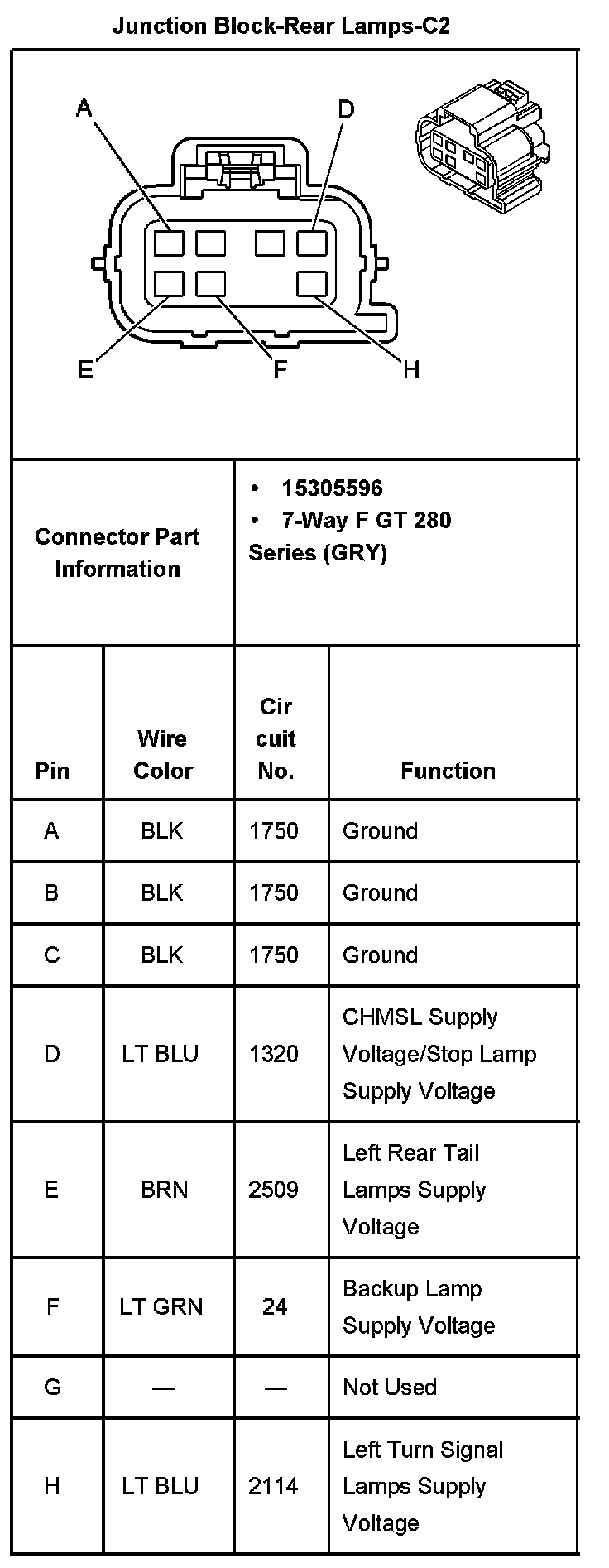

Junction Block-Rear Lamps-C2:



Junction Block-Rear Lamps-C3:

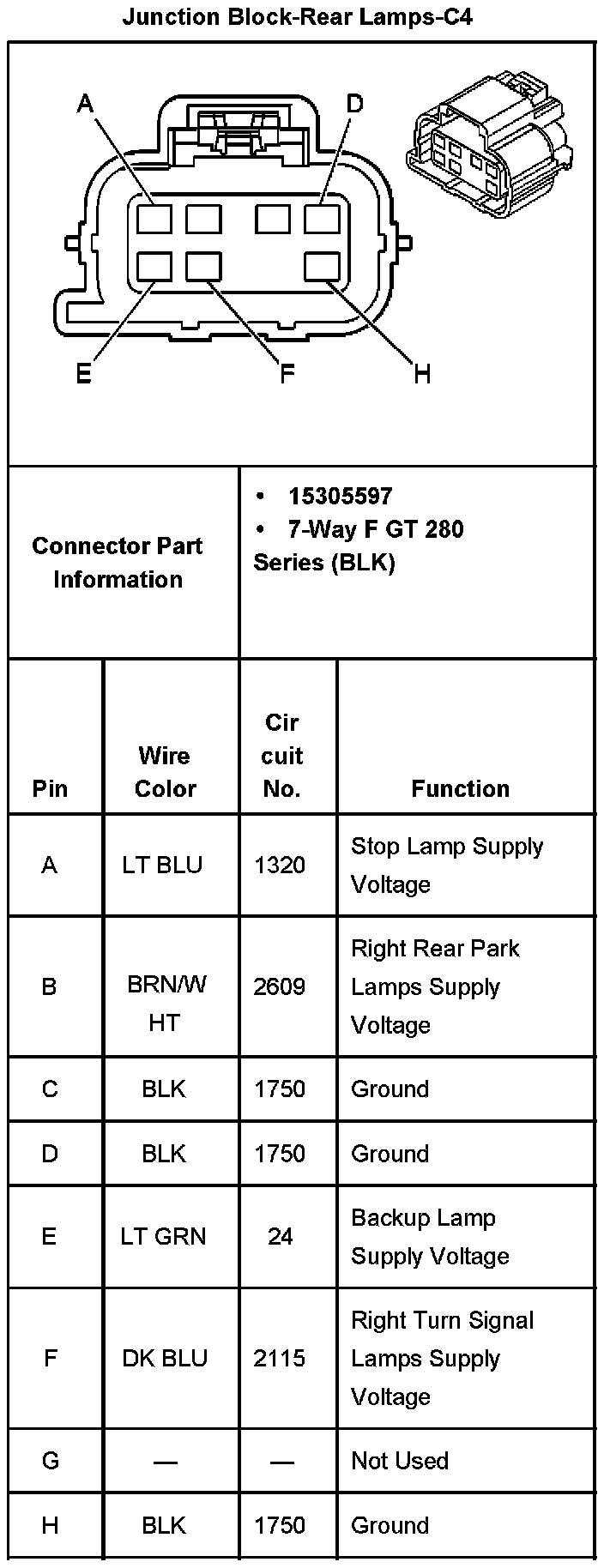

Junction Block-Rear Lamps-C4:
