Seat Temperature Control Module: Diagrams

Heated Seat Control Module - LR Part 1:



Heated Seat Control Module - LR Part 2:

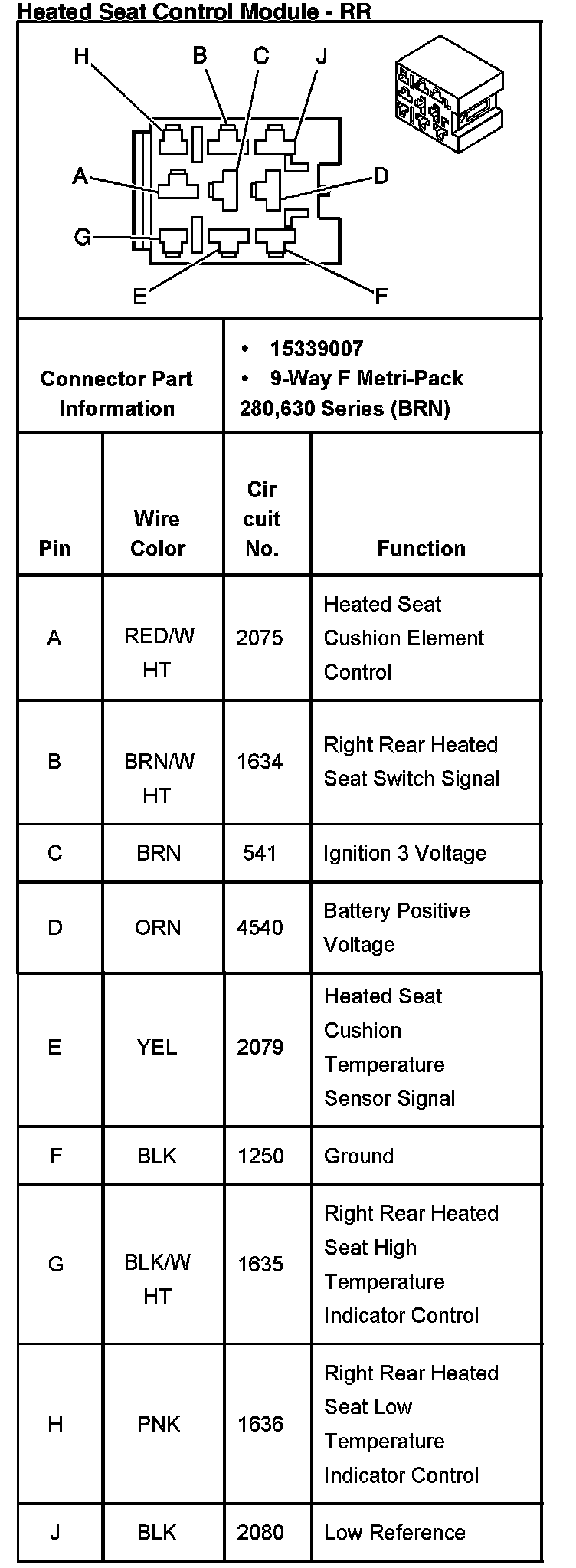

Heated Seat Control Module - RR:
