Body Control System Schematics (DIM Inputs/Outputs (1 of 2)

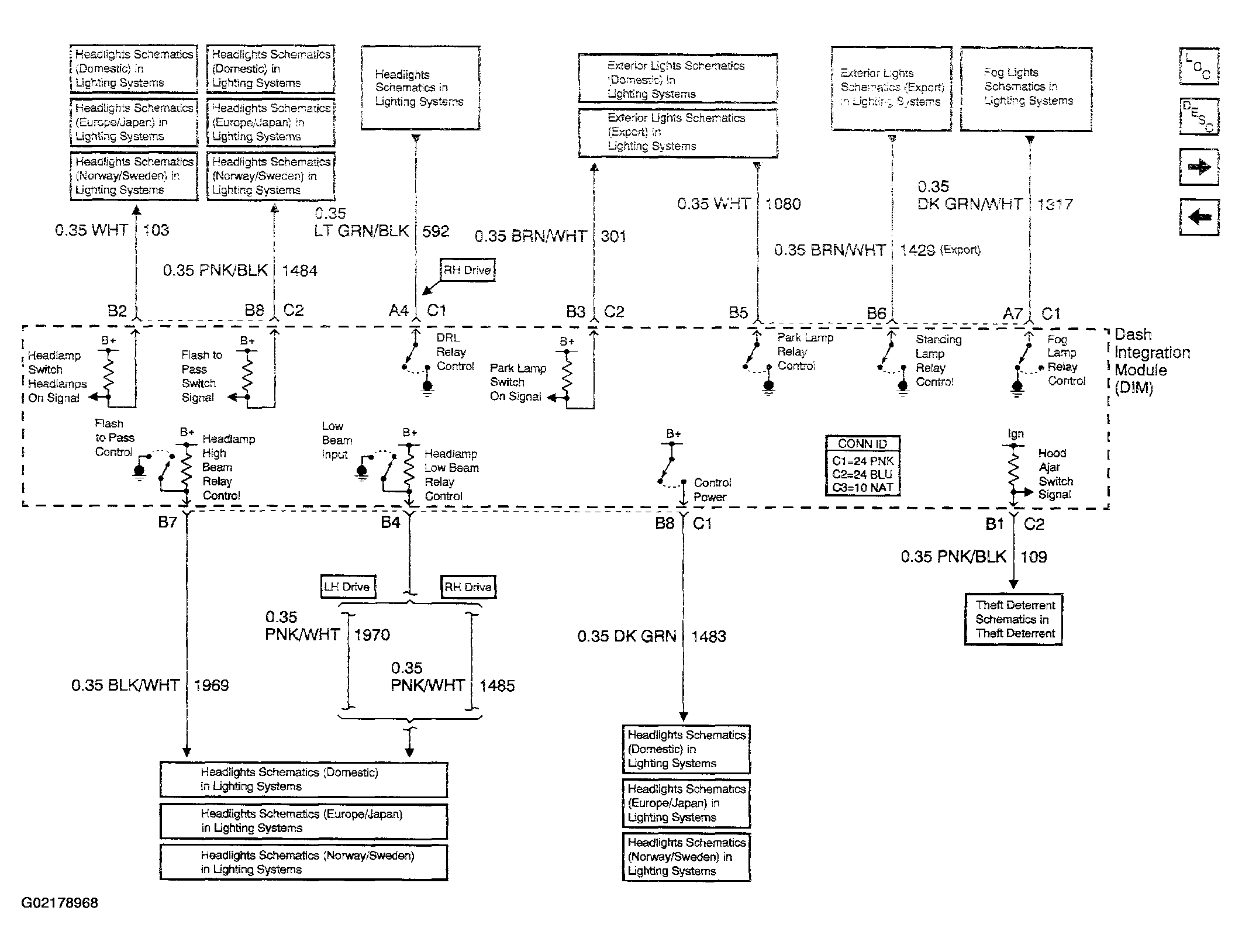

Fig 1: Body Control System Schematics - DIM Inputs/Outputs (1 Of 2)
G02178968Courtesy of GENERAL MOTORS CORP.
