Memory/Personalization Function Switch Connector End View

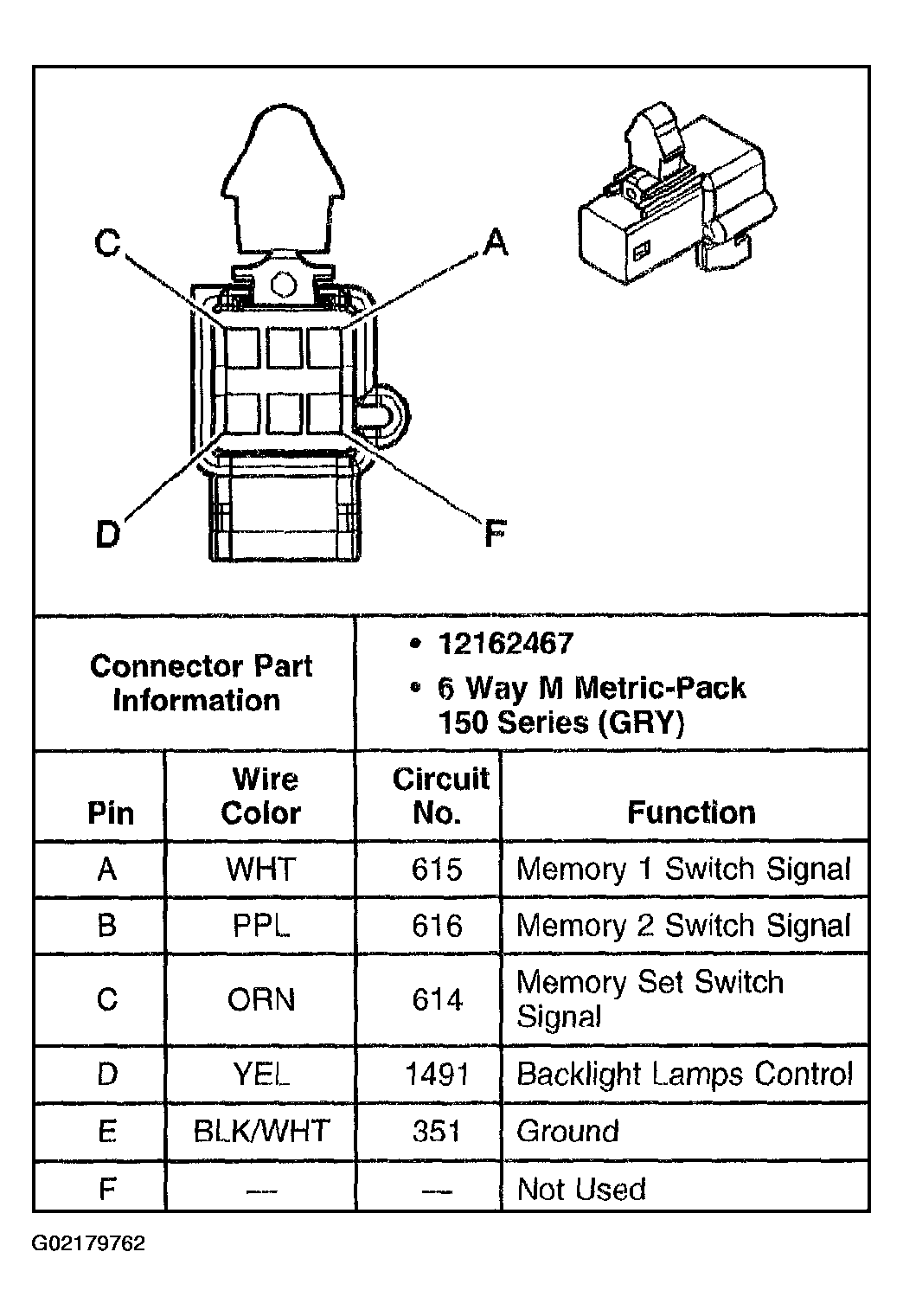

Fig 1: Memory/Personalization Function Switch
G02179762Courtesy of GENERAL MOTORS CORP.
