Engine Block Lower Face Thread Repair Specifications

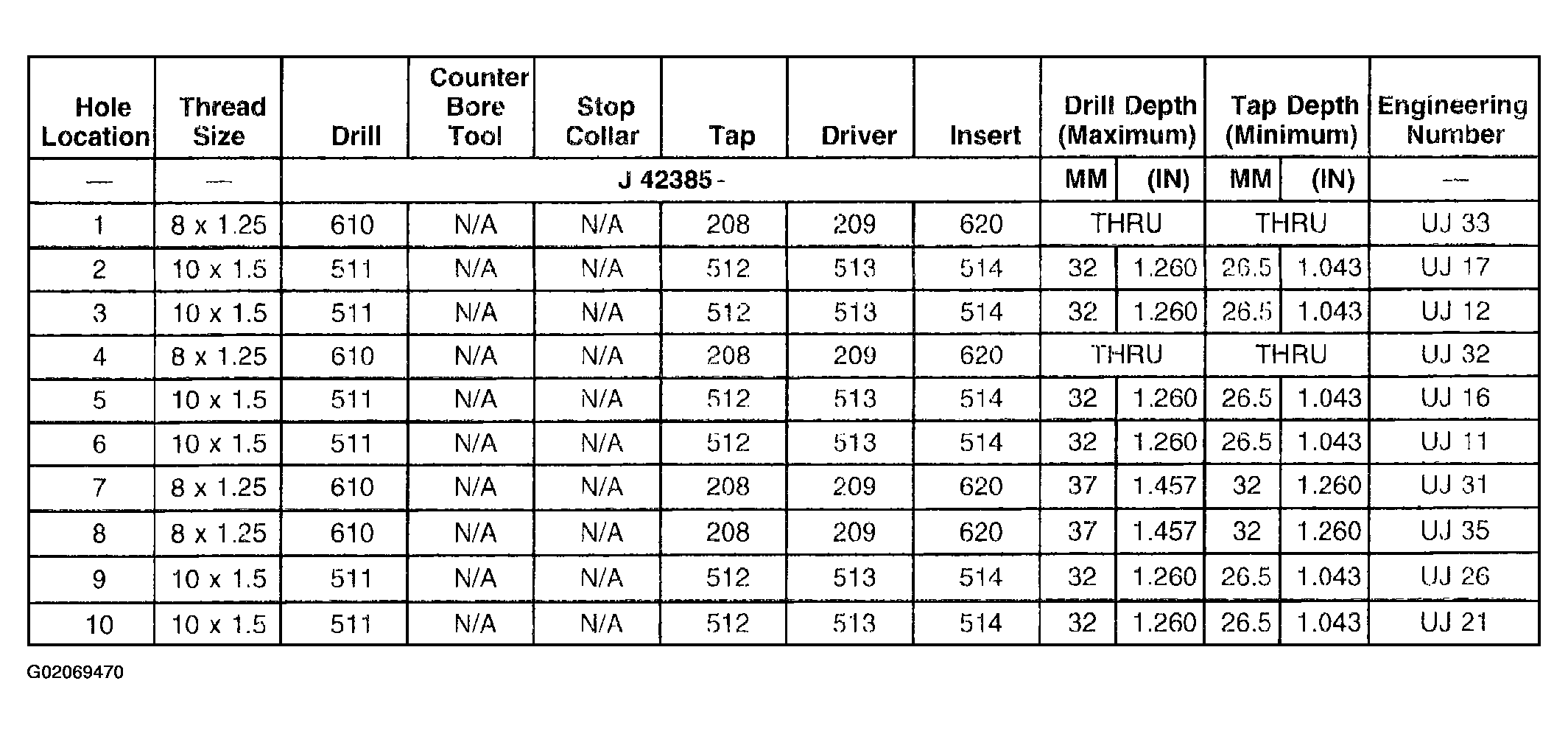

Fig 1: Engine Block Lower Face Thread Repair Specifications (1 Of 2)
G02069470Courtesy of GENERAL MOTORS CORP.

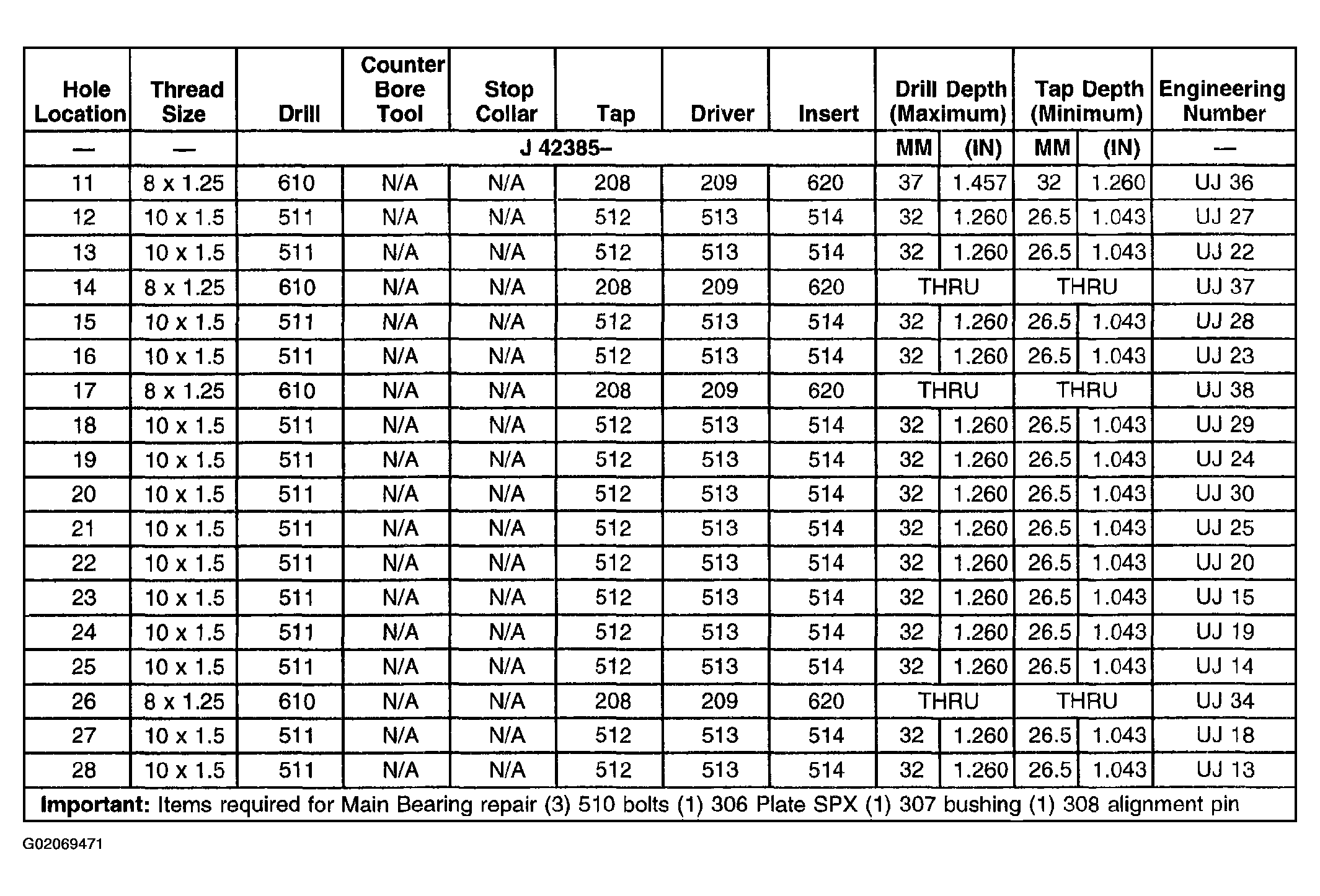

Fig 2: Engine Block Lower Face Thread Repair Specifications (2 Of 2)
G02069471Courtesy of GENERAL MOTORS CORP.
