Engine Block Rear Thread Repair Specifications

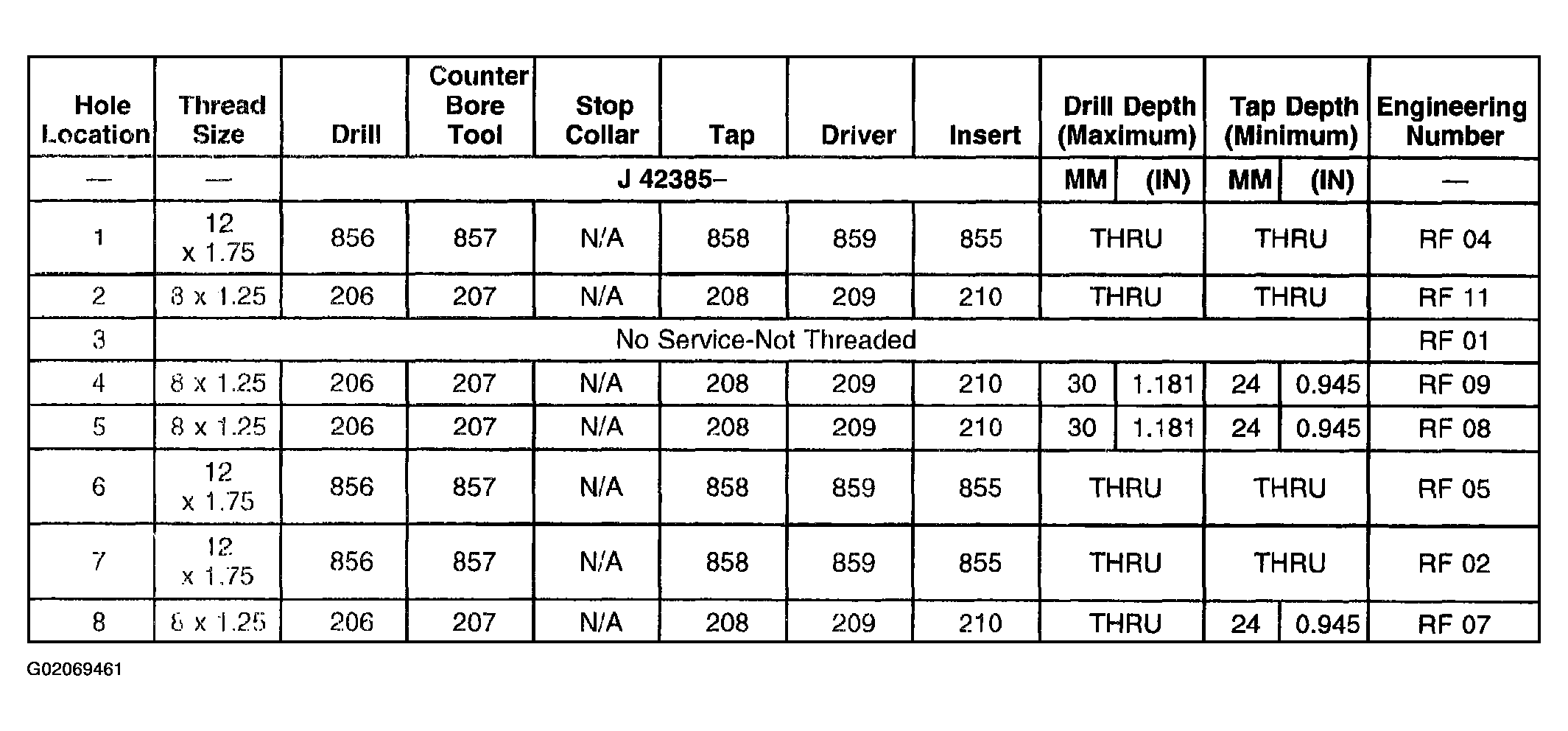

Fig 1: Engine Block Rear Thread Repair Specifications (1 Of 2)
G02069461Courtesy of GENERAL MOTORS CORP.

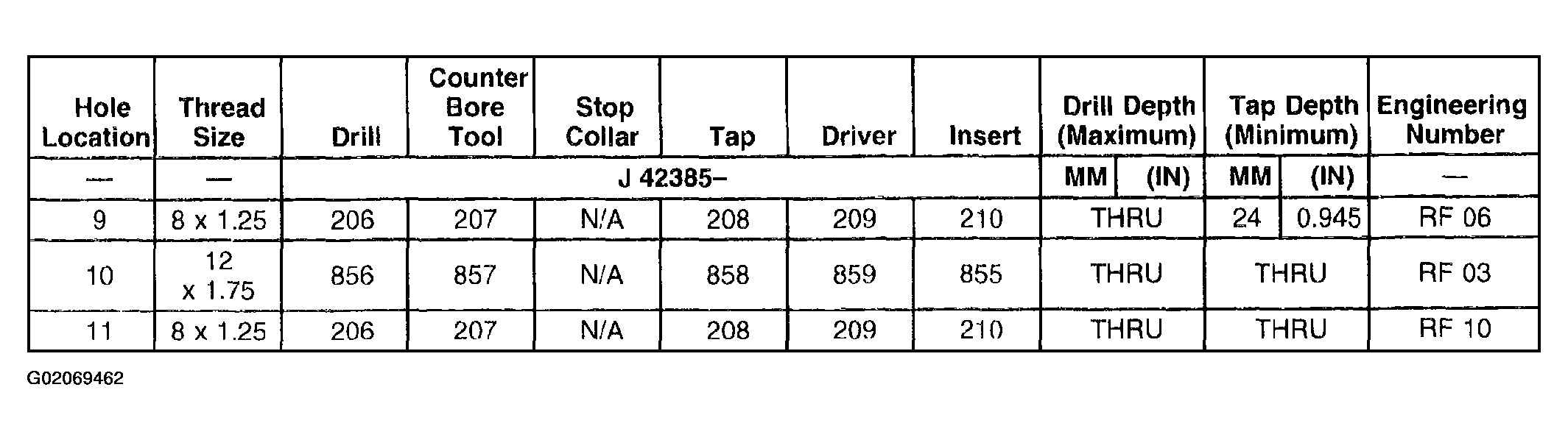

Fig 2: Engine Block Rear Thread Repair Specifications (2 Of 2)
G02069462Courtesy of GENERAL MOTORS CORP.
