Memory Seat Module (MSM) Connector End View C2

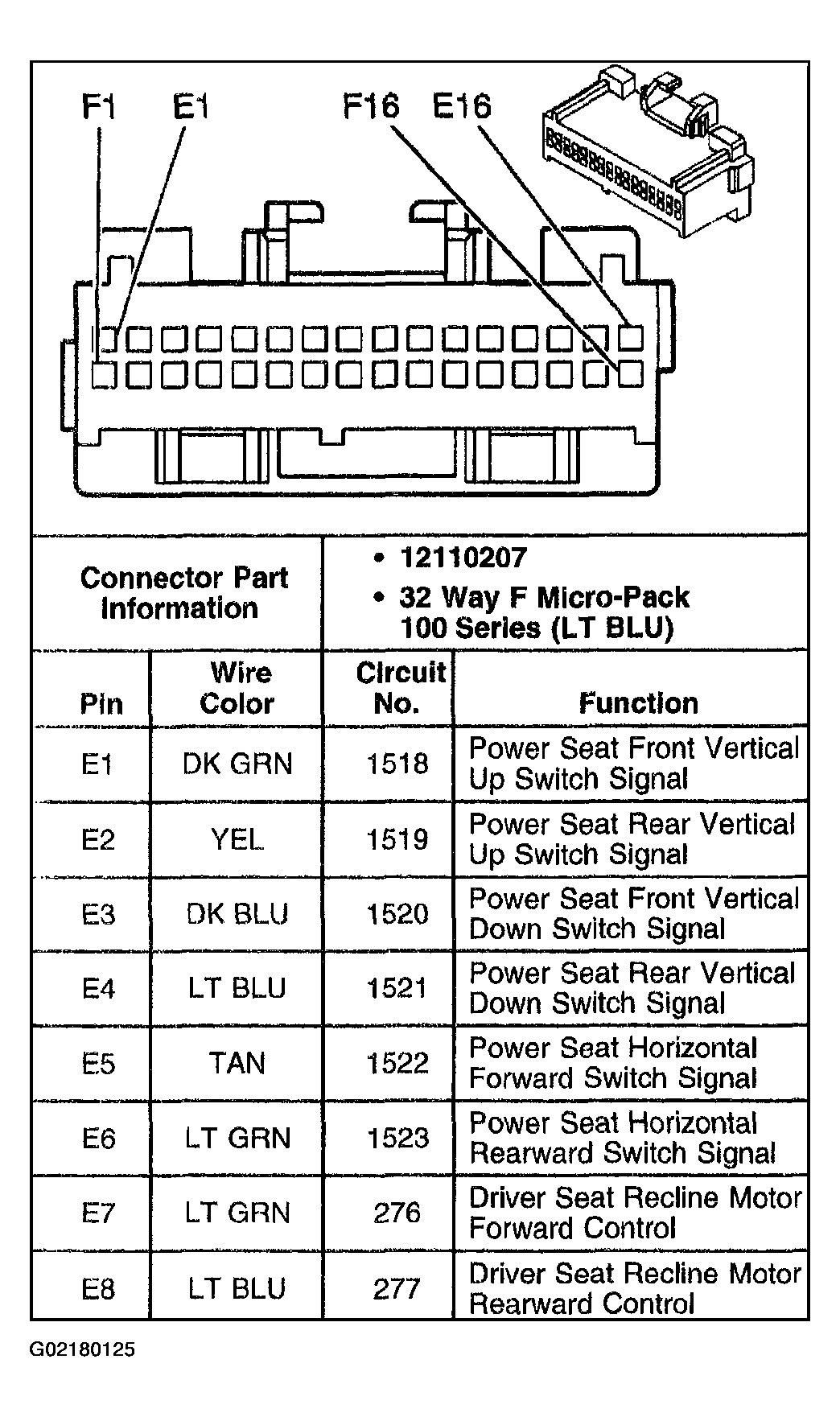

Fig 1: Memory Seat Module (MSM) C2 (AL2) (1 Of 2)
G02180125Courtesy of GENERAL MOTORS CORP.

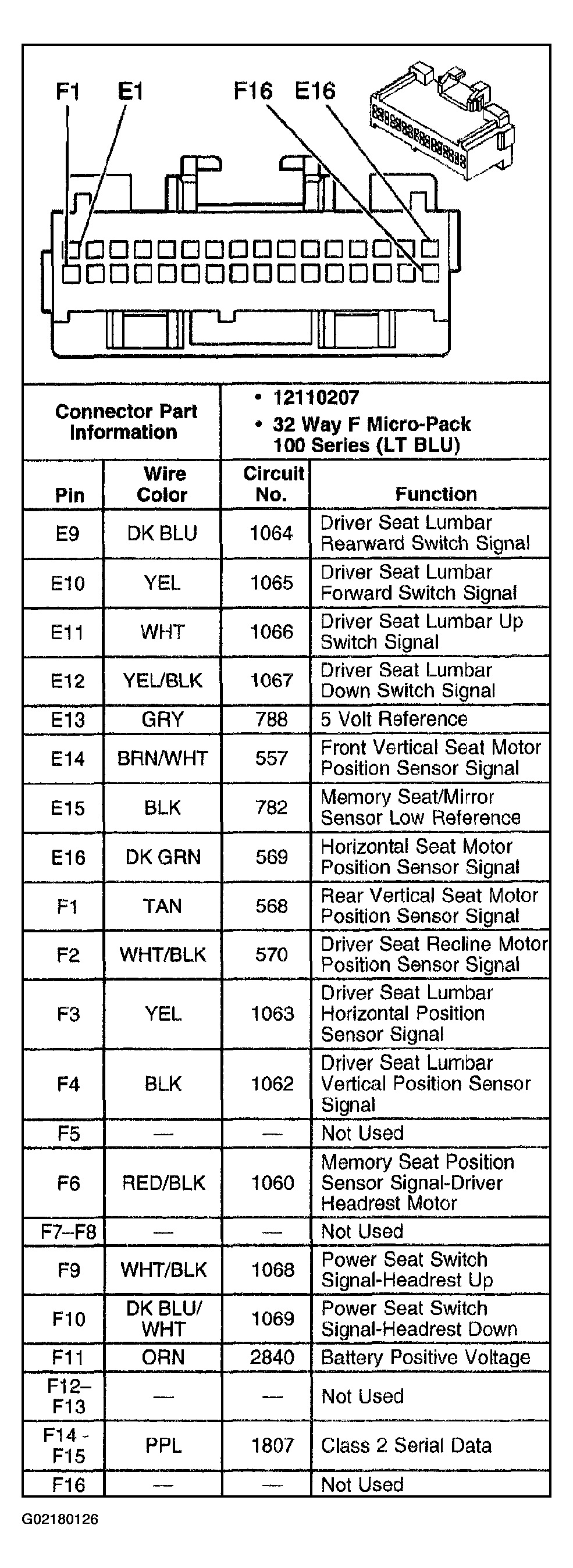

Fig 2: Memory Seat Module (MSM) C2 (AL2) (2 Of 2)
G02180126Courtesy of GENERAL MOTORS CORP.
