Bose Amplifier Scan Tool Output Control
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Bose Amplifier Scan Tool Output Control

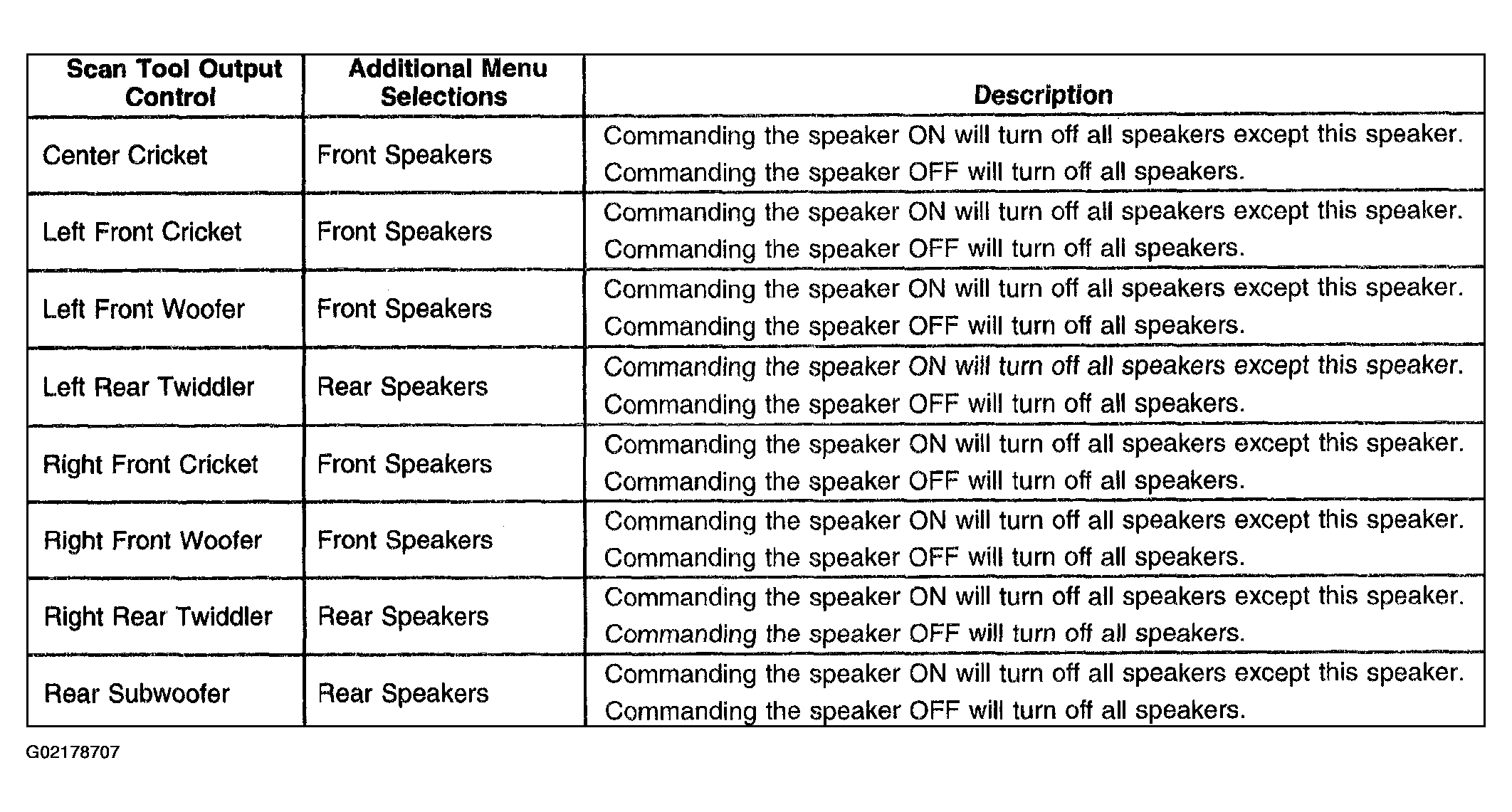

Fig 1: Bose Amplifier Scan Tool Output Control
Courtesy of GENERAL MOTORS CORP.
