Installation Procedure

  1. Install the heated seat module (1) to the seat cushion frame.
  2. Install the new rivets (2) to the heated seat module (1) in order to secure the heated seat module to the seat cushion frame.

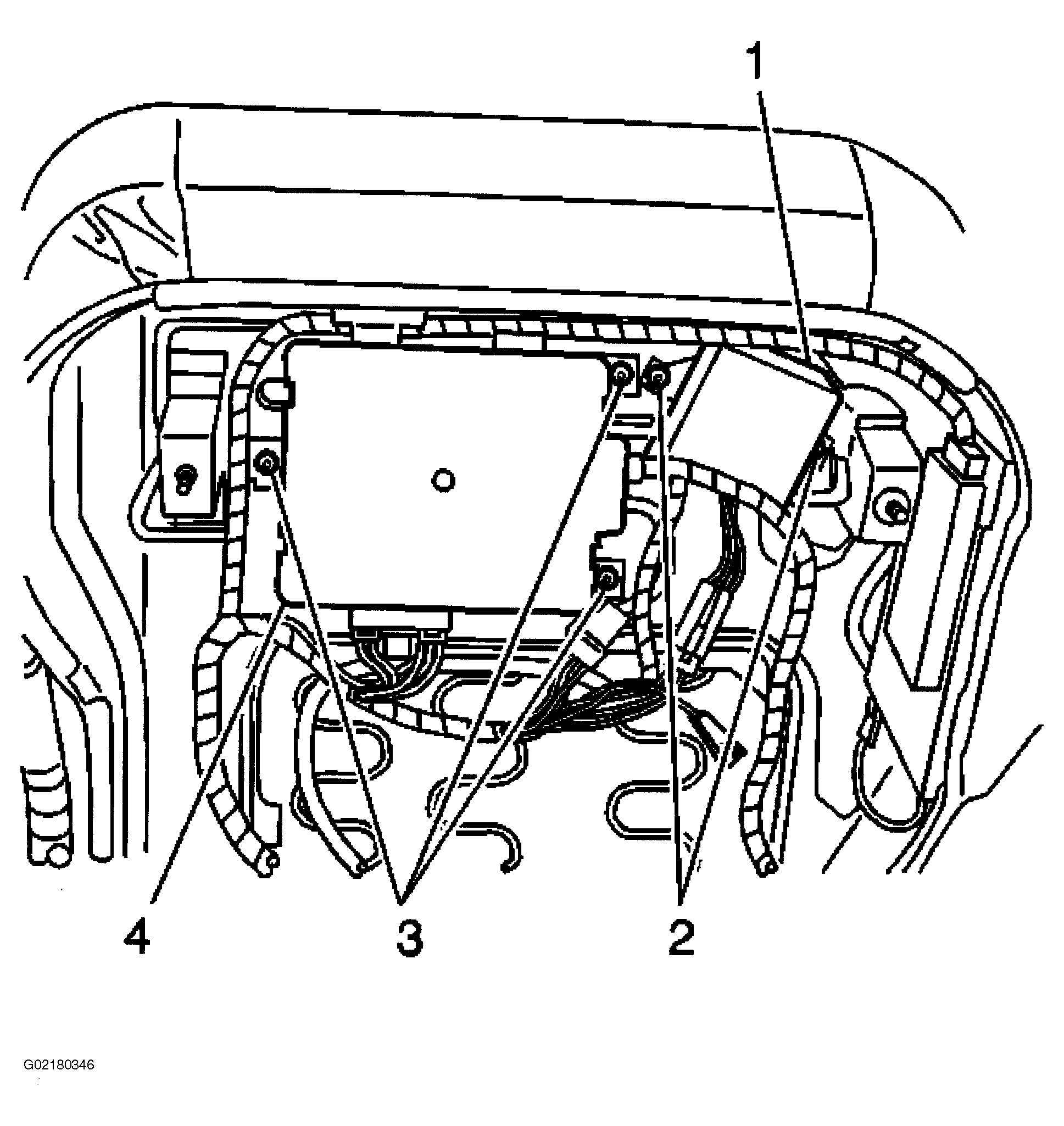

    Fig 1: Locating Heated Seat Module Rivets
    G02180346Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the heated seat module.
  4. Connect the heated seat cover electrical connectors and the wire hold down clips which were removed during disassembly.

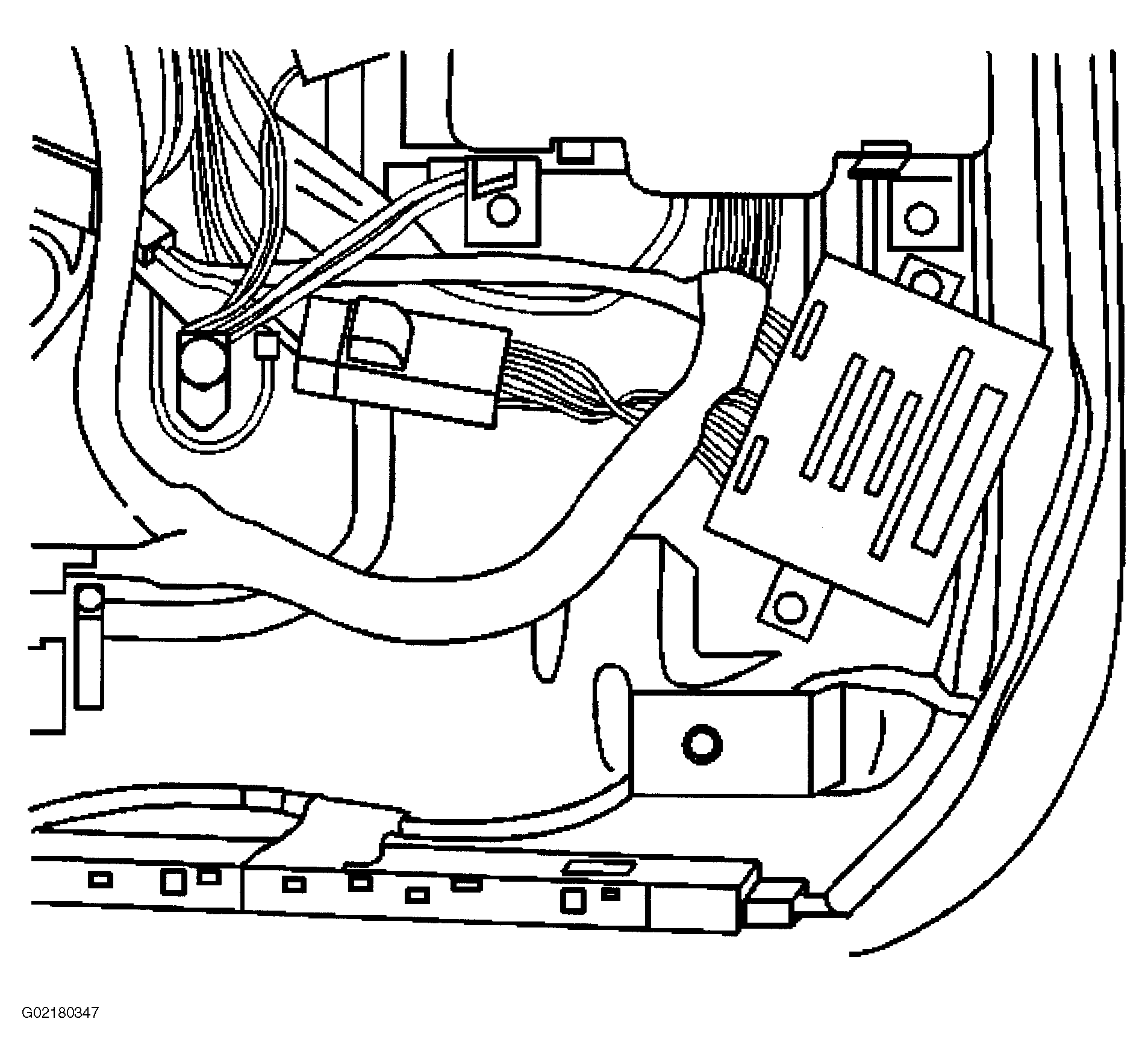

    Fig 2: View Of Heated Seat Module Electrical Connector
    G02180347Courtesy of GENERAL MOTORS CORP.
  5. Remove the protective cover from the seat riser.
  6. Install the seat cushion assembly (1) to the seat riser.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  7. Install the front seat cushion fasteners (2).

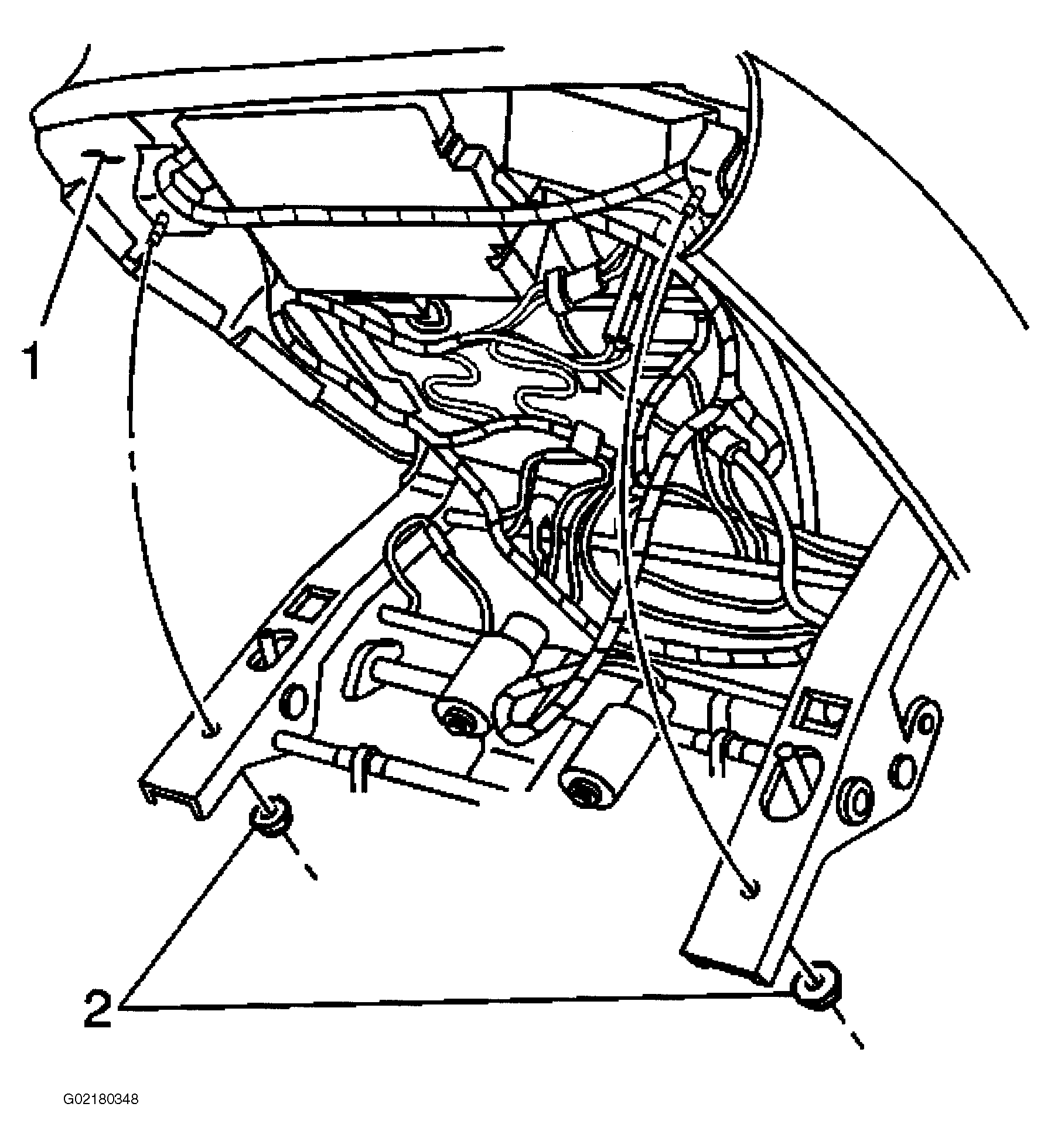

    Fig 3: Installing Front Seat Cushion Fasteners
    G02180348Courtesy of GENERAL MOTORS CORP.
  8. Adjust the front seat assembly up and forward in order to access the fasteners (1) at the rear of the front seat cushion assembly
  9. Install the front seat cushion assembly rear fasteners (1) to the seat cushion assembly.

    Tighten

    Tighten the seat cushion assembly fasteners to 9 N.m (80 lb in).

  10. Angle the front of the front seat cushion up, in order to access the front seat cushion assembly fasteners.

    Tighten

    Tighten the seat cushion assembly fasteners to 9 N.m (80 lb in).

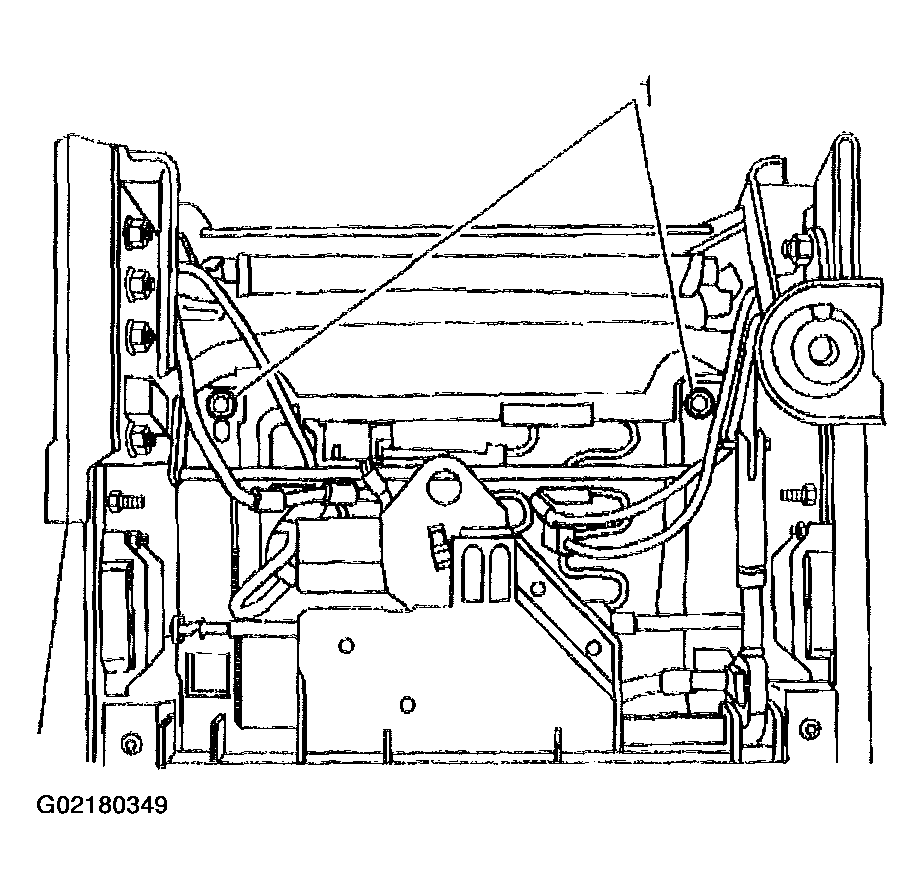

    Fig 4: Locating Front Seat Cushion Assembly Rear Fasteners
    G02180349Courtesy of GENERAL MOTORS CORP.
  11. Enable the SIR System. Refer to ZONE 7 or ZONE 9 in Air Bag Restraint Systems.
