Removal Procedure

IMPORTANT: This vehicle is equipped with express up, torque sensitive window on the front door windows.

When the battery or the power has been removed from the front door module, the front door module will need to be reprogrammed after power is restored and all repairs are completed.

Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR or TRIM PANEL REPLACEMENT - SIDE REAR DOOR .
Disconnect the electrical connectors.
Remove the door module (1) by releasing the tabs on the top and the bottom.

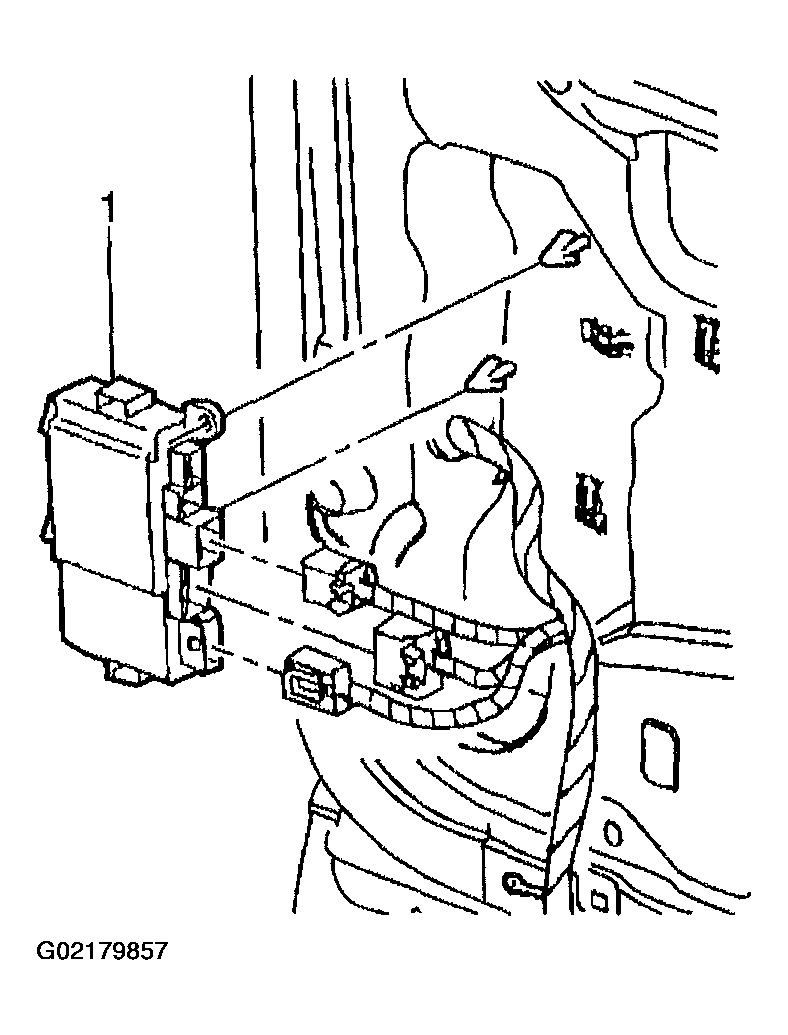

Fig 1: Disconnecting Electrical Connectors & Removing Door Control Module
Courtesy of GENERAL MOTORS CORP.
