Removal Procedure

  1. Remove the wire cover.
  2. Disconnect the electrical connector (2) from the back of the mirror.
  3. Adjust the rearview mirror (1) to the full upright position.
  4. Remove the base trim cover.
  5. Loosen the screw (3) at the mirror base.
  6. Slide the rearview mirror assembly (1) upward in order to remove the rearview mirror assembly (1) from the mirror button.

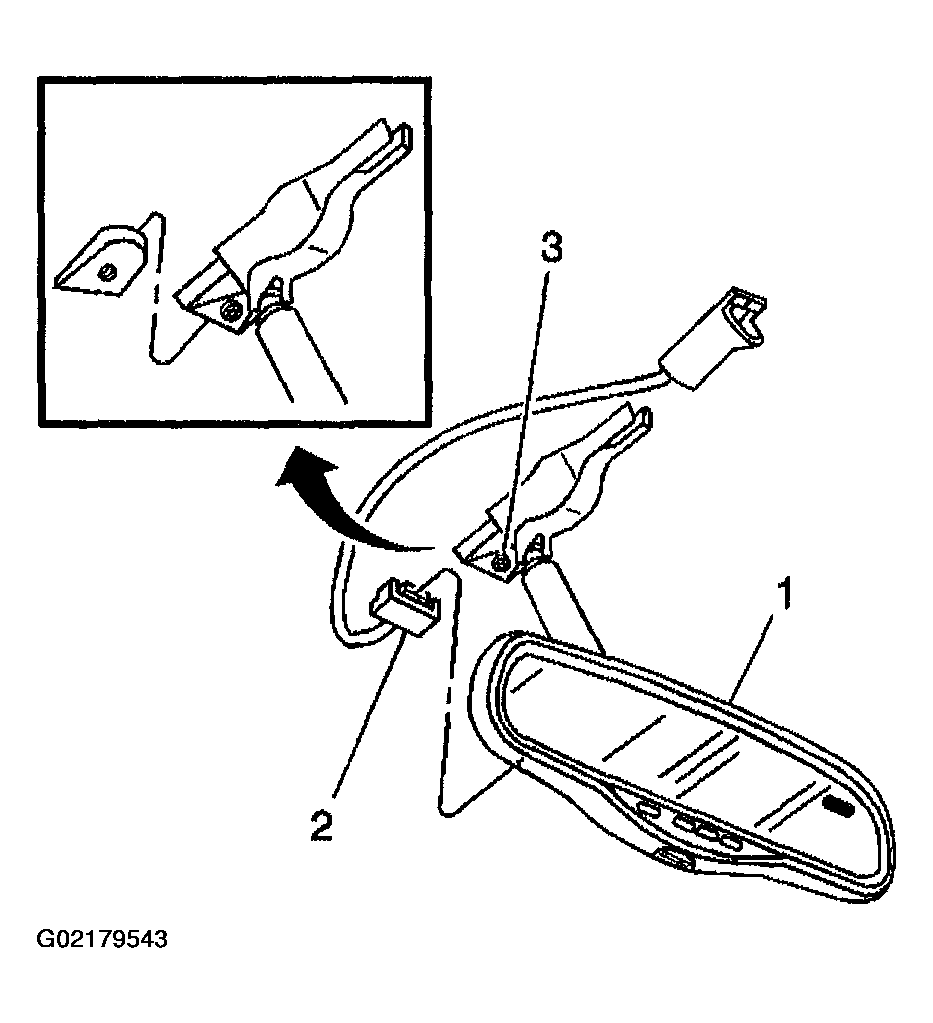

    Fig 1: Removing Rearview Mirror Assembly From Mirror Button
    G02179543Courtesy of GENERAL MOTORS CORP.
