Audio Amplifier Connector End View C3

Fig 1: Audio Amplifier (UX8) C3
G02178676Courtesy of GENERAL MOTORS CORP.

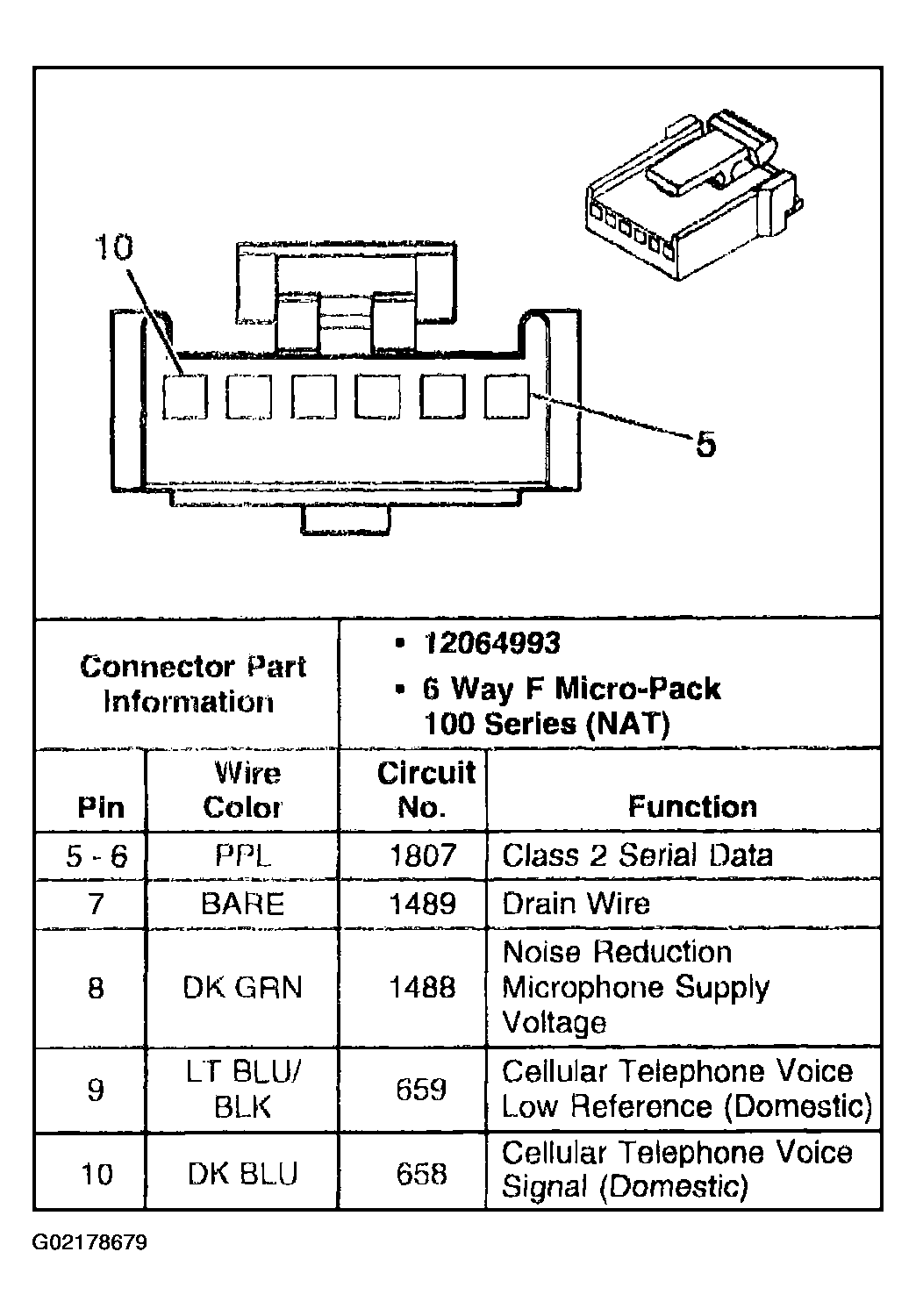

Fig 1: Audio Amplifier (UX9) C3
G02178679Courtesy of GENERAL MOTORS CORP.
