Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE

Secure the CD changer bracket (2) to CD changer (3) with the 4 fasteners (1).
Tighten

Tighten the fasteners to 2 N.m (17.5 lb in).

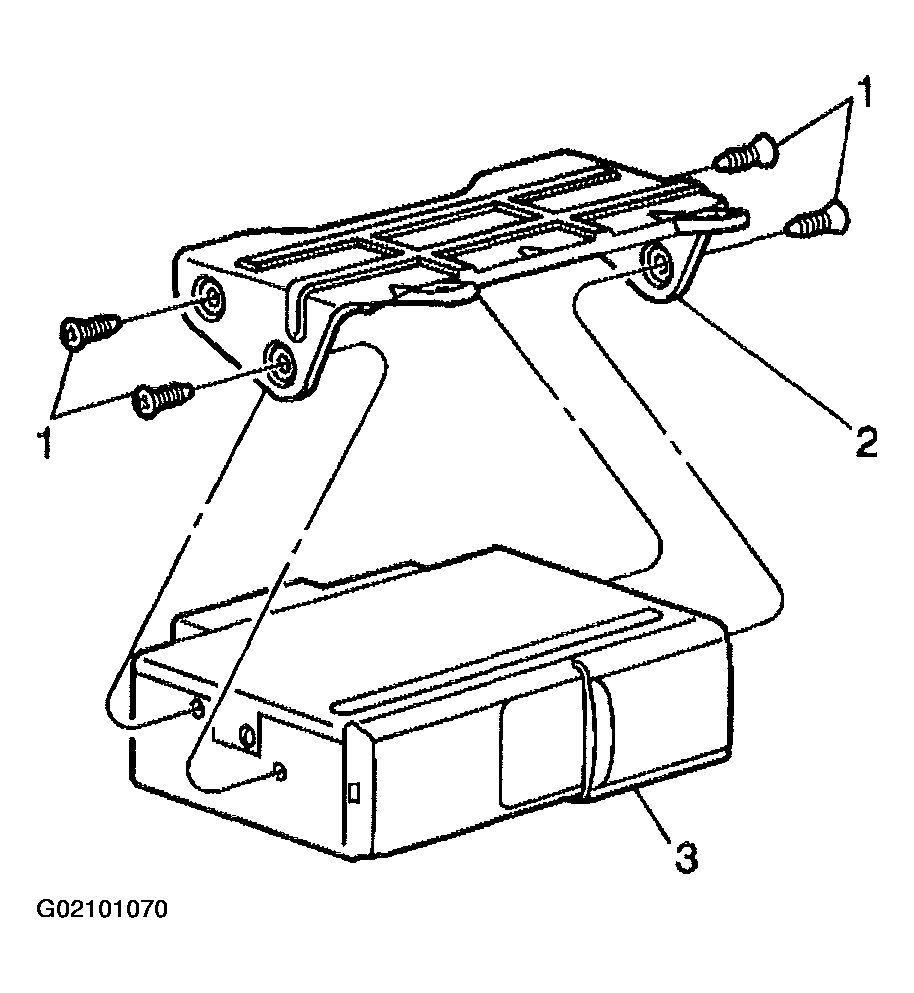

Fig 1: Securing CD Changer Bracket To CD Changer With Fasteners
Courtesy of GENERAL MOTORS CORP.
Partially install the CD changer (2).
Connect the electrical connection (1).
Insert the CD changer and bracket assembly (2) into the instrument panel storage compartment.
Install the 2 fasteners (3).
Tighten

Tighten the fasteners to 2 N.m (17.5 lb in).
Close the instrument panel storage compartment.

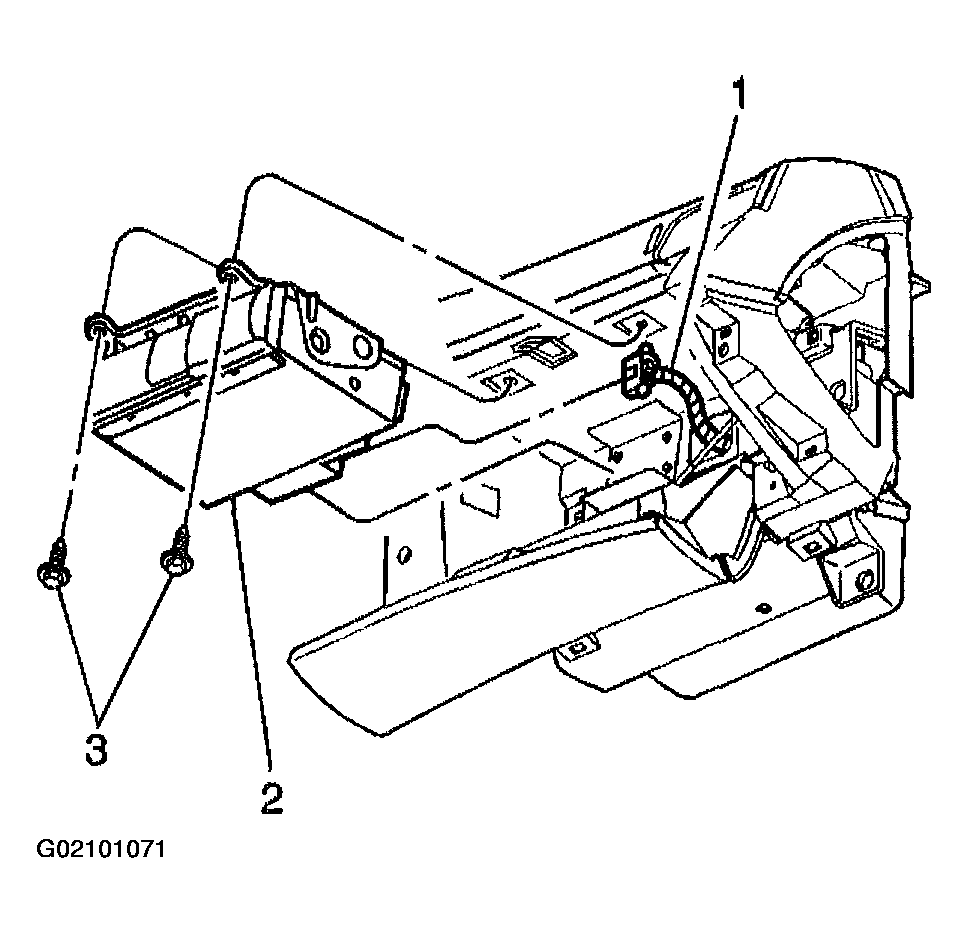

Fig 2: Installing Fasteners To CD Changer Bracket
Courtesy of GENERAL MOTORS CORP.
