Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the RIM module (1) to the mounting bracket.
  2. Push the RIM (1) into the mounting bracket until an audible click is heard indicating the locking tabs are fully engaged.
  3. Connect the RIM (1) electrical connectors.

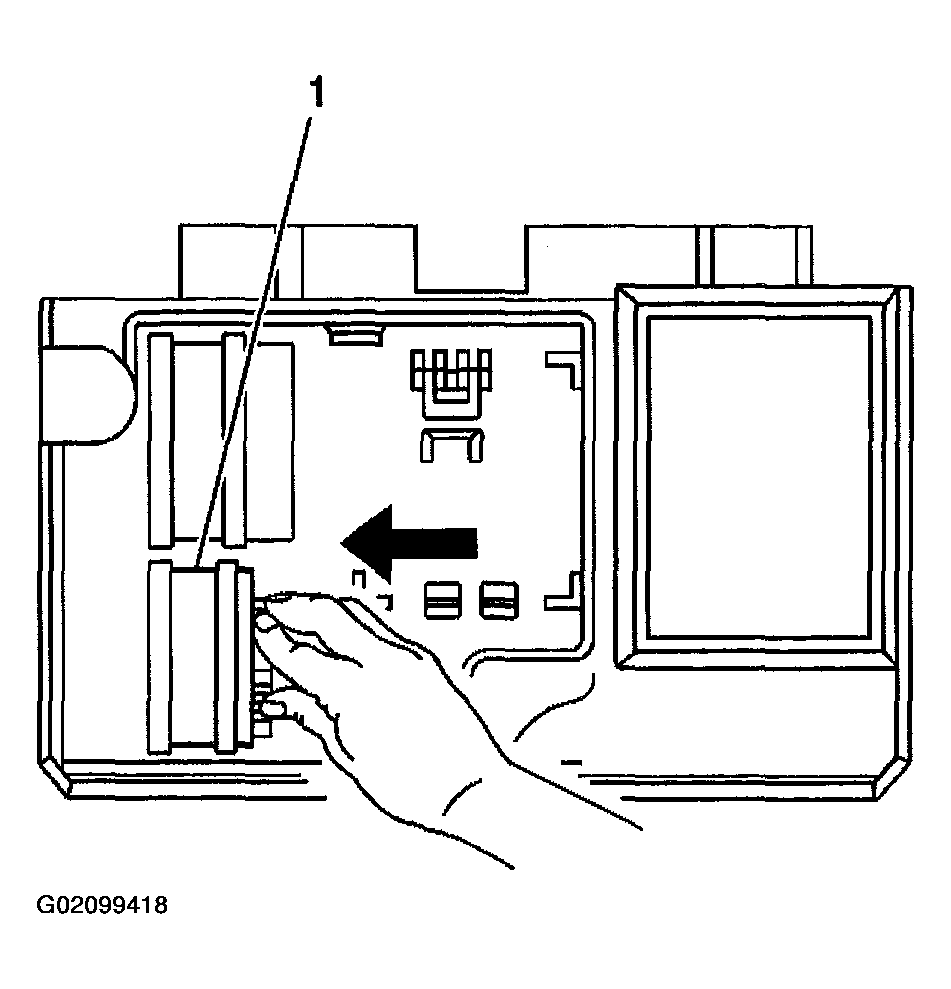

    Fig 1: Installing RIM Module To Mounting Bracket
    G02099418Courtesy of GENERAL MOTORS CORP.
  4. Install the mounting bracket (1) to the vehicle body.
    NOTE: Refer to FASTENER NOTICE
  5. Install the mounting bracket fasteners (2).

    Tighten

    Tighten the fasteners (2) to 9 N.m (80 lb in).

  6. Install the rear compartment trim. Refer to COMPARTMENT FRONT TRIM PANEL REPLACEMENT - REAR
  7. Program the body control module and restore the personalization settings. Refer to BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION (IPM)  or BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION (DIM)  .
  8. Restore the drivers personalization settings. Refer to DRIVER PERSONALIZATION

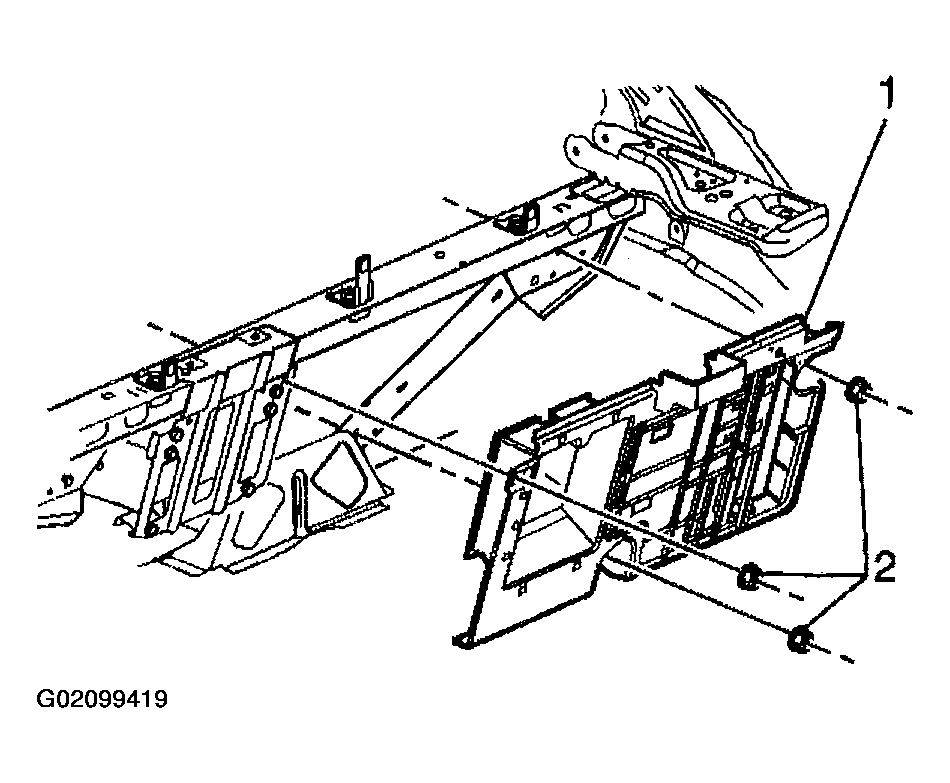

    Fig 2: Installing Mounting Bracket Fasteners
    G02099419Courtesy of GENERAL MOTORS CORP.
