WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

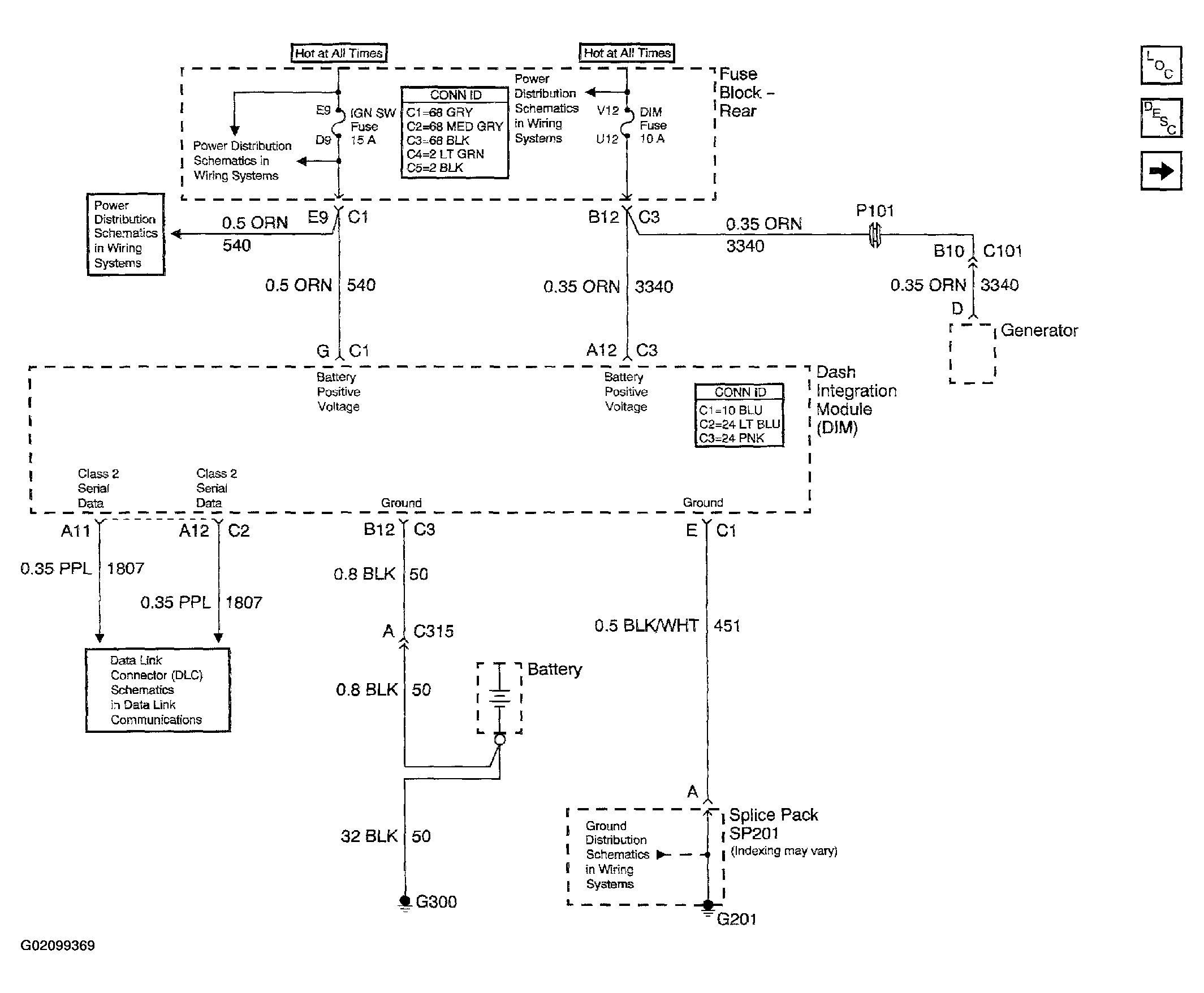

Fig 1: Body Control System Schematics - Dash Integration Module - Power, Ground And Serial Data
