Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control module (1) on the mounting bracket (4).
    NOTE: Refer to FASTENER NOTICE
  2. Install the fasteners (3) which retain the bracket to the module.

    Tighten

    Tighten the fasteners to 7.5 N.m (66 lb in).

    Fig 1: Installing Cruise Control Module On Mounting Bracket
    G02100592Courtesy of GENERAL MOTORS CORP.
  3. Install the cruise control module assembly (2) to the body.
  4. Install the 2 nuts (3) and the bolt (1).

    Tighten

    Tighten the nuts and the bolt to 9 N.m (80 lb in).

  5. Connect the electrical connector to the cruise control module (1).

    Important:  The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to CRUISE CONTROL DESCRIPTION AND OPERATION  for the complete operational details.

  6. Install the cruise control cable. Refer to CRUISE CONTROL CABLE REPLACEMENT (BASE, DHS, DTS)  or CRUISE CONTROL CABLE REPLACEMENT (V4U)  .

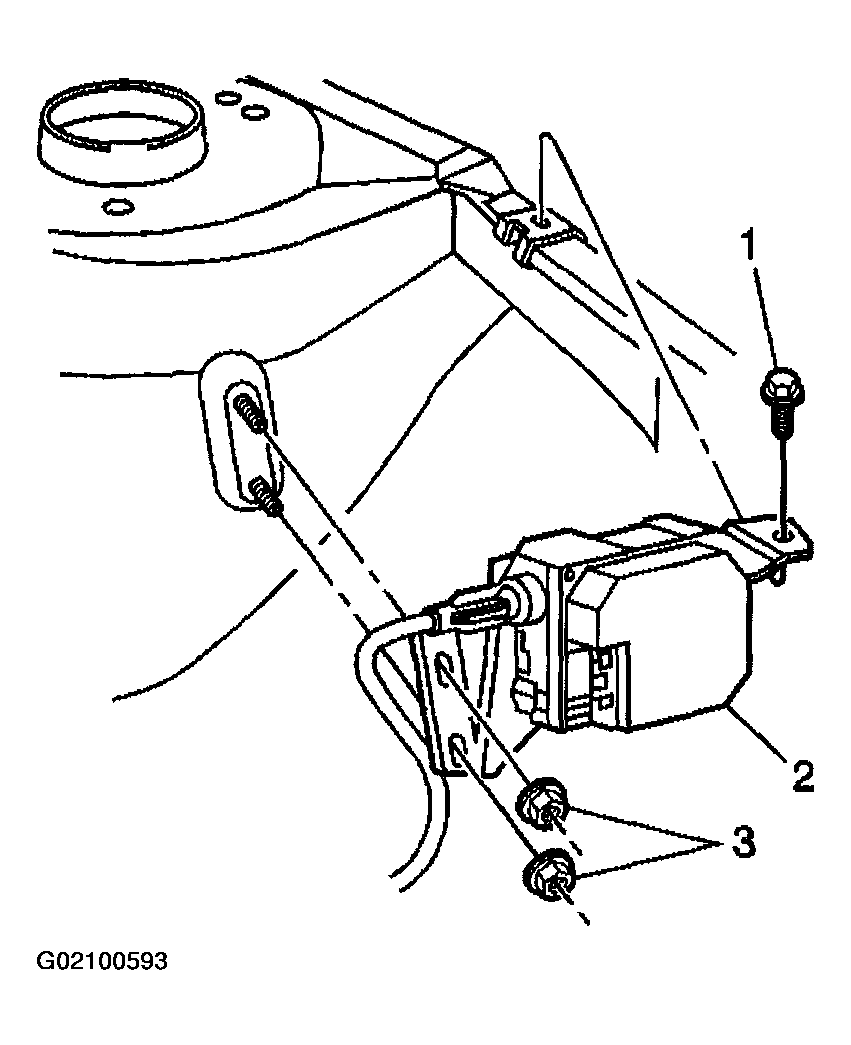

    Fig 2: Installing Nuts And Bolts From Cruise Control Module Assembly
    G02100593Courtesy of GENERAL MOTORS CORP.
