Removal Procedure

  1. Remove the power steering pump. Refer to POWER STEERING PUMP REPLACEMENT   .
  2. Install J 25034-C  to the power steering pump pulley.

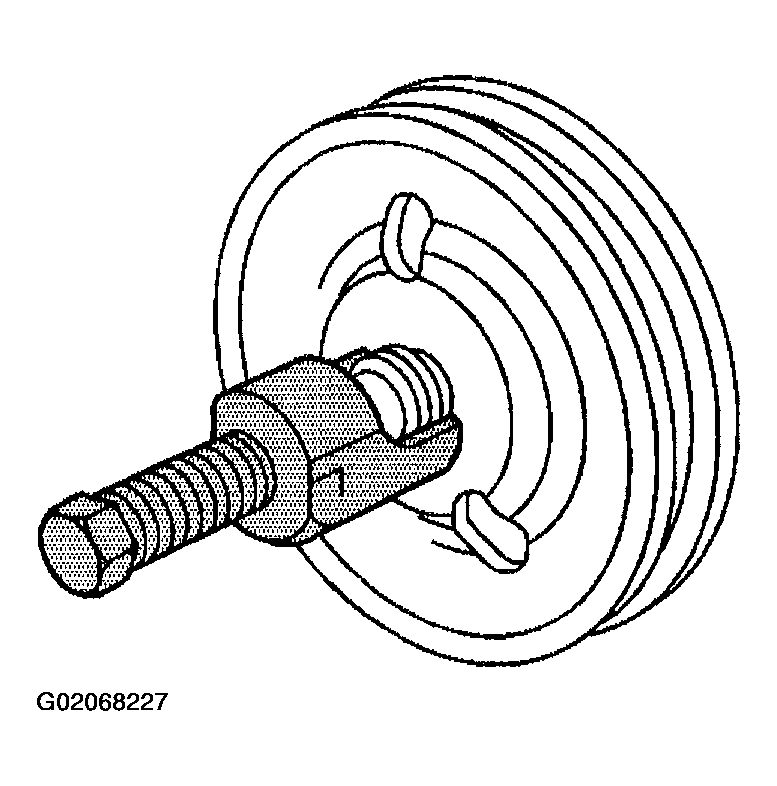

    Fig 1: View Of J 25034-C On Power Steering Pump Pulley
    G02068227Courtesy of GENERAL MOTORS CORP.
  3. Using J 25034-C  remove the power steering pump pulley.
