Installation Procedure

Reassemble the lower control valve body assembly.
Install the lower valve assembly (consisting of the channel plate, control valve body, accumulator assembly, and the wire harness extension) to the transaxle case as a single unit.
Place the lower valve assembly over the forward support studs.
Hand start the bolts and nuts to the lower valve assembly.

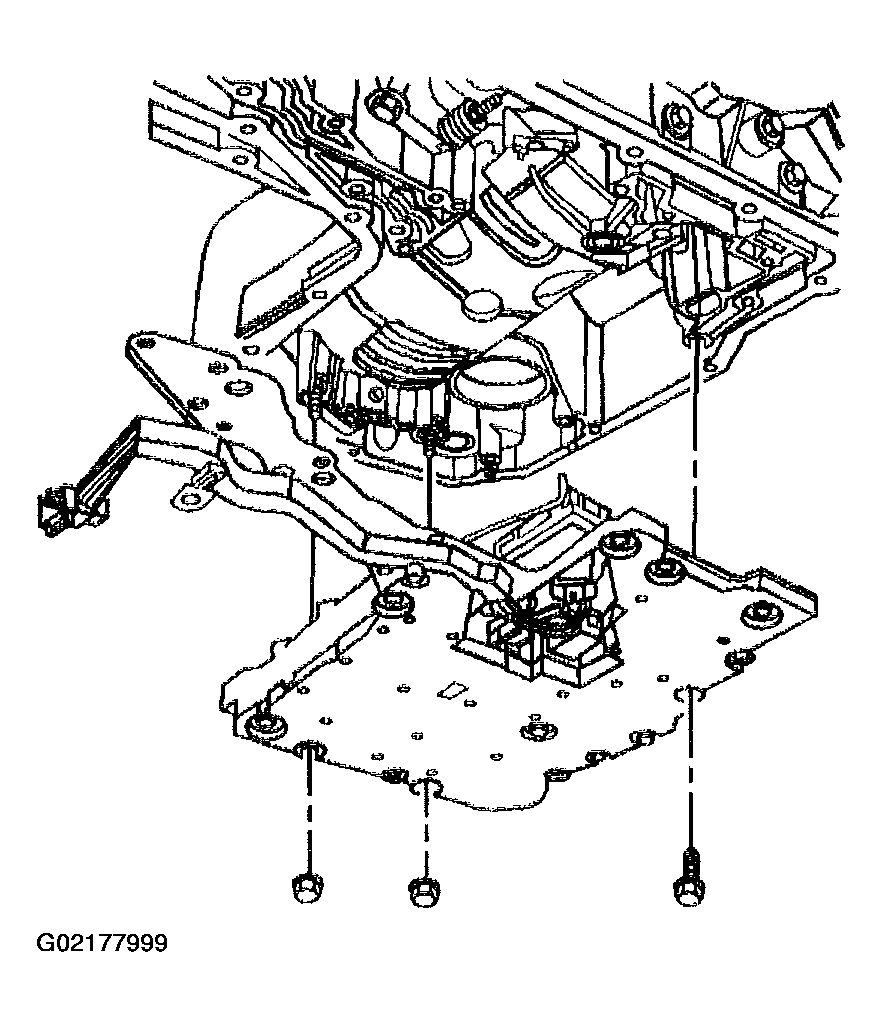

Fig 1: Installing Lower Valve Assembly & Bolts To Transaxle Case
Courtesy of GENERAL MOTORS CORP.
Install the oil transfer plate.
Position the wire harness extension retaining clip over the appropriate bolt hole in the oil transfer plate.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Hand start the bolts to the oil transfer plate.
Tighten

Tighten the lower valve assembly and the oil transfer plate bolts and nuts to 11 N.m (97 lb in).

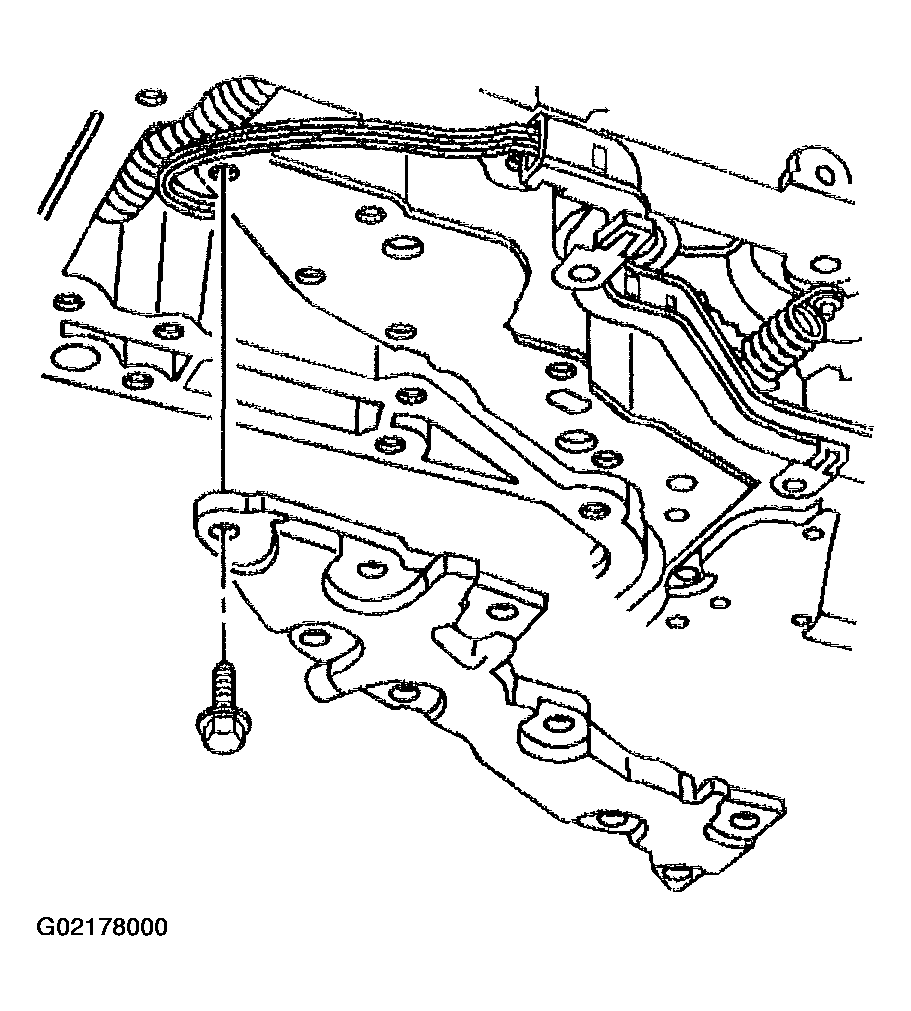

Fig 2: Installing Oil Transfer Plate & Bolts
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do not reuse retainer (2), it must be replaced.
Insert the manual valve link (3) into the inside detent lever (1).
Clip the manual valve link retainer (2) onto the manual valve link (3).

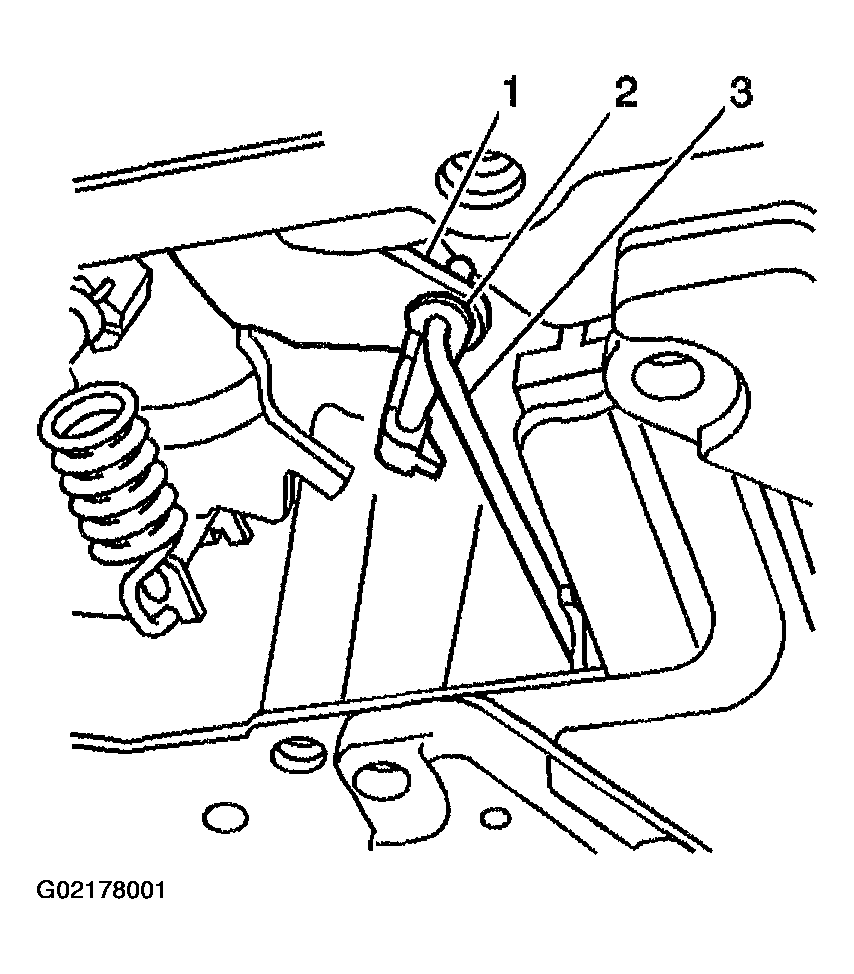

Fig 3: Inserting Manual Valve Link Into Inside Detent Lever
Courtesy of GENERAL MOTORS CORP.
Connect the wire harness extension to the wire harness assembly.

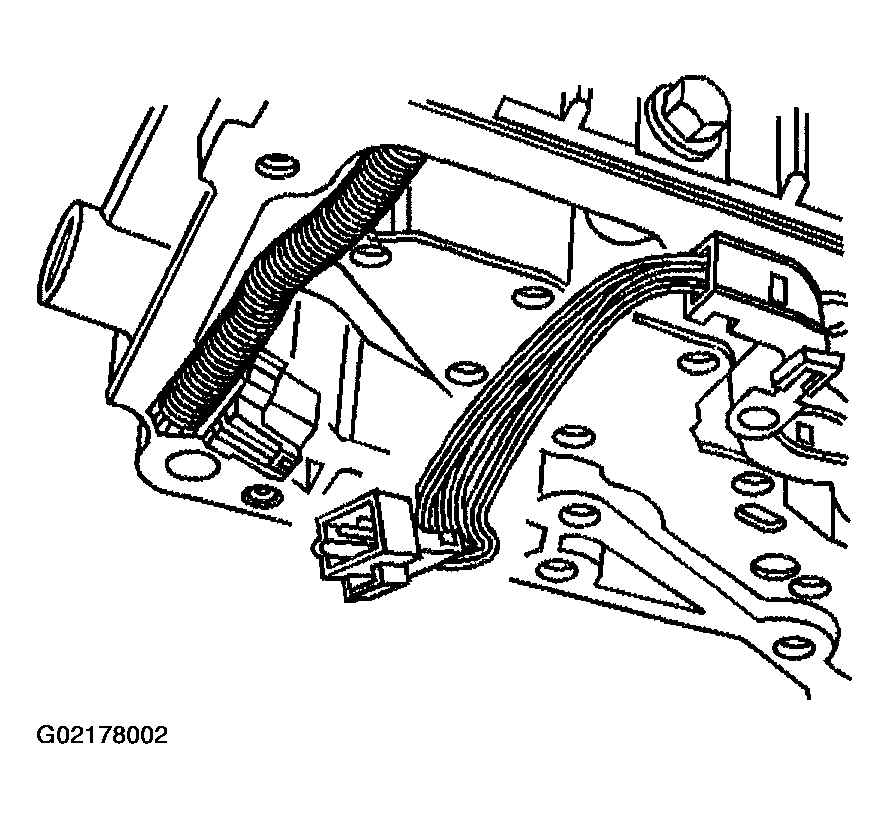

Fig 4: Connecting Wire Harness Extension To Wire Harness Assembly
Courtesy of GENERAL MOTORS CORP.
Install the bottom pan and seal, the scavenger screens, and the lip seals. Refer to SCAVENGE SCREENS AND SEALS REPLACEMENT .
