Automatic Transmission Inline 20-Way Connector End View

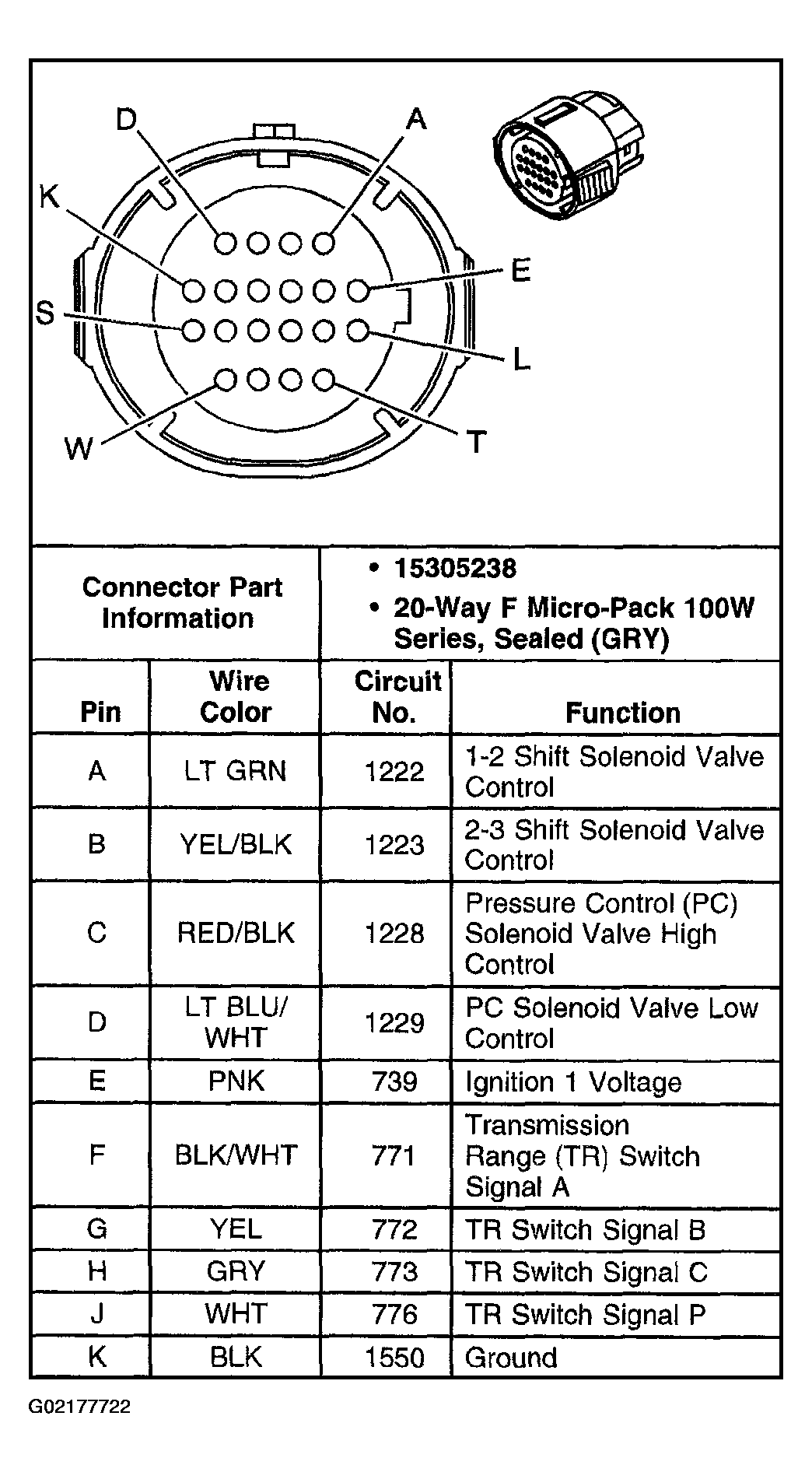

Fig 1: Engine Side Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

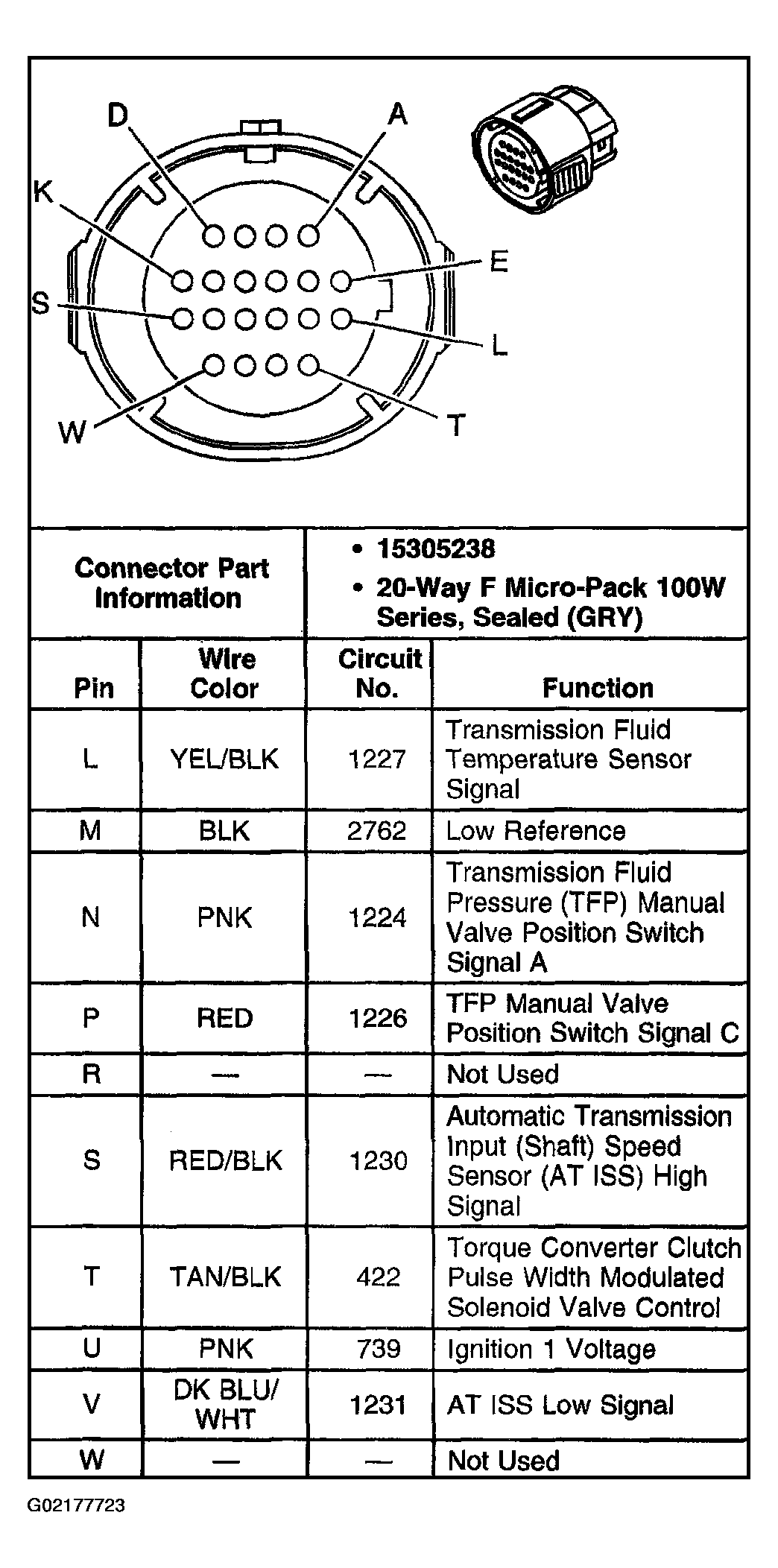

Fig 2: Engine Side Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

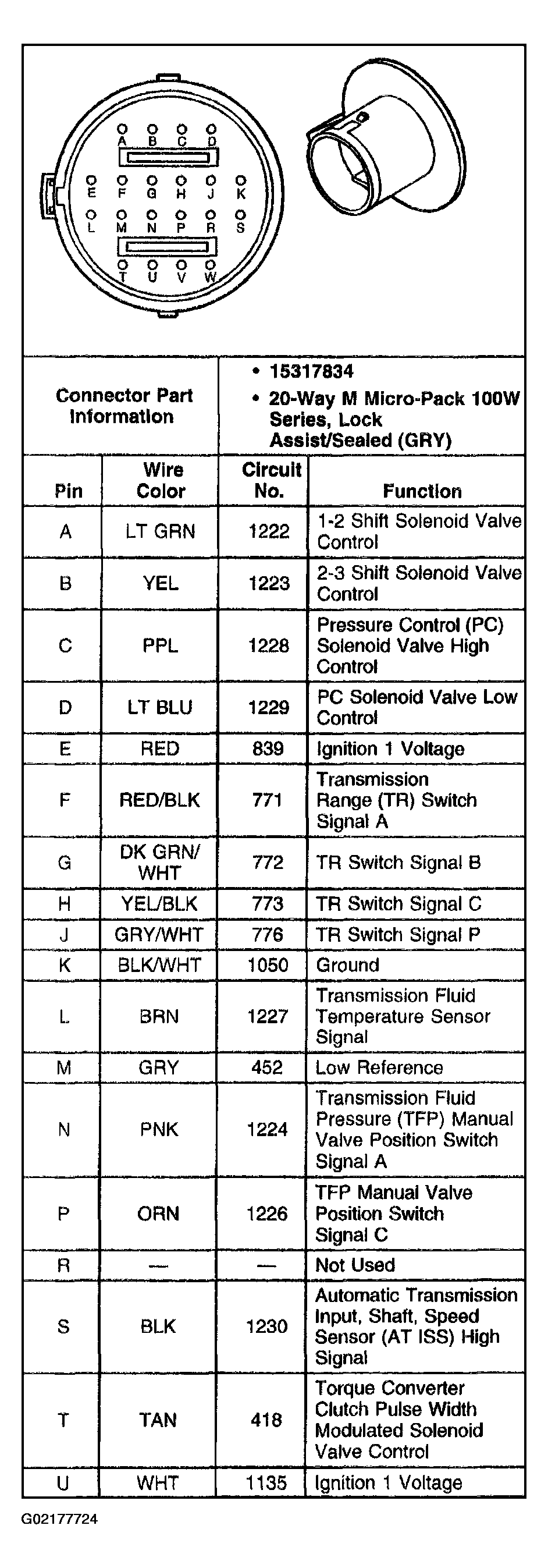

Fig 3: Transmission Side Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

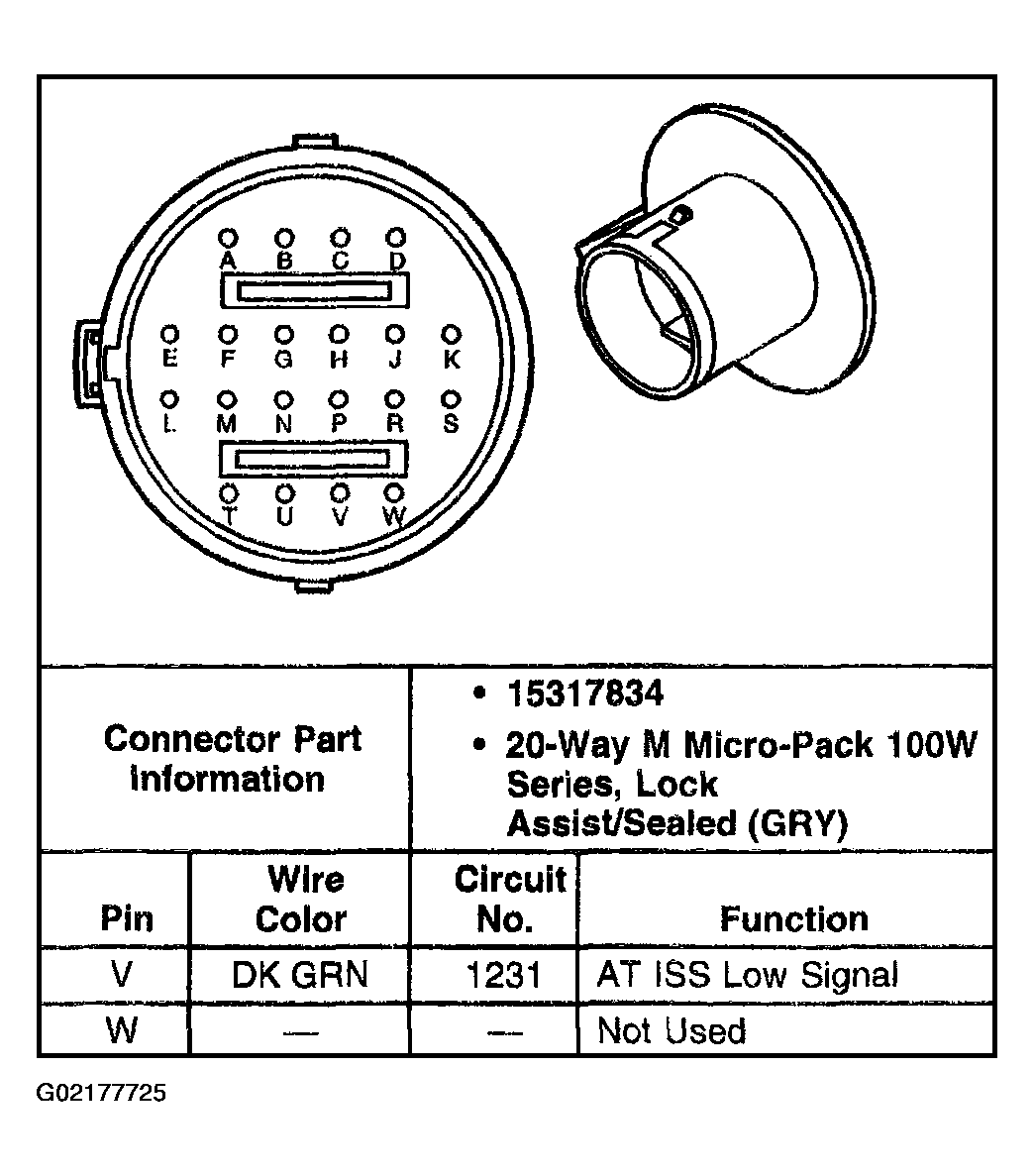

Fig 4: Transmission Side Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
