Diagnostic System Check - Automatic Transmission Shift Lock Control

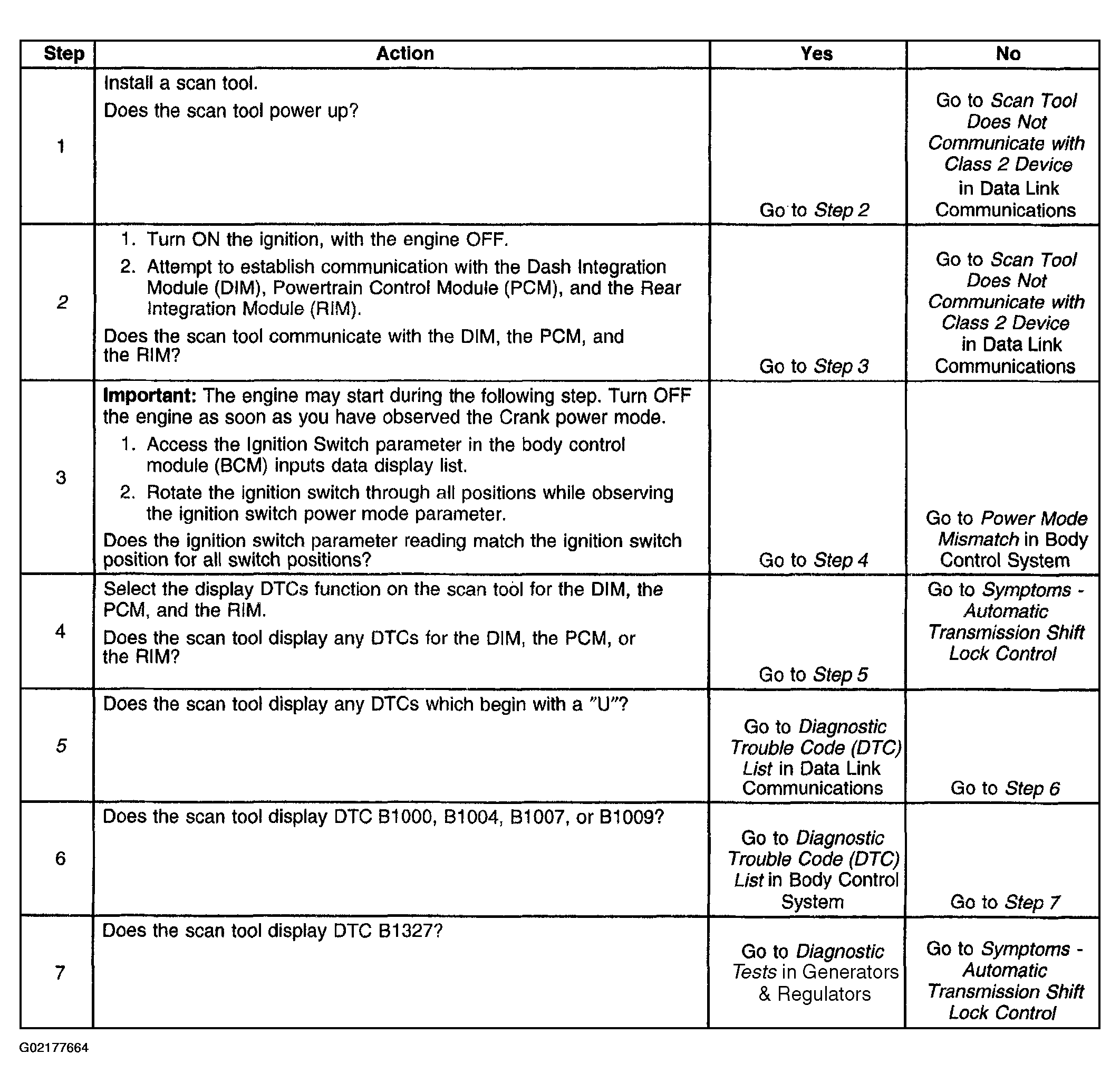

Fig 1: Diagnostic System Check - Automatic Transmission Shift Lock Control
G02177664Courtesy of GENERAL MOTORS CORP.
