Remote Control Door Lock Receiver (RCDLR)

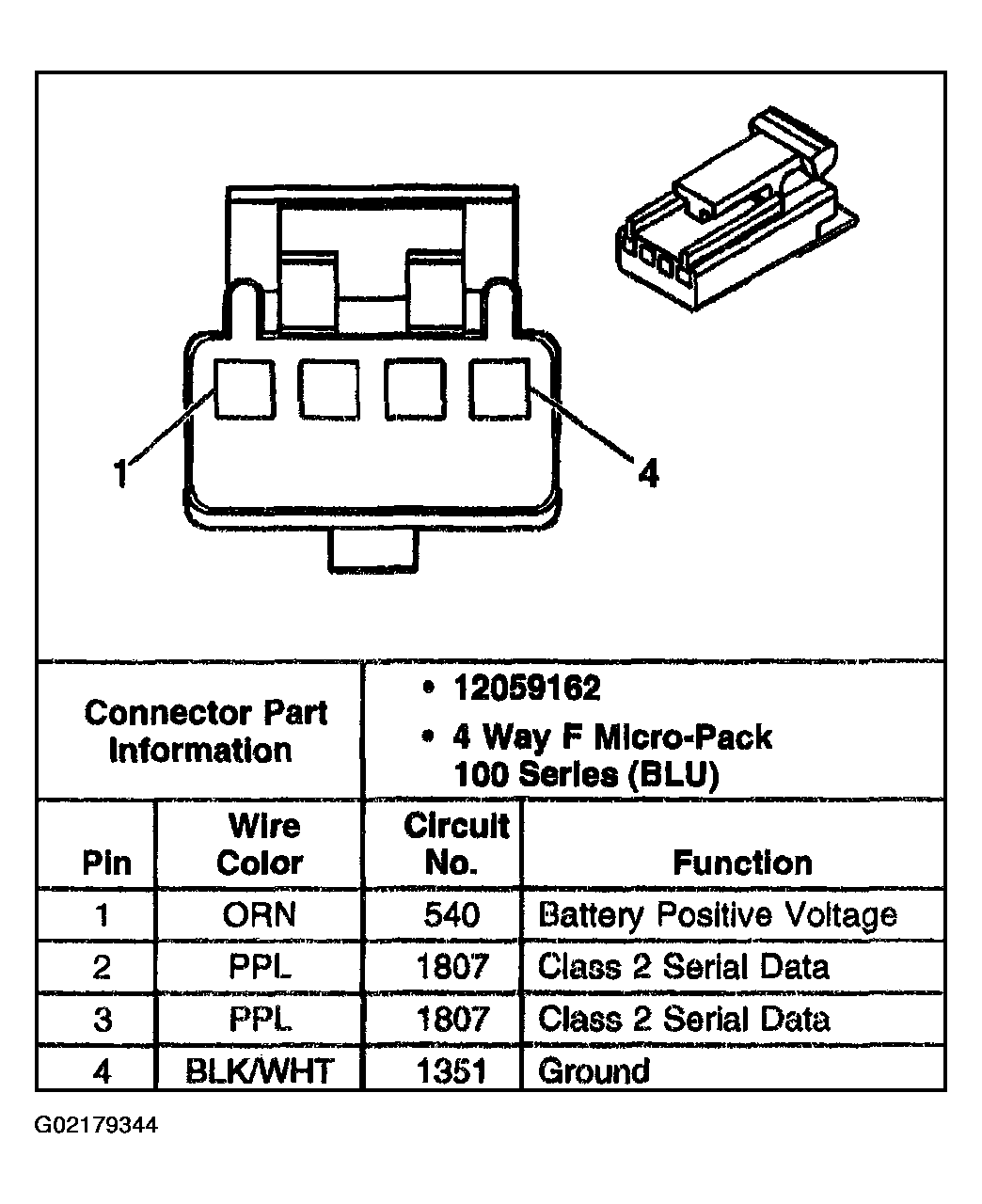

Fig 1: Remote Control Door Lock Receiver Connector End View (RCDLR)
G02179344Courtesy of GENERAL MOTORS CORP.
