Dash Integration Module (DIM)

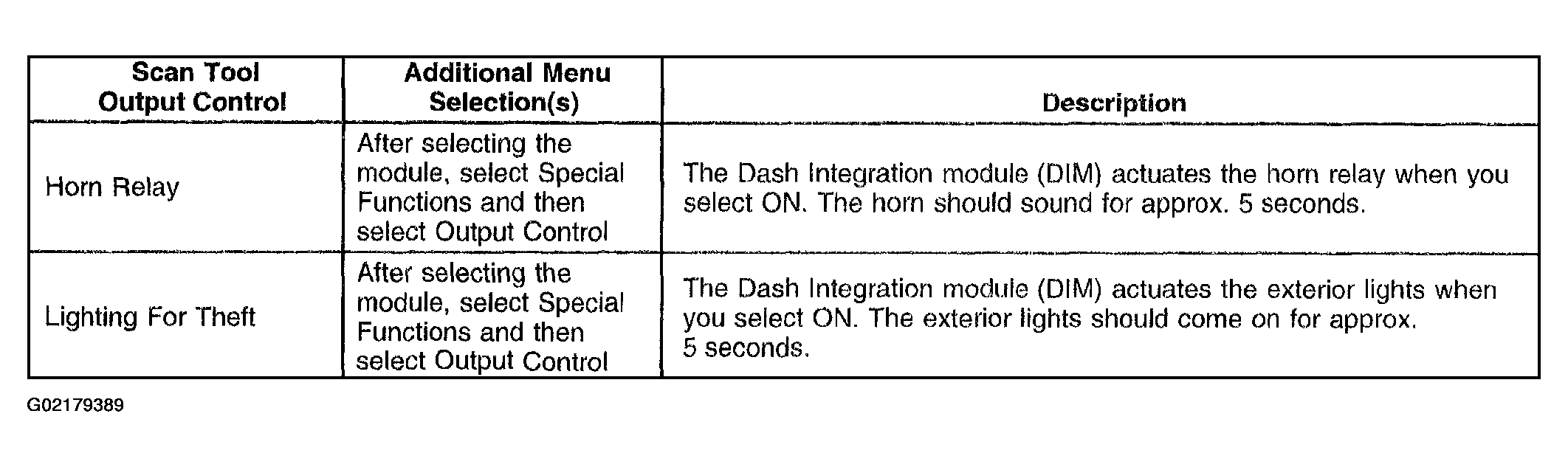

Fig 1: Scan Tool Output Controls - Dash Integration Module (DIM)

G02179389

Courtesy of GENERAL MOTORS CORP.
