Dash Integration Module (DIM)

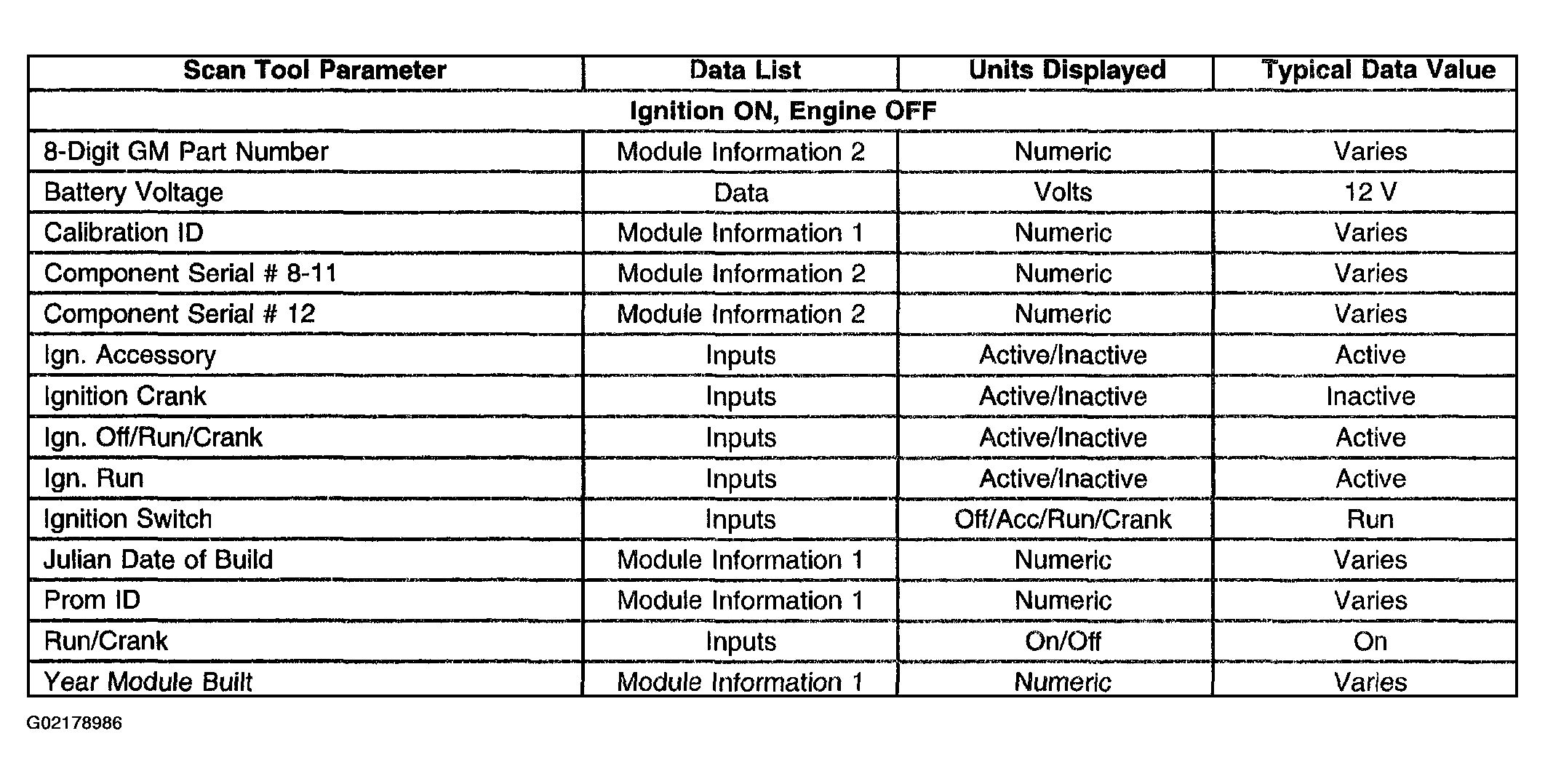

Fig 1: Dash Integration Module (DIM) Scan Tool Data List
G02178986Courtesy of GENERAL MOTORS CORP.
