Body Control System Schematics (DIM Inputs/Outputs (2 of 2)

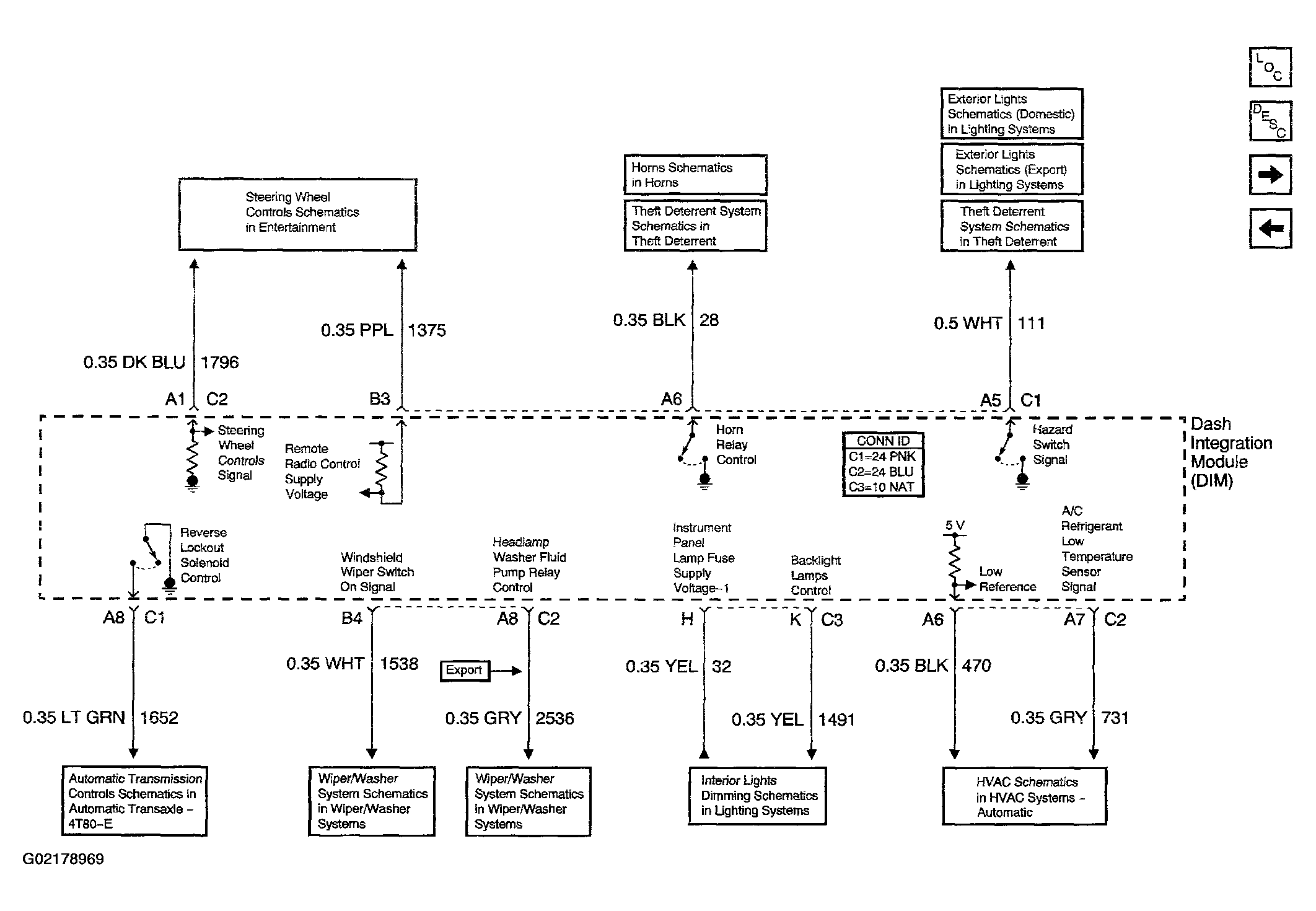

Fig 1: Body Control System Schematics - DIM Inputs/Outputs (2 Of 2)
G02178969Courtesy of GENERAL MOTORS CORP.
