Body Control System Schematics (IPM Inputs/Outputs (2 of 2))

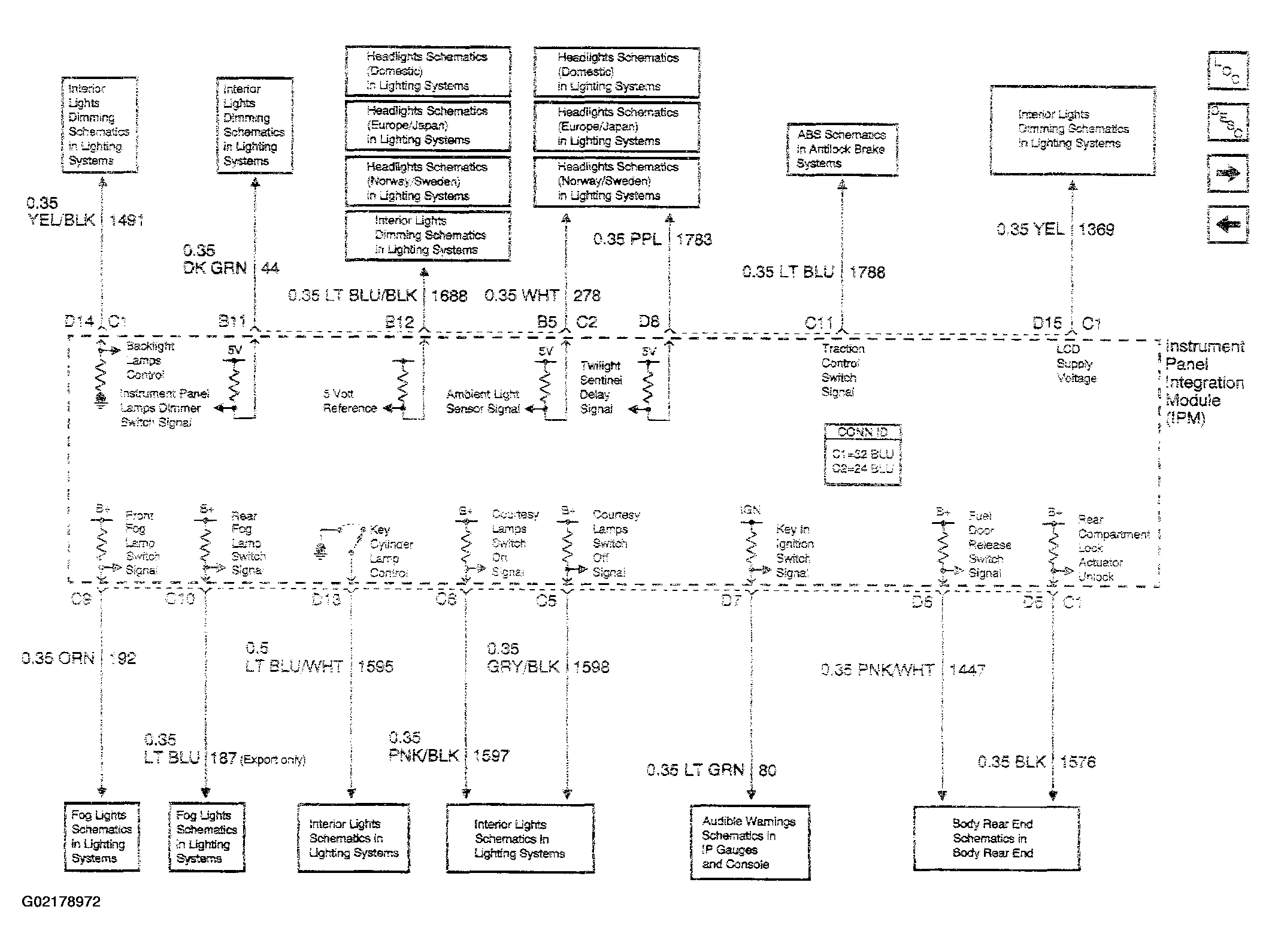

Fig 1: Body Control System Schematics - IPM Inputs/Outputs (2 Of 2)
G02178972Courtesy of GENERAL MOTORS CORP.
