Dash Integration Module (DIM)

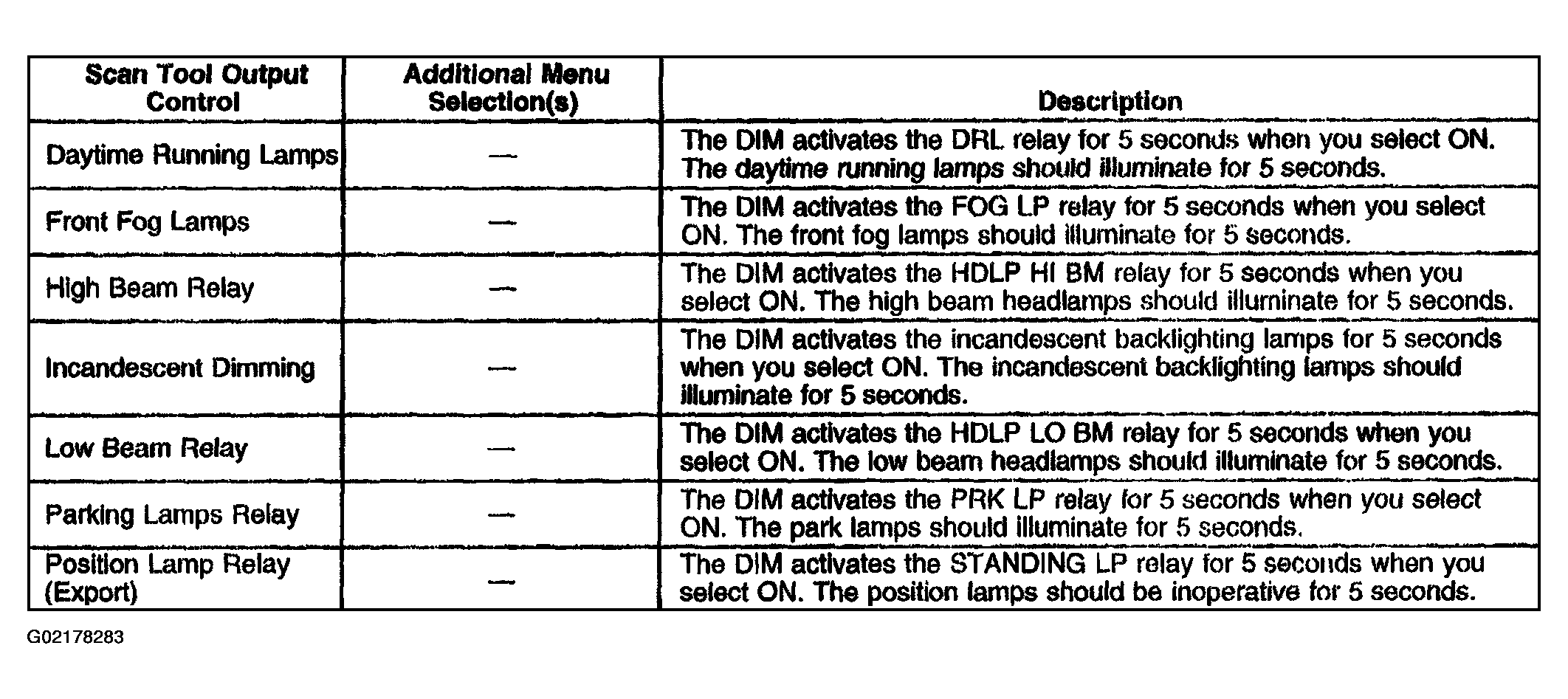

Fig 1: Dash Integration Module (DIM)

G02178283

Courtesy of GENERAL MOTORS CORP.
