Navigation System Connector End Views

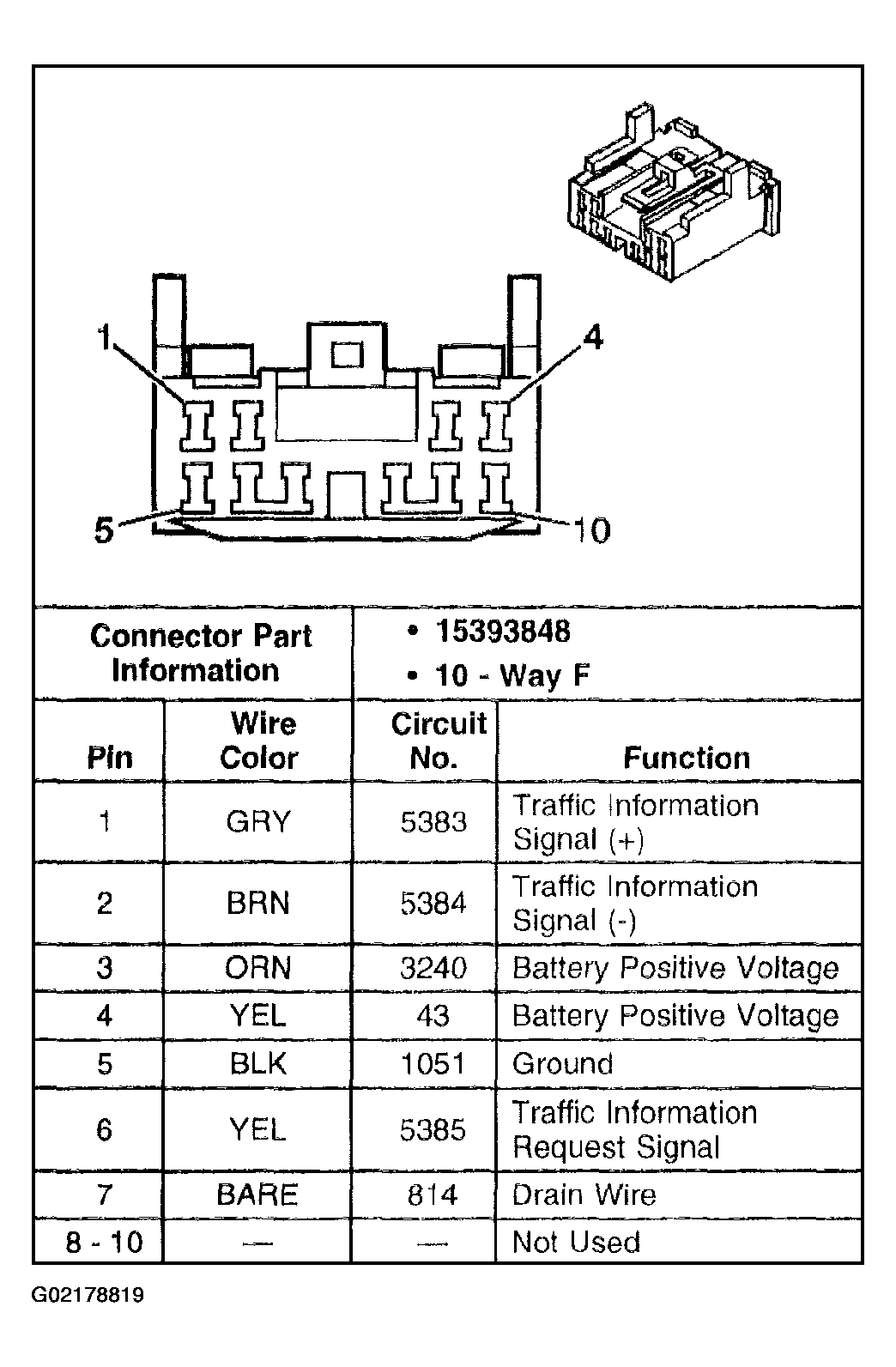

Fig 1: Traffic Information Receiver (VICS) Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
